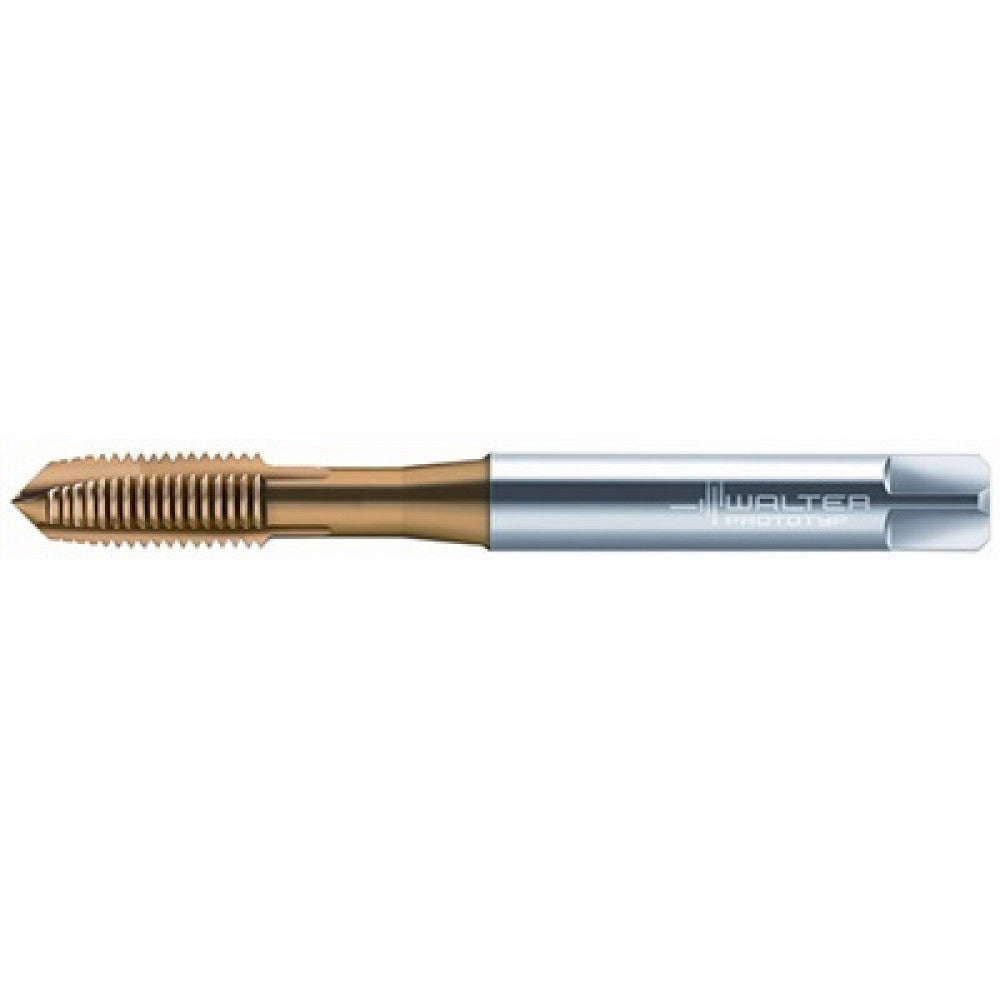

M16 TiN Spiral Point Tap Walter Perform TC216-M16-L0-WY80AA

–– HSS-E Spiral Point or Gun Nose machine tap –– TC216: For through holes up to 3.5 x DN –– ISO2/6H tolerances –– TIN-coated THE ADVANTAGES –– TIN coating: Long tool life –– Flexibility thanks to a wide range of uses in a variety of materials –– High process reliability –– Most cost effective solution for small to medium batches THE APPLICATION –– Through-hole threads –– Dimension range: M3-M20 –– Primary application: • ISO-P: 300-1000 N/mm2 • ISO-M: < 800 N/mm2 • ISO-K: GJS (GGG) • ISO-N: Aluminium wrought alloy, AlSi < 4% silicon*
