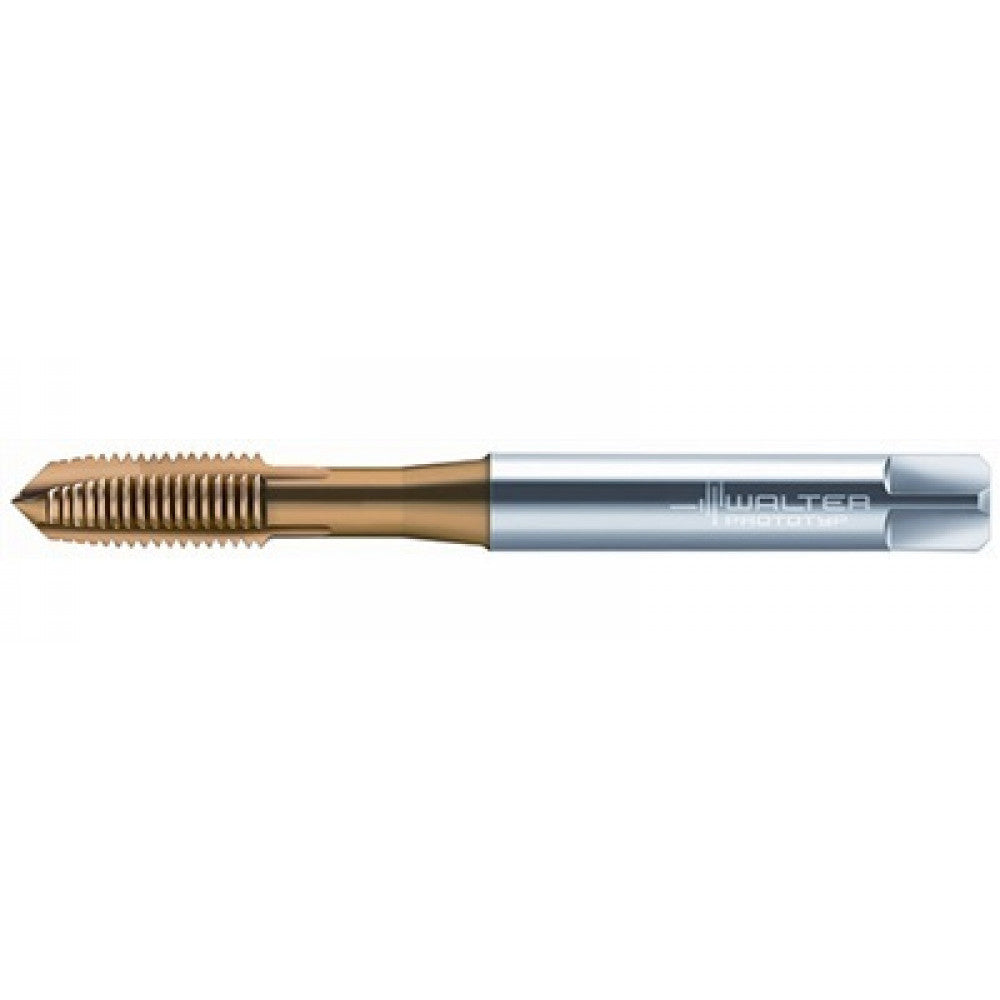

M3 TiN Spiral Point Tap Walter Perform TC216-M3-C0-WY80AA

–– HSS-E Spiral Point or Gun Nose machine tap

–– TC216: For through holes up to 3.5 x DN

–– ISO2/6H tolerances

–– TIN-coated

THE ADVANTAGES

–– TIN coating: Long tool life

–– Flexibility thanks to a wide range of uses in a

variety of materials

–– High process reliability

–– Most cost effective solution for small to

medium batches

THE APPLICATION

–– Through-hole threads

–– Dimension range: M3-M20

–– Primary application:


• ISO-P: 300-1000 N/mm2


• ISO-M: < 800 N/mm2


• ISO-K: GJS (GGG)


• ISO-N: Aluminium wrought alloy,

AlSi < 4% silicon*
