Description

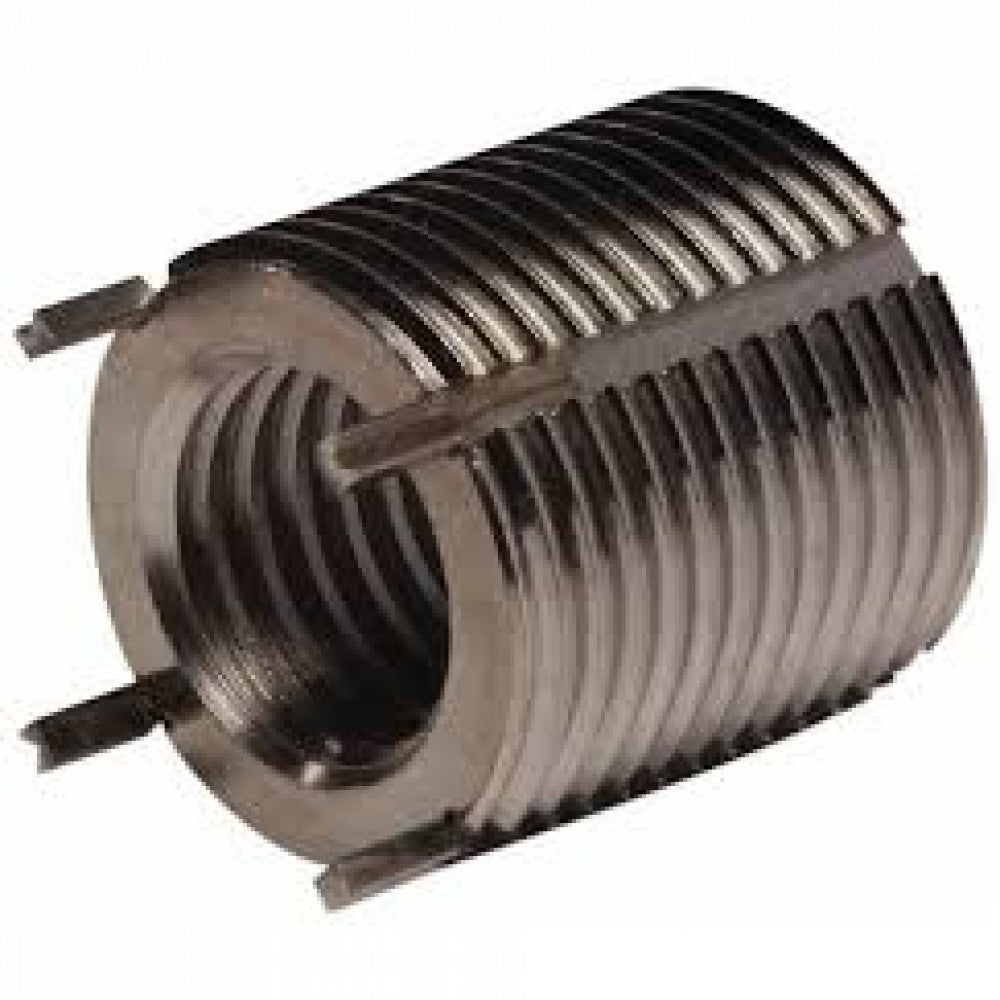

This solid Stainless Steel, one piece insert is used to replace damaged, stripped or worn threads.
Each Recoil Keysert features either 2 or 4 locking keys, which provide a positive mechanical lock preventing rotation or torsion.
Reliable in the toughest conditions - including heavy wear and high vibration situations.
Easy to remove and install with standard drills and taps. Suitable for use in a wide range of materials, including aluminium and magnesium.
Note: Recoil Keyserts are not recommended for use in brittle materials like cast iron or plastic.
No special skills required. Installation procedures can be learned in minutes.
Internal Thread M8 x 1.25
External Thread M12-1.25
Drill size 10.8mm
Insert length 12.0mm
Each Recoil Keysert features either 2 or 4 locking keys, which provide a positive mechanical lock preventing rotation or torsion.
Reliable in the toughest conditions - including heavy wear and high vibration situations.
Easy to remove and install with standard drills and taps. Suitable for use in a wide range of materials, including aluminium and magnesium.
Note: Recoil Keyserts are not recommended for use in brittle materials like cast iron or plastic.
No special skills required. Installation procedures can be learned in minutes.
Internal Thread M8 x 1.25
External Thread M12-1.25
Drill size 10.8mm
Insert length 12.0mm
