Description
Capable of detecting a variety embedded objects such as; metal, wood, plastic and shielded electrical wire up to 180mm deep
Selectable base material modes allow for increased versatility in dry concrete, wet concrete, wall partitions (wood or plaster board) and hollow block

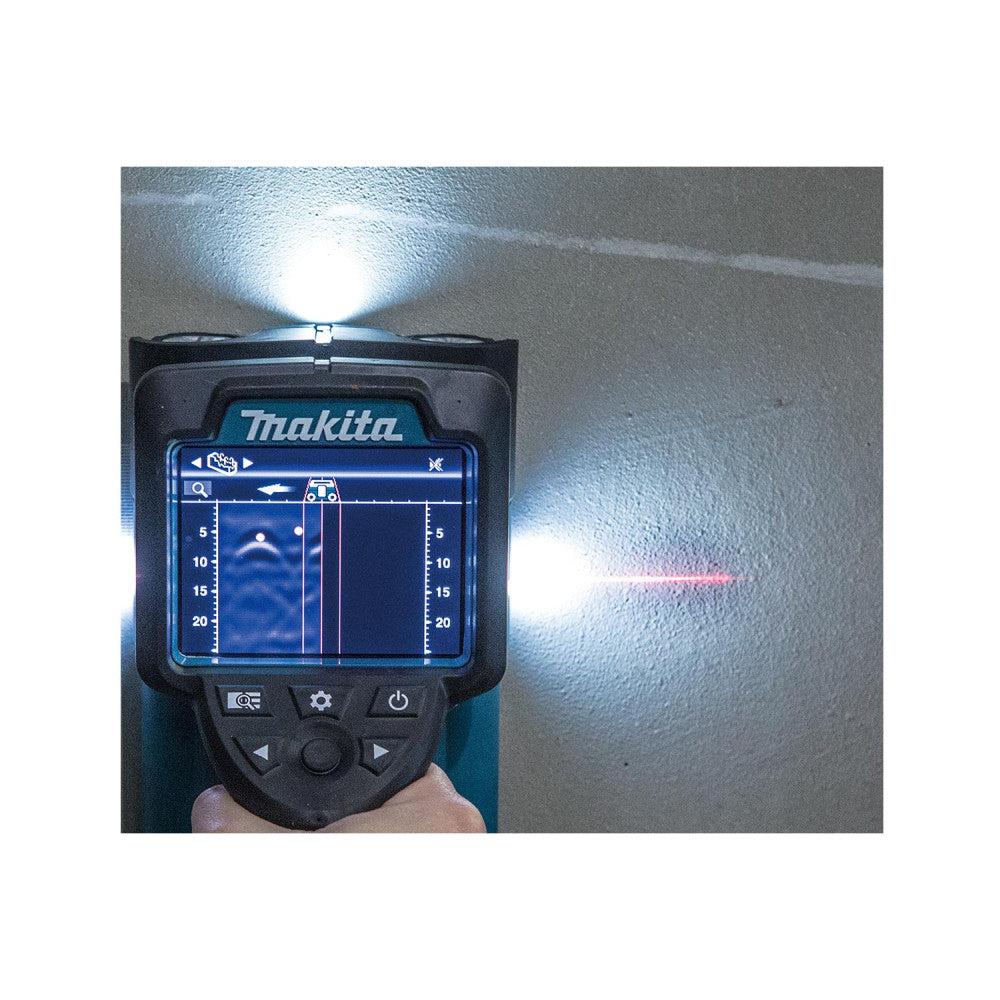

Simplified user interface displays center, edge position, relative width and depth of embedded objects

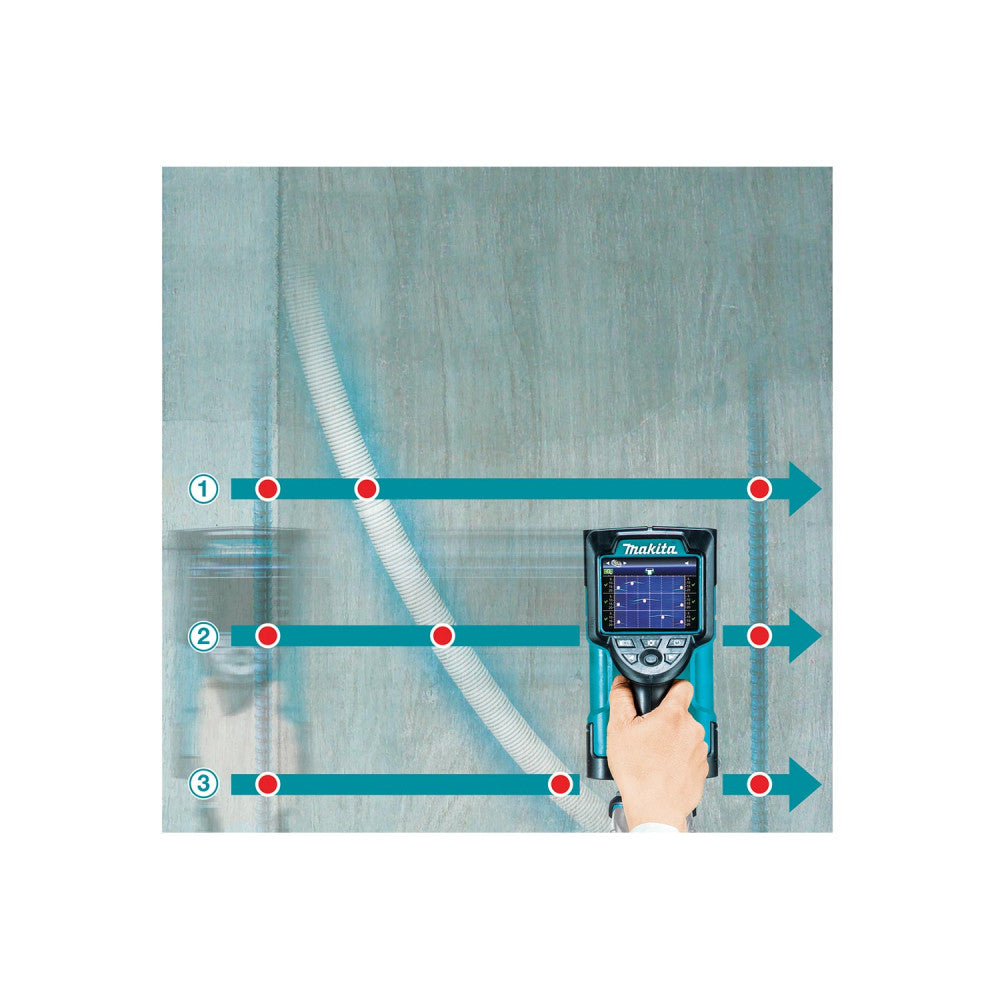

Multi-detection mode allows for scanning in up to three parallel surface positions; ideal for detecting objects running diagonally
Dust and water resistance with IP54 rating for increased durability
Specifications
Max Detection Depth
- Metal 180mm
- Plastic 120mm
- Cable 120mm
- Wood 25mm
Detection Accuracy ±5mm
Minimun Detection Distance 40mm
Operating Temp -10 to 40°C
Overall dimensions 288 x 118 x 108mm
Net weight (skin) 1.0kg
Voltage 18V / 14.4V
LXT battery compatibility 1.5Ah 3Ah 4Ah 5Ah 6Ah
Included accessories

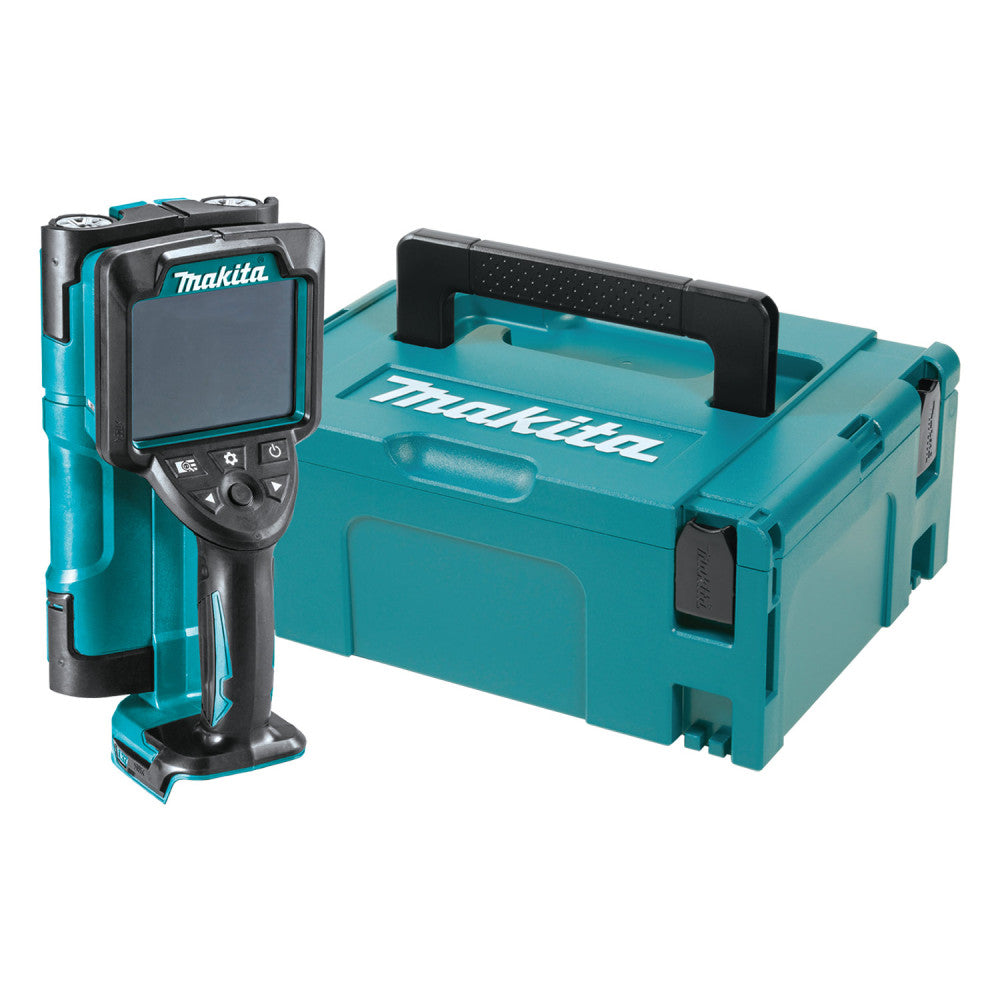

Makpac Case #2
