Description
High power in a compact design with 630Nm nut busting torque
40Vmax XGT battery continues to perform in continuous heavy duty application

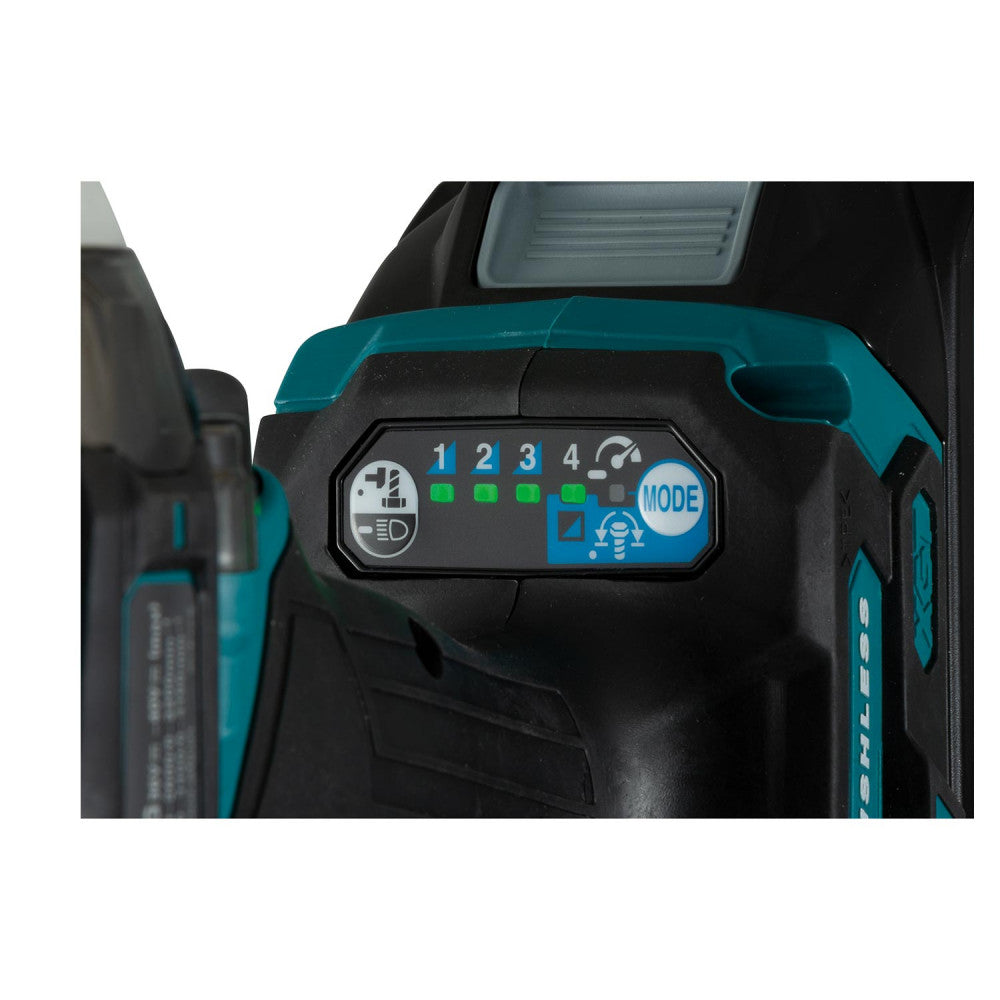

Optimised application selector with 6 modes adapting speed and impacts for each task
Full speed mode shortens the distance of trigger travel required to hit full speed
4 Stage power selection for optimum rpm and fastening torque
1x 2.5Ah battery (BL4025), rapid charger (DC40RA) and Makpac 3
Specifications
Capacities 1/2" Square C-Ring 12.7mm
- Standard bolt M10 - M20 (3/8 - 3/4")
- High tensile bolt M10 - M16 (3/8 - 5/8")
Max fastening torque 350Nm
Nut-busting torque 630Nm
Impacts per minute Max: 0-4,000ipm
- Hi 0-3,400ipm
- Med 0-2,600ipm
- Lo 0-1,800ipm
No Load Speed Max: 0-3,200rpm
- Hi 0-2,600rpm
- Med 0-1,800rpm
- Lo 0-1,000rpm
Overall dimensions 144mm
Net weight (skin) 1.2kg
Sound Level 110dB(A)
Voltage 40V
XGT battery compatibility 2Ah 4Ah 5Ah
Included accessories
Belt hook (346317-0), Screw M4X12 (266622-8)
Optional accessories
(BL4020) 40Vmax XGT 2.0Ah Battery
(BL4025) 40Vmax XGT 2.5Ah Battery
(BL4040) 40Vmax XGT 4.0Ah Battery
(BL4050F) 40Vmax XGT 5.0Ah Battery
(BL4080F) 40Vmax XGT 5.0Ah Battery
(ADP10) 18V Battery adaptor for 40Vmax XGT chargers
(ADP001G) 40V XGT Battery Charger Adaptor
(DC40RA) 40Vmax XGT Rapid Charger
(DC40RB) 40Vmax XGT Dual port Rapid Charger
40Vmax XGT battery continues to perform in continuous heavy duty application
Optimised application selector with 6 modes adapting speed and impacts for each task
Full speed mode shortens the distance of trigger travel required to hit full speed
4 Stage power selection for optimum rpm and fastening torque
1x 2.5Ah battery (BL4025), rapid charger (DC40RA) and Makpac 3
Specifications
Capacities 1/2" Square C-Ring 12.7mm
- Standard bolt M10 - M20 (3/8 - 3/4")
- High tensile bolt M10 - M16 (3/8 - 5/8")
Max fastening torque 350Nm
Nut-busting torque 630Nm
Impacts per minute Max: 0-4,000ipm
- Hi 0-3,400ipm
- Med 0-2,600ipm
- Lo 0-1,800ipm
No Load Speed Max: 0-3,200rpm
- Hi 0-2,600rpm
- Med 0-1,800rpm
- Lo 0-1,000rpm
Overall dimensions 144mm
Net weight (skin) 1.2kg
Sound Level 110dB(A)
Voltage 40V
XGT battery compatibility 2Ah 4Ah 5Ah
Included accessories
Belt hook (346317-0), Screw M4X12 (266622-8)
Optional accessories
(BL4020) 40Vmax XGT 2.0Ah Battery
(BL4025) 40Vmax XGT 2.5Ah Battery
(BL4040) 40Vmax XGT 4.0Ah Battery
(BL4050F) 40Vmax XGT 5.0Ah Battery
(BL4080F) 40Vmax XGT 5.0Ah Battery
(ADP10) 18V Battery adaptor for 40Vmax XGT chargers
(ADP001G) 40V XGT Battery Charger Adaptor
(DC40RA) 40Vmax XGT Rapid Charger
(DC40RB) 40Vmax XGT Dual port Rapid Charger
