Description
Forward Rail Design maximises work space and provides smooth precise cutting
Shadow line projects cut line onto work material

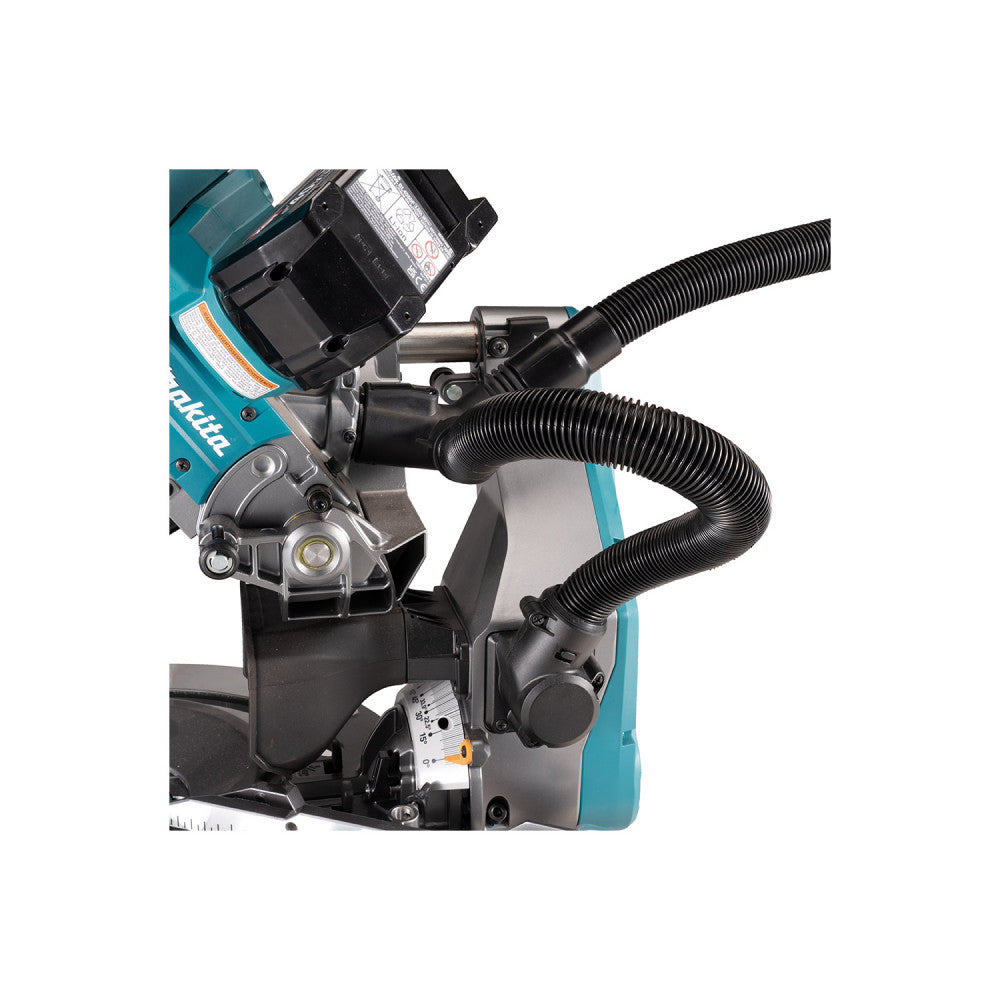

Dual zone dust extraction ports supress dust scattering of wood chips

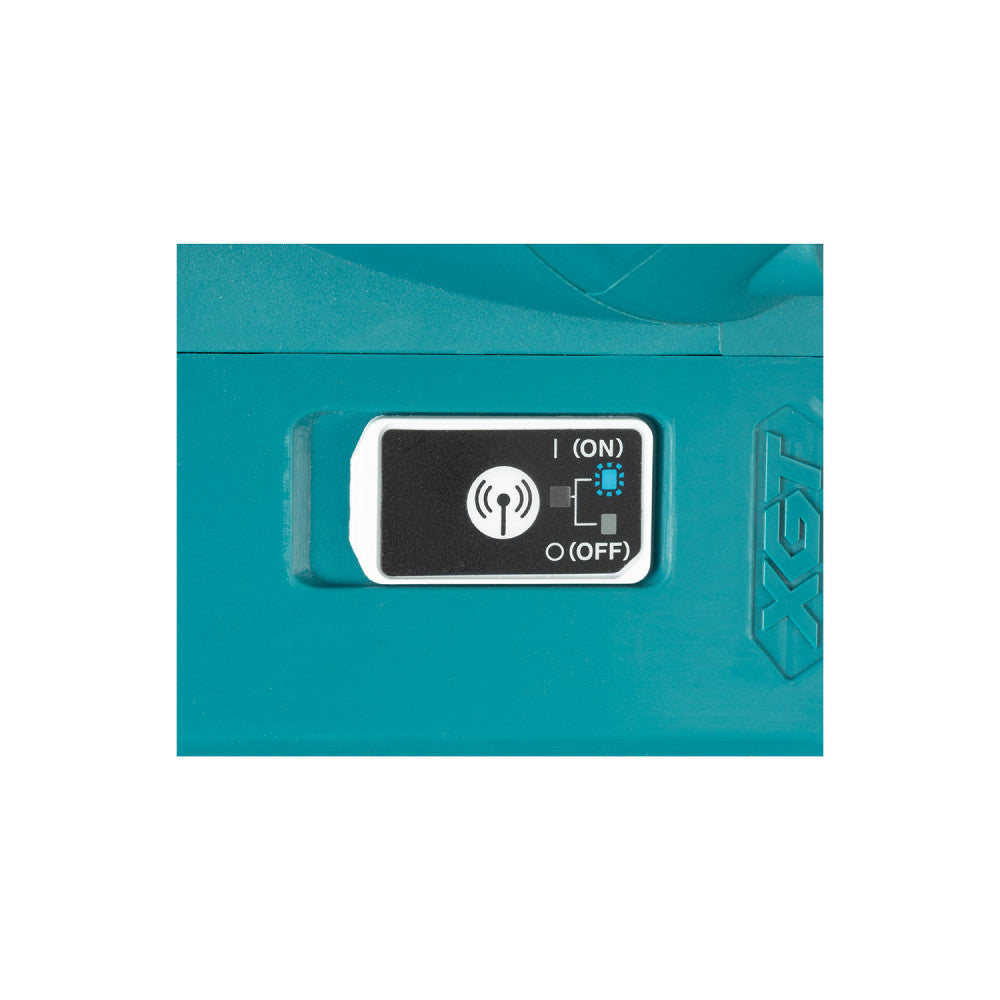

Compatible with AWS* for wireless connectivity with compatible dust extraction
*Requires optional wireless transmitter
Specifications
Blade diameter 260mm (10-1/4")
Max cutting capacities 68 x 310mm
- at 90° 0° Miter: 91 x 279mm
- at 45° 45° Miter, L/R: 91 x 197mm

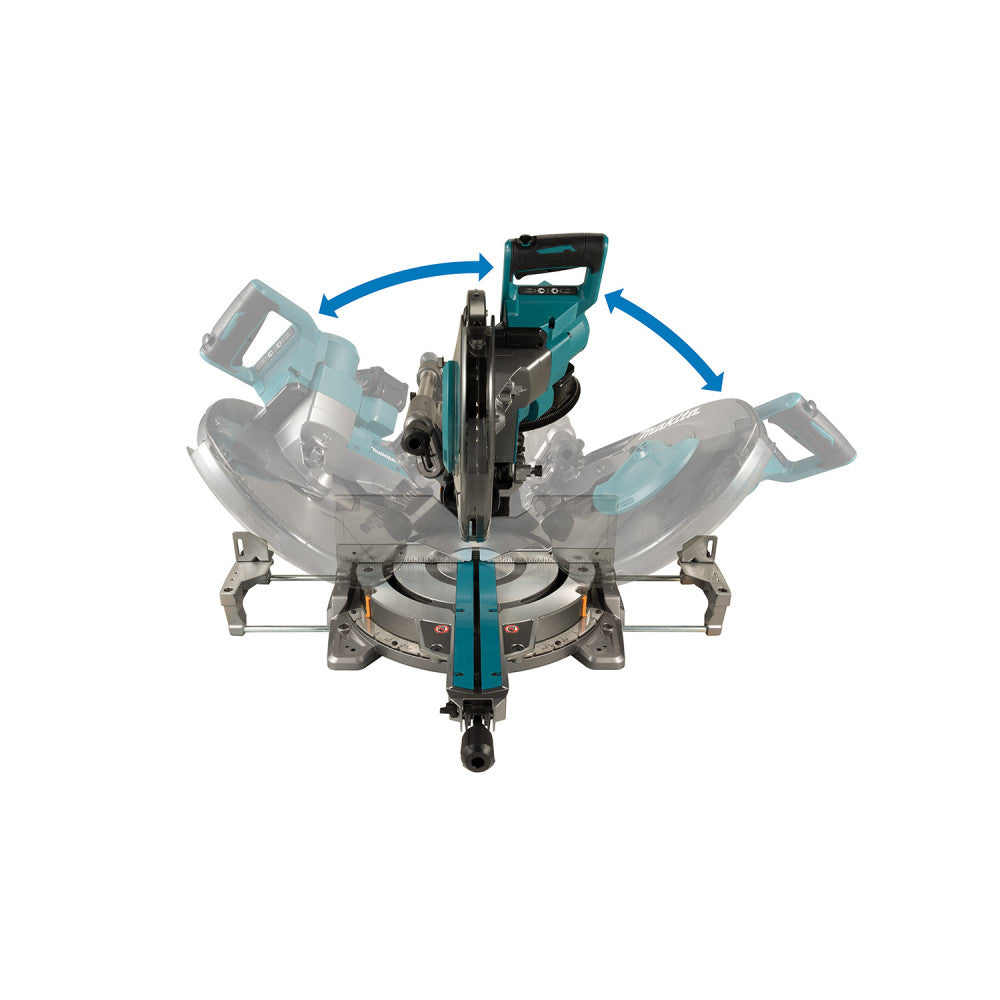

- at Miter Angle: 60° L 60° R
Bevel angle 48° L 48° R
No load speed 3,600
Overall dimensions 805 x 644 x 660mm
Net weight (skin) 26.6kg
Sound Level 100dB(A)
Continuous rating input 1,600W
Voltage 40V
XGT battery compatibility 2Ah 2.5Ah 4Ah 5Ah
Included accessories
(B-64646) Efficut 260 x 45T, (122852-0) Dust Bag, (762001-3) Triangular Rule, (126617-2) Vertical Vise, Hex Wrench
