Description

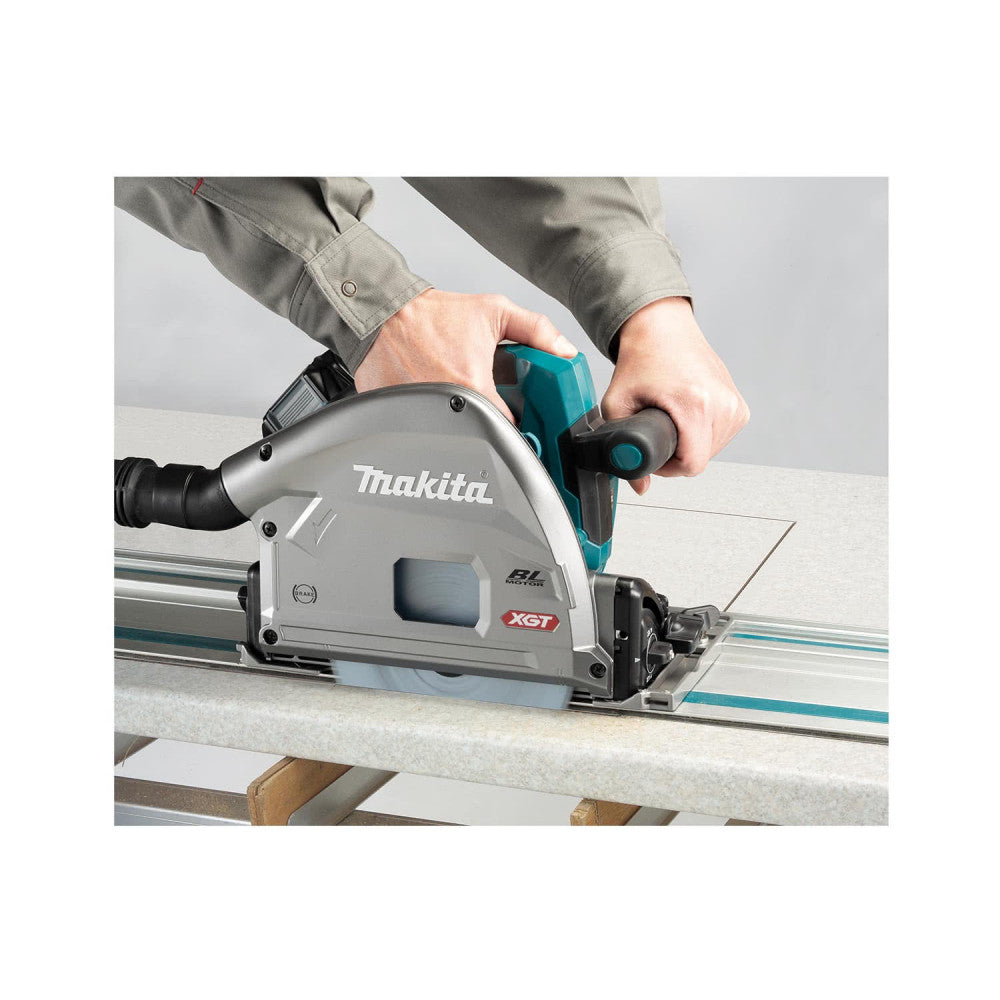

Compatible with optional guide rail system for ultra precise straight cutting
Constant speed control maintains cutting speed under heavy load
Electric blade brake and soft start improve safety during use

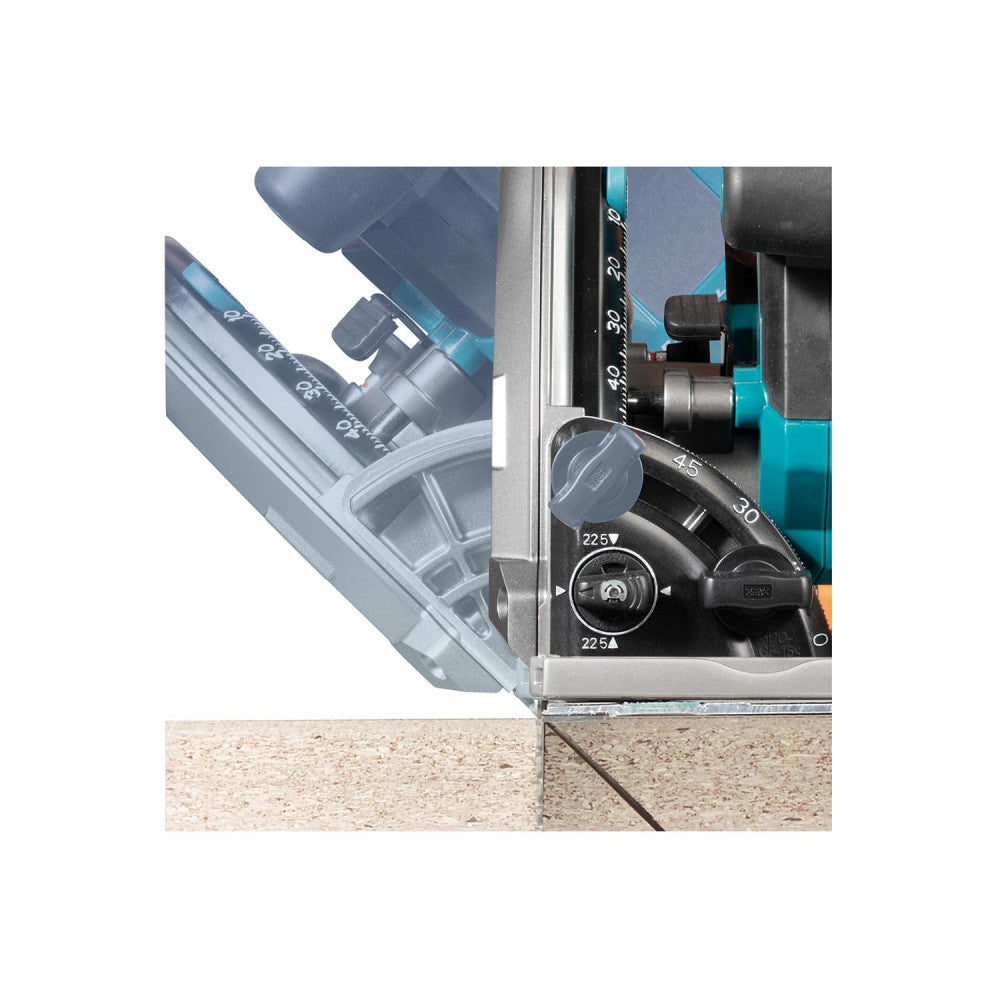

Dual front and rear bevel lock provide additional rigidity for accurate bevel cuts

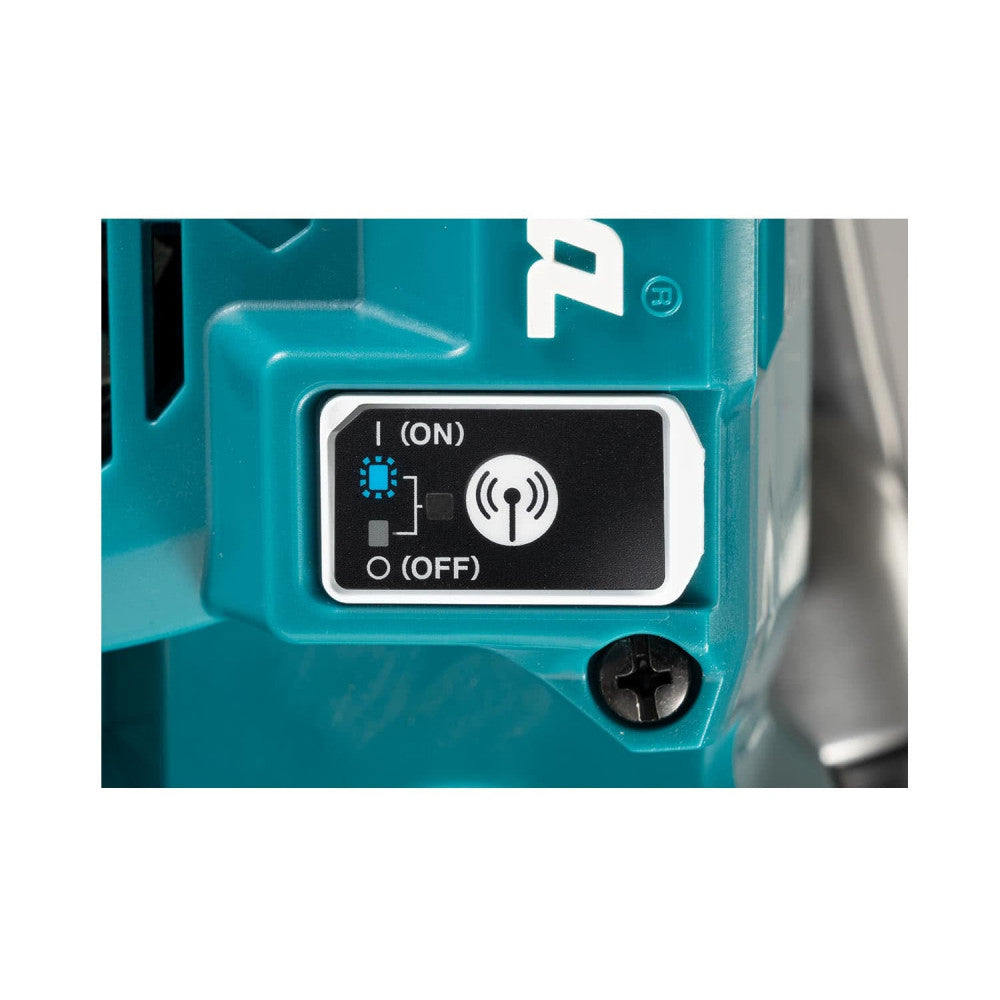

Compatible with AWS for wireless connectivity with compatible dust extraction
*AWS Wireless adaptor comes as standard
Specifications
Blade diameter 165mm
Max cutting capacities
- at 90° 0°: 56mm
- at 45° 45°: 40mm
- at 48°: 38mm
Bevel angle -1 - 48°
No load speed
- Hi 4,900
- Low 2,500
Overall dimensions 347 x 221 x 271mm
Net weight (skin) 4.4kg
Sound Level 89dB(A)
Voltage 40V
Included accessories
Efficut 165 x 56T blade (B-57358 ), Hex Wrench 5 (783203-8), AWS Chip (198901-5), Makpac 4 Case (196650-8)
Optional accessories
(126599-8) Dust Bag
Efficut 165 x 25T (B-62991 )
Specialized Silencer 165 x 48T (B-56851 )
Specialized Silencer 165 x 56T (B-56823 )
Constant speed control maintains cutting speed under heavy load
Electric blade brake and soft start improve safety during use
Dual front and rear bevel lock provide additional rigidity for accurate bevel cuts
Compatible with AWS for wireless connectivity with compatible dust extraction
*AWS Wireless adaptor comes as standard
Specifications
Blade diameter 165mm
Max cutting capacities
- at 90° 0°: 56mm
- at 45° 45°: 40mm
- at 48°: 38mm
Bevel angle -1 - 48°
No load speed
- Hi 4,900
- Low 2,500
Overall dimensions 347 x 221 x 271mm
Net weight (skin) 4.4kg
Sound Level 89dB(A)
Voltage 40V
Included accessories
Efficut 165 x 56T blade (B-57358 ), Hex Wrench 5 (783203-8), AWS Chip (198901-5), Makpac 4 Case (196650-8)
Optional accessories
(126599-8) Dust Bag
Efficut 165 x 25T (B-62991 )
Specialized Silencer 165 x 48T (B-56851 )
Specialized Silencer 165 x 56T (B-56823 )
