Description
Heavy duty power hitting at 8.0J^ of impact energy
Active feedback sensors shut down the tool in the event of a kickback
Anti-vibration technology provides extremely low vibration of 5.0m/s²
Soft no load function reduces speed and vibration when under no load for improved comfort

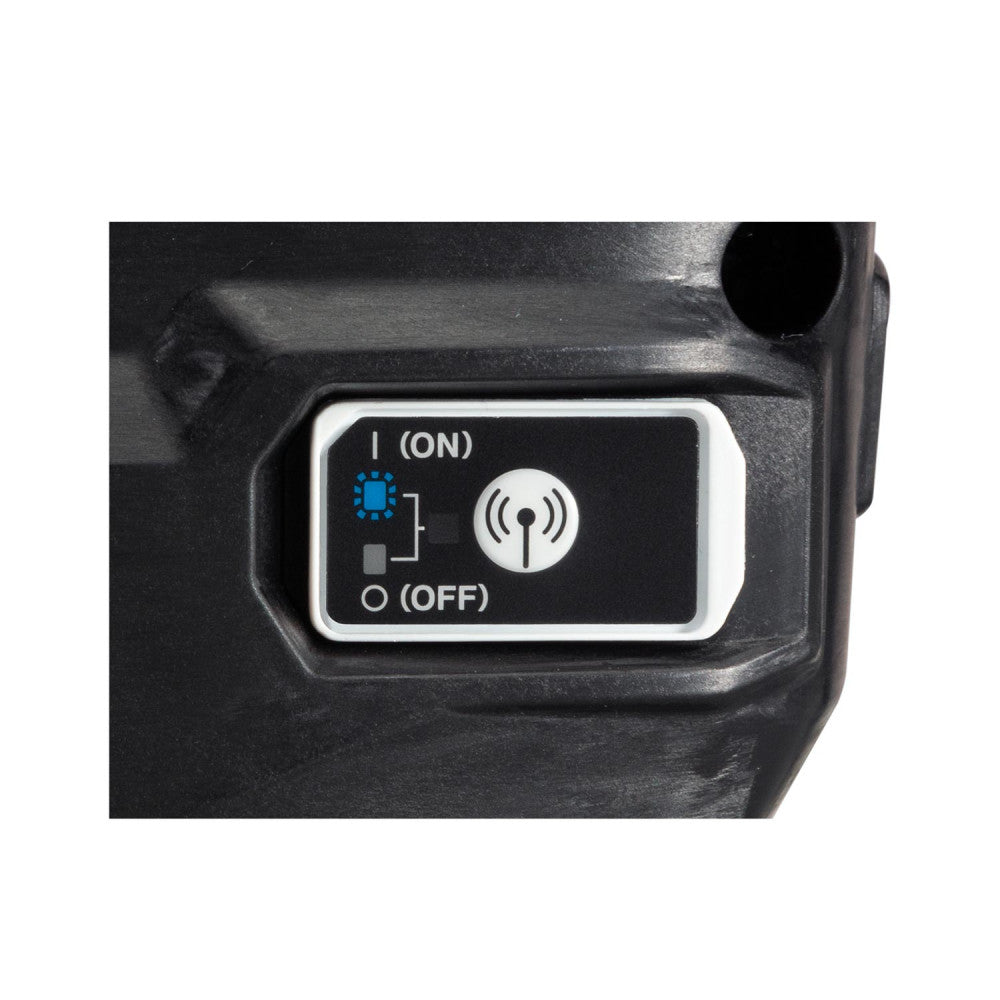

Compatible with AWS* for wireless connectivity with compatible dust extraction
*Rating in accordance with EPTA 05/2009
*Requires optional wireless transmitter
Specifications
Shank type SDS-Max
- Concrete 40mm
- Concrete (Core bit) 105mm
Impacts per minute 1,450 - 2,900 BPM
No load speed 250 - 500
Joules 8.0J
Overall dimensions 500mm
Net weight (skin) 6.7kg
Sound Level 91.0
Voltage 40V
XGT battery compatibility 2.5Ah 4Ah 5Ah 8Ah
Included accessories
Side Grip Assembly (123138-5), Side Handle (196792-8), 100mL grease (194683-7), Cloth, Depth gauge
Optional accessories
(199142-6) Dust Extractor Attachment Set
(199144-2) Dust Extractor Set
(198901-5) AWS Auto‑Start Wireless Transmitter
(PDC1200A01) ConnectX Portable Backpack battery
(191N62-4) XGT 40Vmax adaptor for PDC1200
(WUT02ZU) Wireless unit adaptor with AWS chip
Active feedback sensors shut down the tool in the event of a kickback
Anti-vibration technology provides extremely low vibration of 5.0m/s²
Soft no load function reduces speed and vibration when under no load for improved comfort
Compatible with AWS* for wireless connectivity with compatible dust extraction
*Rating in accordance with EPTA 05/2009
*Requires optional wireless transmitter
Specifications
Shank type SDS-Max
- Concrete 40mm
- Concrete (Core bit) 105mm
Impacts per minute 1,450 - 2,900 BPM
No load speed 250 - 500
Joules 8.0J
Overall dimensions 500mm
Net weight (skin) 6.7kg
Sound Level 91.0
Voltage 40V
XGT battery compatibility 2.5Ah 4Ah 5Ah 8Ah
Included accessories
Side Grip Assembly (123138-5), Side Handle (196792-8), 100mL grease (194683-7), Cloth, Depth gauge
Optional accessories
(199142-6) Dust Extractor Attachment Set
(199144-2) Dust Extractor Set
(198901-5) AWS Auto‑Start Wireless Transmitter
(PDC1200A01) ConnectX Portable Backpack battery
(191N62-4) XGT 40Vmax adaptor for PDC1200
(WUT02ZU) Wireless unit adaptor with AWS chip
