Description
Heavy duty power hitting at 8.0J^ of impact energy
Active feedback sensors shut down the tool in the event of a kickback
Anti-vibration technology provides extremely low vibration of 5.0m/s²
Soft no load function reduces speed and vibration when under no load for improved comfort

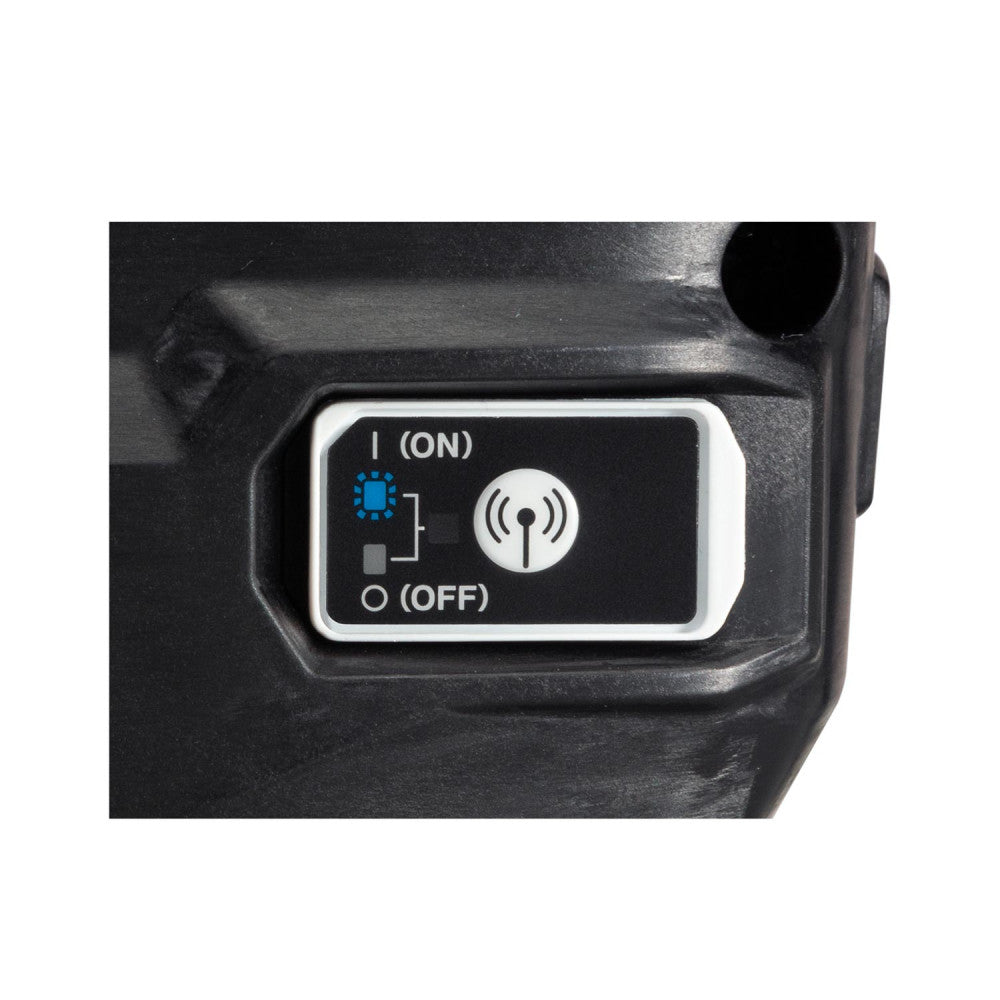

Compatible with AWS* for wireless connectivity with compatible dust extraction
*^Rating in accordance with EPTA 05/2009
*Requires optional wireless transmitter
Specifications
Shank type SDS-Max
- Concrete 40mm
- Concrete (Core bit) 105mm
Impacts per minute 1,450 - 2,900 BPM
No load speed 250 - 500
Joules 8.0J
Overall dimensions 500mm
Net weight (skin) 6.7kg
Sound Level 91.0
Voltage 40V
XGT battery compatibility 2.5Ah 4Ah 5Ah 8Ah

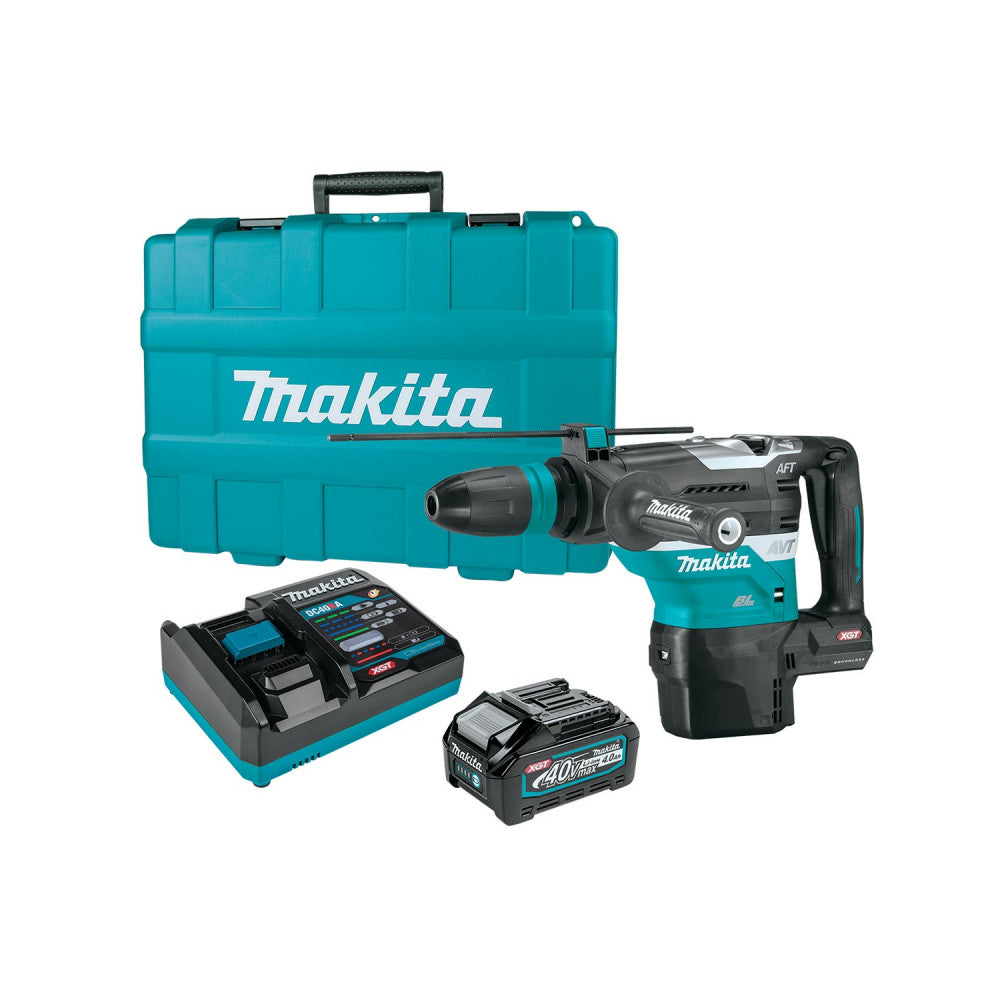

Supplied with 2x 4.0Ah batteries (BL4040), rapid charger (DC40RA) & carry case (821837-0)
Included accessories

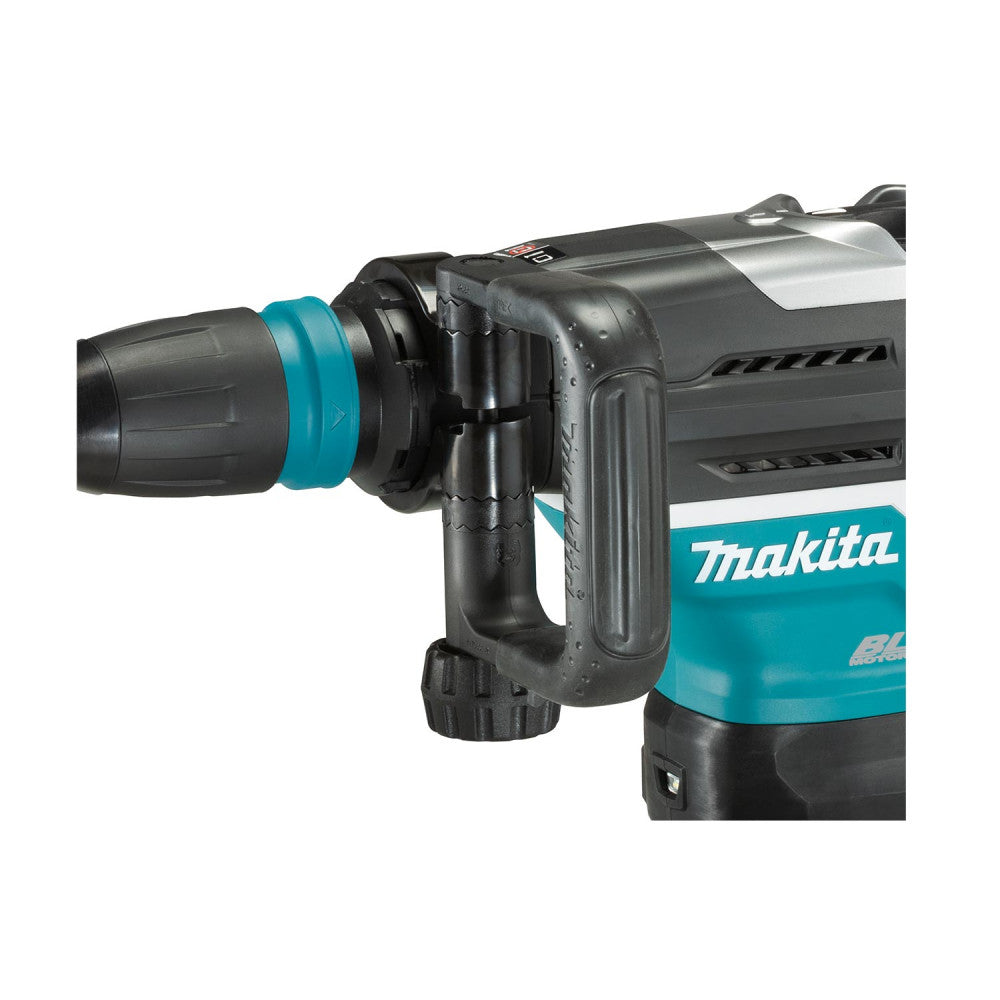

Side Grip Assembly (123138-5), Side Handle (196792-8), 100mL grease (194683-7), Cloth, Depth gauge
Optional accessories
(199142-6) Dust Extractor Attachment Set
(199144-2) Dust Extractor Set
(198901-5) AWS Auto‑Start Wireless Transmitter
(PDC1200A01) ConnectX Portable Backpack battery
(191N62-4) XGT 40Vmax adaptor for PDC1200
(WUT02ZU) Wireless unit adaptor with AWS chip
