Description

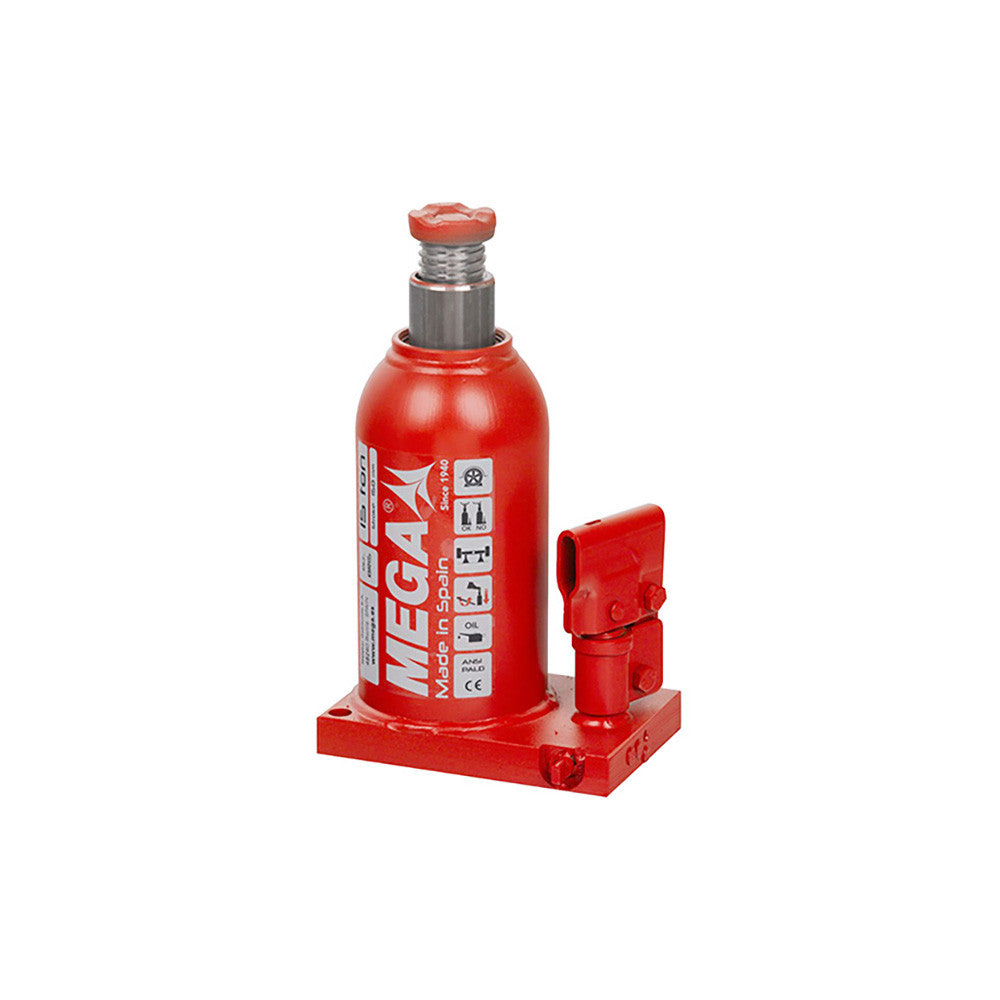

5T Bottle Jack - Mega - #BR15
NOMINAL FORCE
15t
CHARACTERISTICS
Telescopic three piece zinc plated pump handle.
Rotary pump socket. It can be operated from any position.
Extension screw provides added lifting height.
Quick and easy maintenance.
Safety oil bypass system prevents the ram from being over extended and causing damage to the cylinder.
Pump handle can be locked.
We also supply jacks fitted with a pressure gauge always based on a minimum batch. The base, pressure cylinder and oil deposit form one integralpart and provide more strength and safety to the jacks.
Any pressure loads produced by the vehicle axle tilting are absorbed as the piston never comes into contact with the cylinder. Therefore the jack will not be damaged even if the vehicle tilts.
SECURITY
SAFETY OVERLOAD VALVE
HYDRAULIC STROKE LIMITATION
Specifications:
Capacity: 15-tons
Minimum height: 228mm
Maximum height: 453mm
Lifting Height: 150mm
crew: 75mm
Base dimensions: 164x110 mm
Weight: 8.8kgs
NOMINAL FORCE
15t
CHARACTERISTICS
Telescopic three piece zinc plated pump handle.
Rotary pump socket. It can be operated from any position.
Extension screw provides added lifting height.
Quick and easy maintenance.
Safety oil bypass system prevents the ram from being over extended and causing damage to the cylinder.
Pump handle can be locked.
We also supply jacks fitted with a pressure gauge always based on a minimum batch. The base, pressure cylinder and oil deposit form one integralpart and provide more strength and safety to the jacks.
Any pressure loads produced by the vehicle axle tilting are absorbed as the piston never comes into contact with the cylinder. Therefore the jack will not be damaged even if the vehicle tilts.
SECURITY
SAFETY OVERLOAD VALVE
HYDRAULIC STROKE LIMITATION
Specifications:
Capacity: 15-tons
Minimum height: 228mm
Maximum height: 453mm
Lifting Height: 150mm
crew: 75mm
Base dimensions: 164x110 mm
Weight: 8.8kgs
