Description
Metabo Cordless Plunge Cut Circular Saw Brushless 18v 5.5Ah
- Cordless plunge cut saw with brushless motor for powerful plunge cuts up to a depth of 66 mm

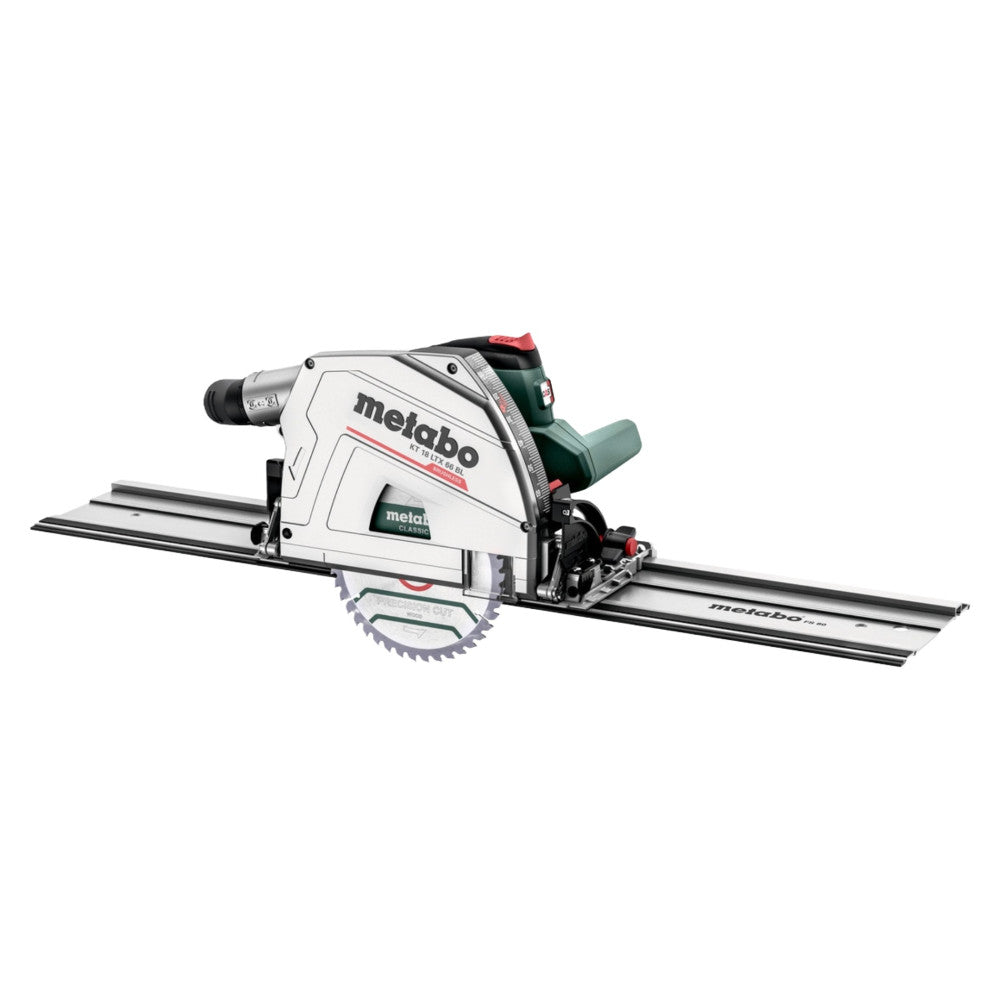

- Adjustable fit w/out play on the guide rails from Metabo and other manufacturers for precise cutting results.
- LIHD high-performance battery packs and the Metabo brushless motor guarantee Max power and enduring sawing
- Versatile application thanks to variable speed for different materials
- Double guide for precise setting of the cutting depth with and w/out guide rail
- With undercut function for precise transitions, 0° and 45° position readjustable.
- Sawing close to the wall possible down to 14mm
- Low-dust sawing thanks to large-volume dust bag or by connecting a vacuum cleaner
- Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
- Sawdust ejection nozzle for any working position can be rotated and locked individually
- Fast brake stops the saw blade quickly and improves safety
- Viewing window in the guard for precise cutting guidance
- Fast and easy changing of the sawblade with lever for locking plunge position and spindle stop
- Practical parallel guide available (order no. 628029000)
- With metaBOX, the intelligent solution for transport and storage
- Battery can be used with other 18V battery packs and chargers of the CAS brands
Specs:
Type of battery pack - Li-Power 18V

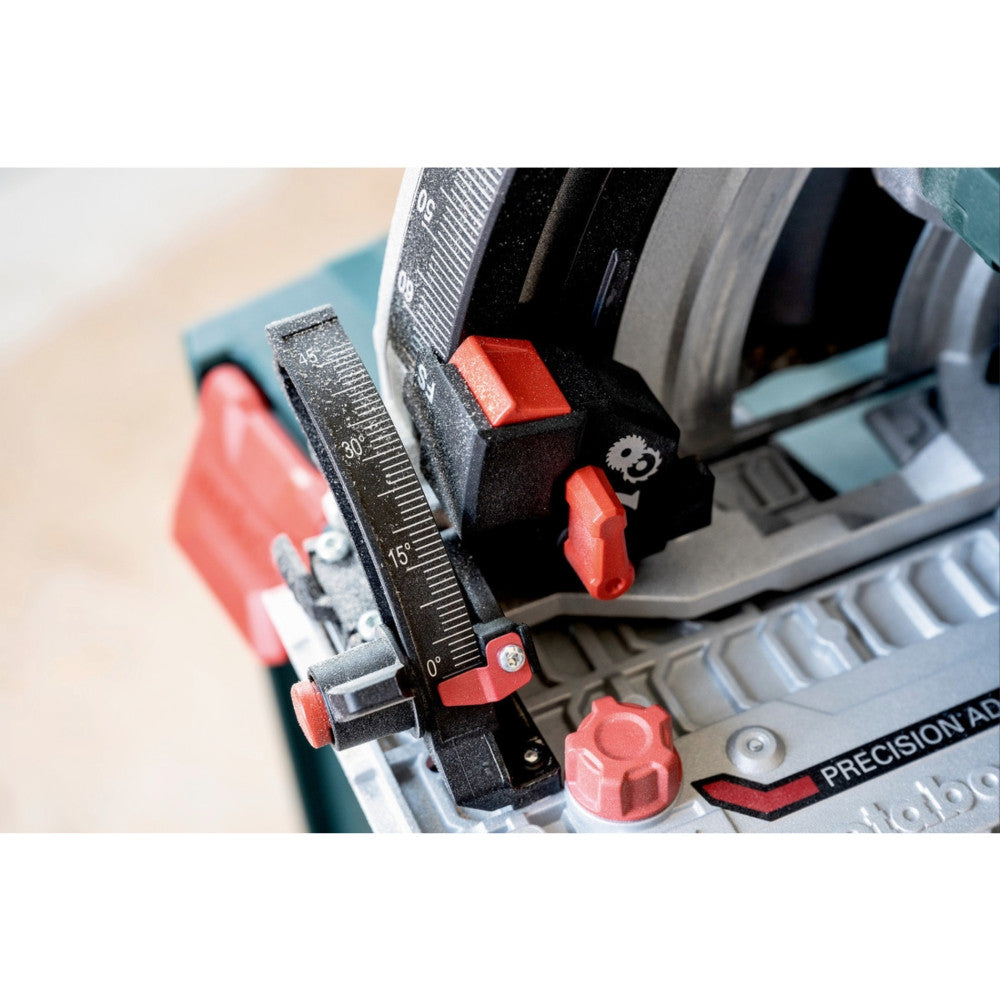

Swivel range from / to: - 1 / + 46 °
Adjustable cutting depth - 0 - 66 mm
Max cutting depth at 90deg - 66 mm
Max cutting depth at 45deg - 43 mm
Max. cutting depth with guide rail - 61 mm
Saw blade Ø x bore - 165 x 20 mm
No-load speed - 2250 - 5000 rpm
Max. cutting speed - 43 m/s
Weight w/out battery pack - 4.3 kg
Weight w/ battery pack - 5.3 kg
Vibration
Sawing chipboards - 2.5 m/s²
Uncertainty of measurement K - 1.5 m/s²
Noise emission
Sound pressure level - 90 dB(A)
Sound power level (LwA) - 101 dB(A)
Uncertainty of measurement K - 3 dB(A)

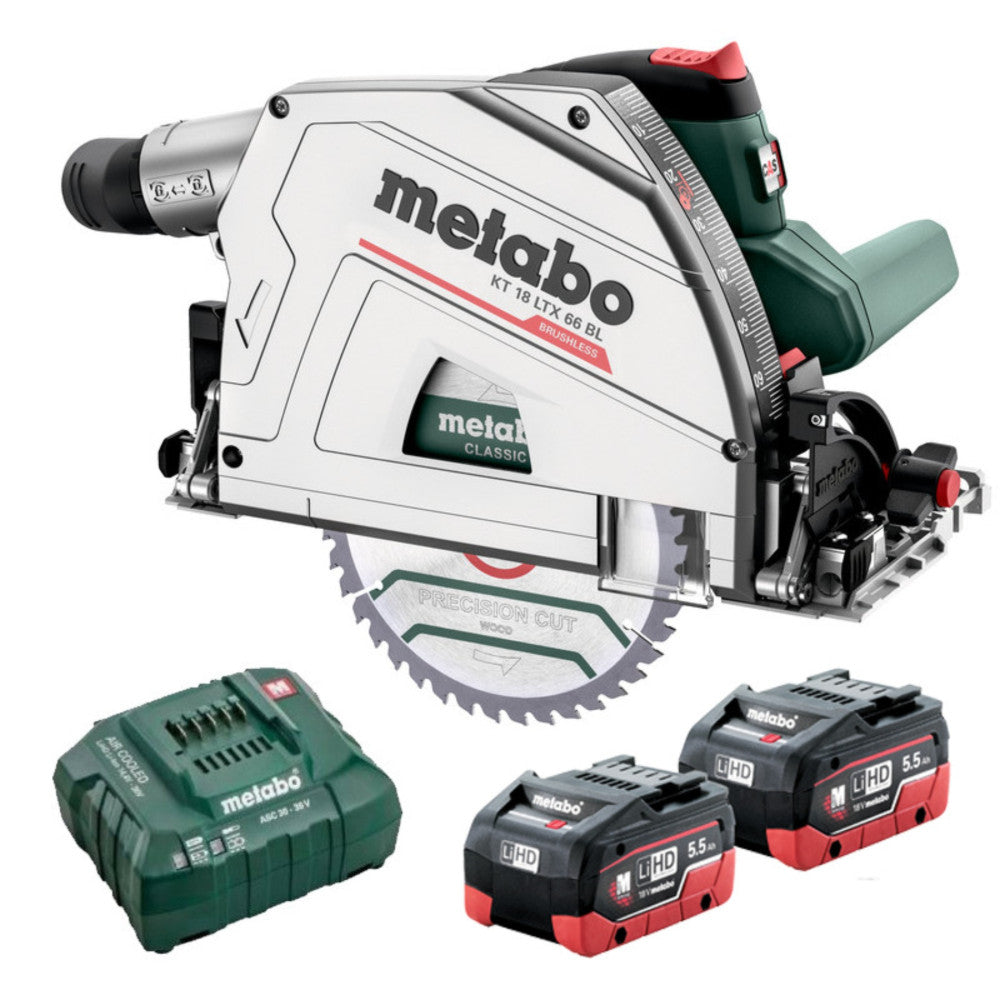

Kit contains 2x 5.5Ah LiHD Batteries, Charger and METABox Case
