Description

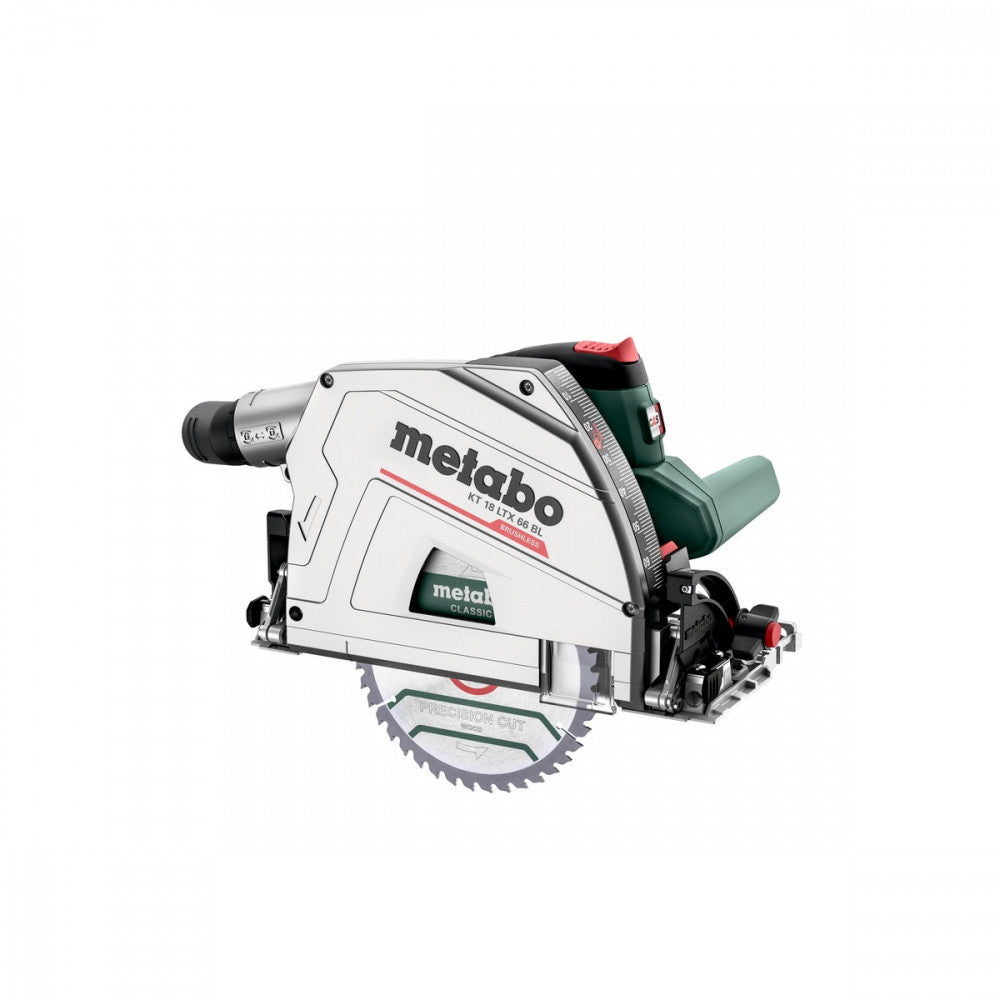

Cordless plunge cut saw with brushless motor for powerful plunge cuts and precise cuts up to a depth of 66 mm (!)
Adjustable fit without play on the guide rails from Metabo and other manufacturers for precise cutting results.
LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing
Versatile application thanks to variable speed for different materials
Double guide for precise setting of the cutting depth with and without guide rail
With undercut function for precise transitions, 0° and 45° position readjustable for highest cutting precision
Sawing close to the wall possible down to 14 mm
Low-dust sawing thanks to large-volume dust bag or by connecting a vacuum cleaner
Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
Sawdust ejection nozzle for any working position can be rotated and locked individually
Fast brake stops the saw blade quickly and improves safety
Viewing window in the guard for precise cutting guidance
Fast and easy changing of the sawblade with lever for locking plunge position and spindle stop
Practical parallel guide available as accessory (order no. 628029000)
With metaBOX, the intelligent solution for transport and storage
Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com
Type of battery packLi-Power
Battery voltage18 V
Swivel range from / to:- 1 / + 46 °
Adjustable cutting depth0 - 66 mm // 0 - 2 19/32 "
Maximum cutting depth at 90°66 mm / 2 19/32 "
Maximum cutting depth at 45°43 mm / 1 11/16 "
Max. cutting depth with guide rail61 mm / 2 13/32 "
Saw blade Ø x bore165 x 20 mm // 6 1/2 x 5/8 "
No-load speed2250 - 5000 rpm
Max. cutting speed43 m/s / 141 ft/s
Weight without battery pack4.3 kg / 9.5 lbs
Weight with battery pack5.3 kg / 11.7 lbs
Sawing chipboards2.5 m/s²
Uncertainty of measurement K1.5 m/s²
Adjustable fit without play on the guide rails from Metabo and other manufacturers for precise cutting results.
LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing
Versatile application thanks to variable speed for different materials
Double guide for precise setting of the cutting depth with and without guide rail
With undercut function for precise transitions, 0° and 45° position readjustable for highest cutting precision
Sawing close to the wall possible down to 14 mm
Low-dust sawing thanks to large-volume dust bag or by connecting a vacuum cleaner
Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
Sawdust ejection nozzle for any working position can be rotated and locked individually
Fast brake stops the saw blade quickly and improves safety
Viewing window in the guard for precise cutting guidance
Fast and easy changing of the sawblade with lever for locking plunge position and spindle stop
Practical parallel guide available as accessory (order no. 628029000)
With metaBOX, the intelligent solution for transport and storage
Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com
Type of battery packLi-Power
Battery voltage18 V
Swivel range from / to:- 1 / + 46 °
Adjustable cutting depth0 - 66 mm // 0 - 2 19/32 "
Maximum cutting depth at 90°66 mm / 2 19/32 "
Maximum cutting depth at 45°43 mm / 1 11/16 "
Max. cutting depth with guide rail61 mm / 2 13/32 "
Saw blade Ø x bore165 x 20 mm // 6 1/2 x 5/8 "
No-load speed2250 - 5000 rpm
Max. cutting speed43 m/s / 141 ft/s
Weight without battery pack4.3 kg / 9.5 lbs
Weight with battery pack5.3 kg / 11.7 lbs
Sawing chipboards2.5 m/s²
Uncertainty of measurement K1.5 m/s²
