Description

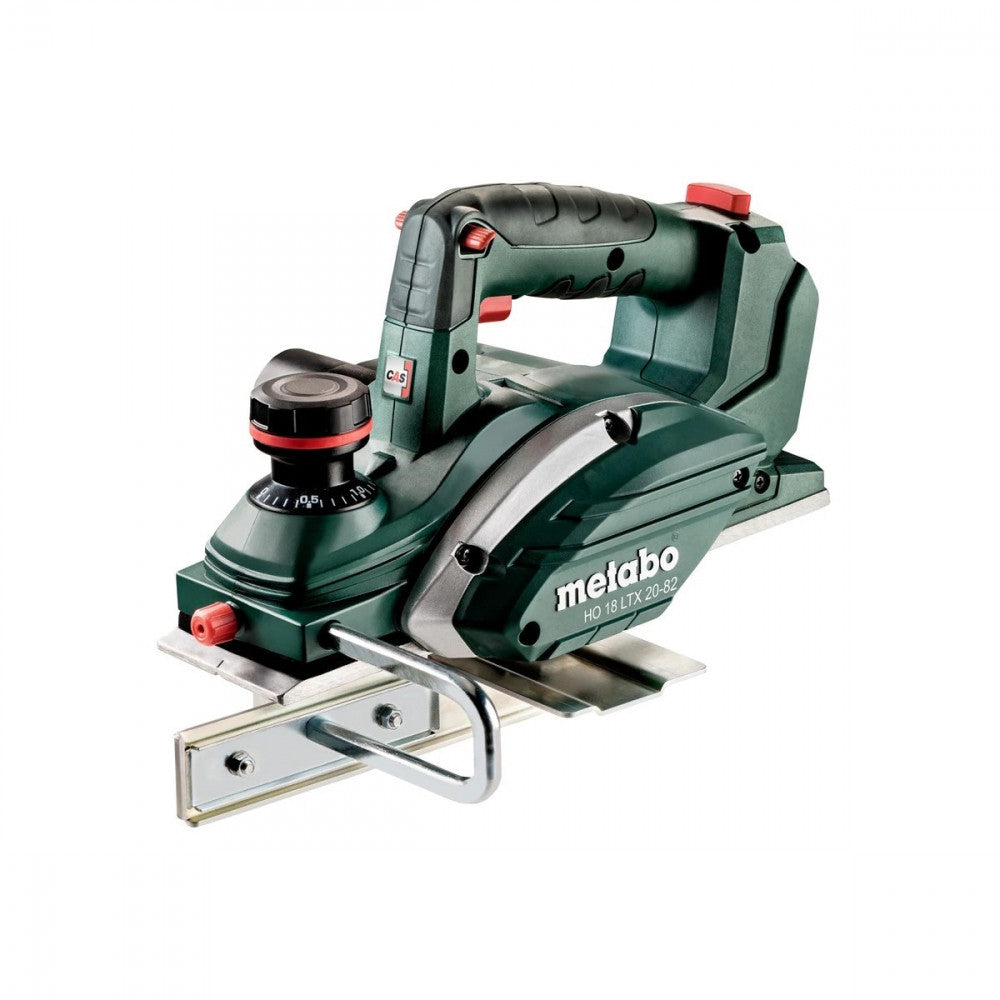

Light, compact cordless planer for planing, rebating and chamfering
Adjustable planer depth and notch depth
Aluminium die cast and milled cut planer base with V-groove for easy chamfering
Parallel guide for precise guiding of the planer
Grip area with non-slip soft-grip surface
Extraction possibility by means of connecting an all-purpose vacuum cleaner
Angled chip ejection adapter for controlled ejection of the wood shavings
Easy to empty textile dust bag for working without extraction facilities
Strap on the planer base for stopping the machine and to protect the work piece
Easy blade change of the robust reversible carbide planer blades
Soft start and overload protection for long service life of motor and drive
Type of battery packLi-Power
Battery voltage18 V
Planing width82 mm
Adjustable planing depth0 - 2 mm
Maximum notch depth9 mm
No-load speed16000 rpm
Length of planer base295 mm
Weight without battery pack2.9 kg / 6.4 lbs
Weight with battery pack3.3 kg / 7.3 lbs
Vibration
Planing soft wood1.6 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level90 dB(A)
Sound power level (LwA)101 dB(A)
Uncertainty of measurement K3 dB(A)
