Description

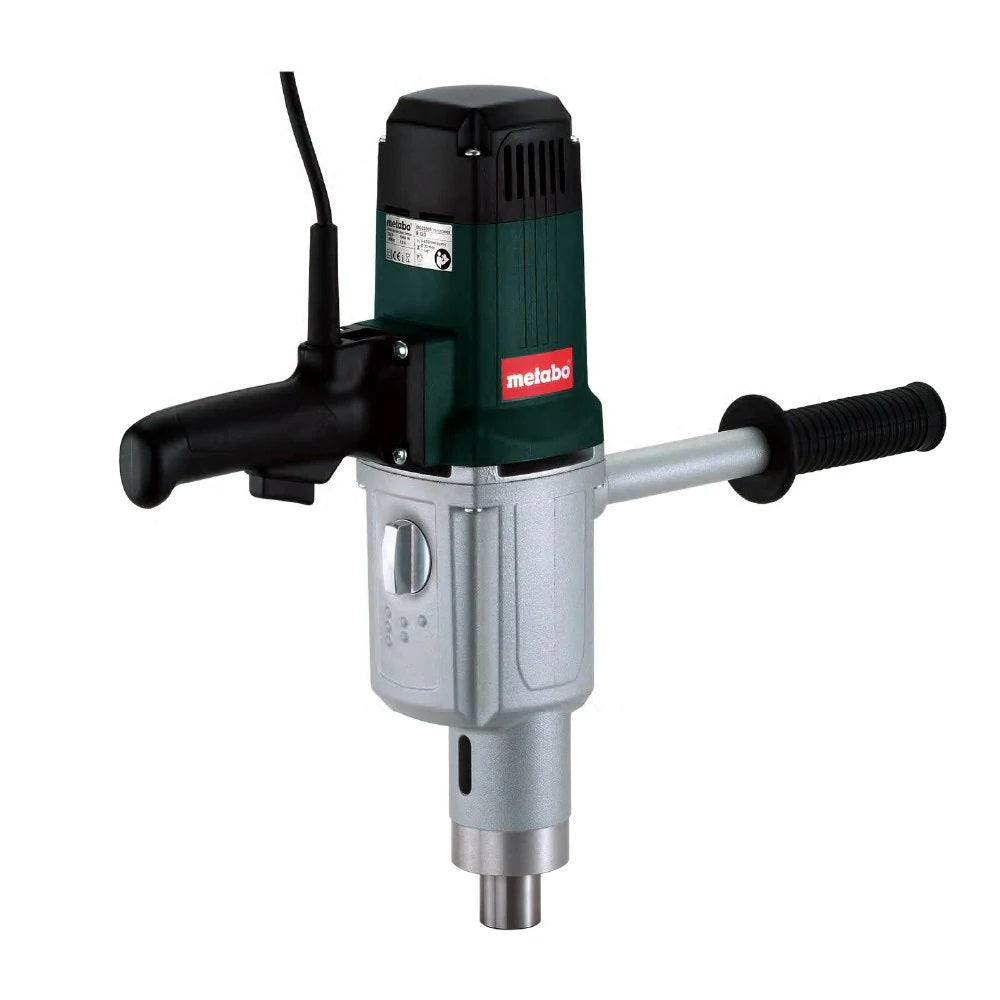

Powerful three-speed drill with extra high torque
Robust mechanical gearbox with oil bath lubrication
Robust die cast aluminium gear housing for optimum heat dissipation and durability
Vario (V)-Electronics for working at customised speeds to suit various application materials
Safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
For easy drilling of larger diameters and driving in of very long screws
Rated input power1800 W
Output power1200 W
Drill Ø steel32 mm
Drill-Ø soft wood70 mm
No-load speed0 - 170 / 0 - 320 / 0 - 470 rpm
Revolutions at rated load110 / 190 / 280 rpm
Gears3
Maximum torque190 / 120 / 90 Nm
Collar diameter65 mm
Drill spindle with inside taperMT 3
Weight (without power cable)7.8 kg
Cable length5 m
Vibration
Drilling in metal3.5 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level90 dB(A)
Sound power level (LwA)101 dB(A)
Uncertainty of measurement K3 dB(A)
