Description

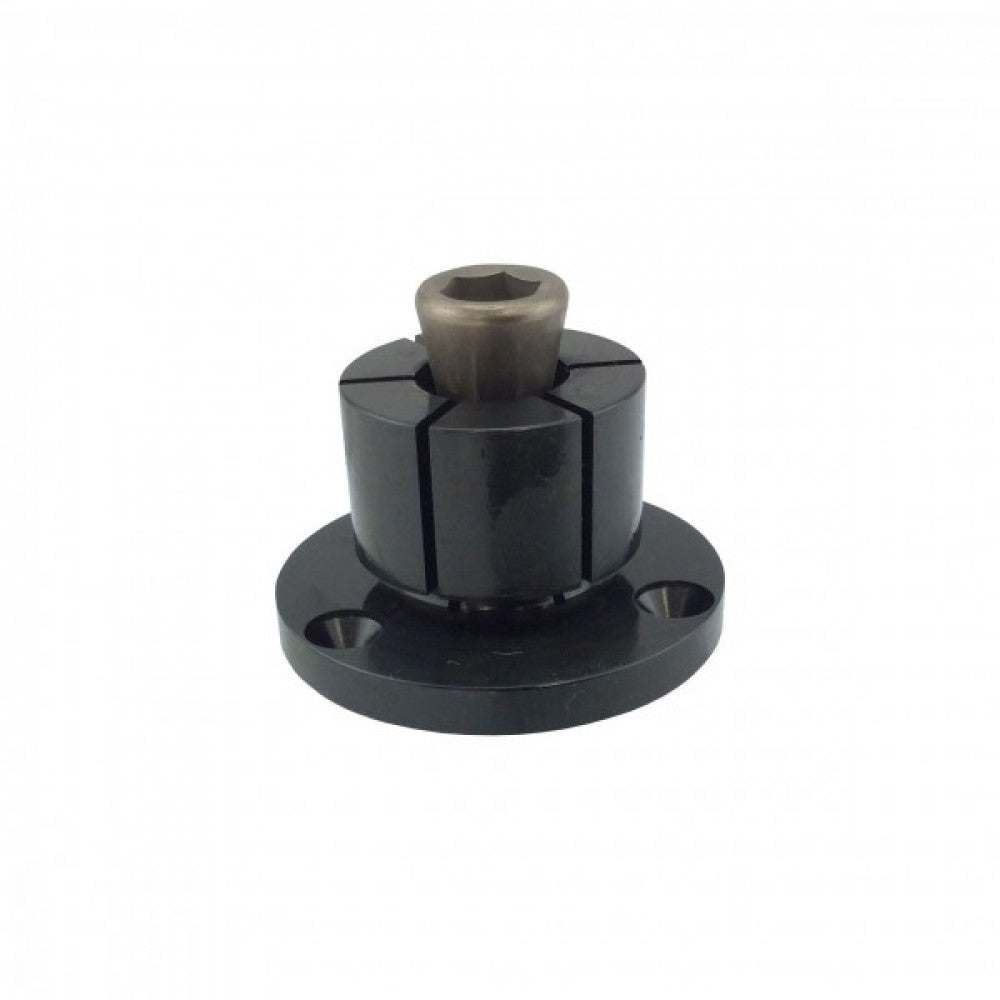

The ID Xpansion clamp is the ideal solution to hold parts on an inside diameter for high density machining on vertical or horizontal machining centers.
It can also be used as an expanding mandrel on a lathe.
These machinable clamps are produced in 12L14 steel with black oxide coating.

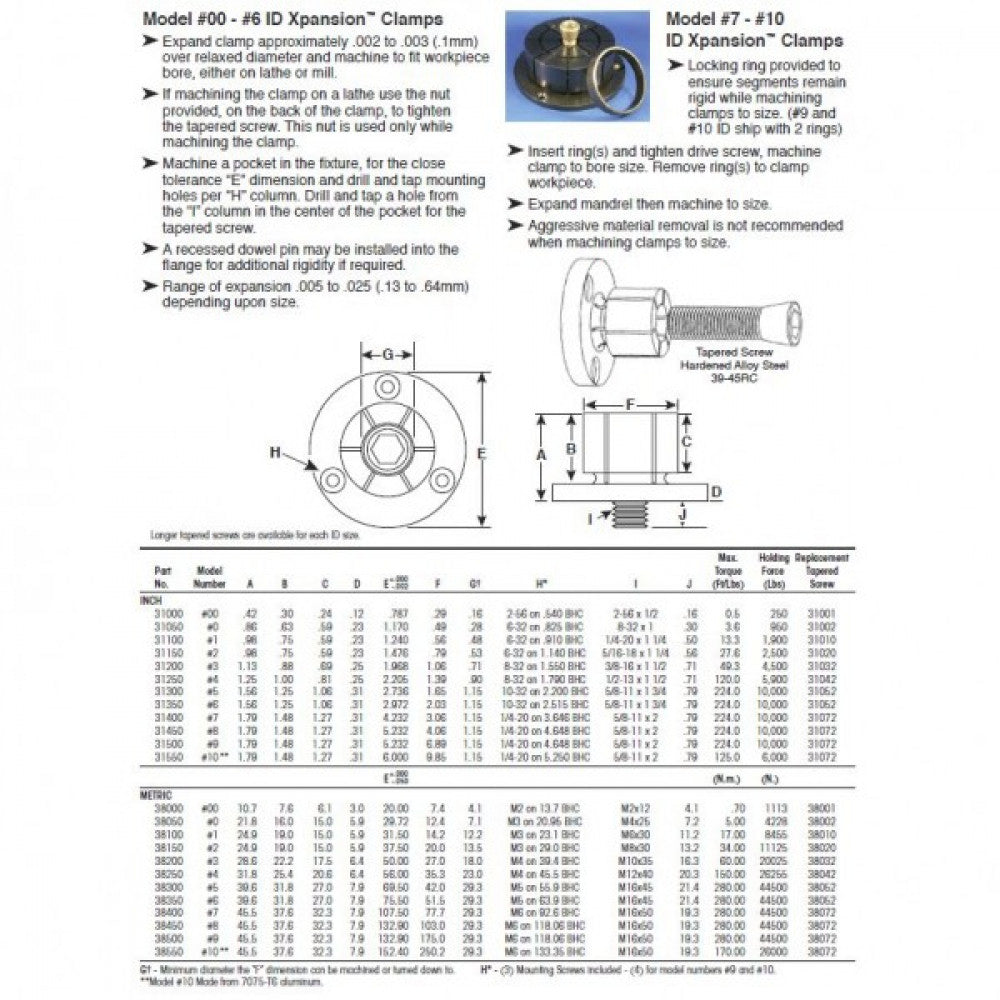

The customer machines the mild steel clamp to match the bore of the part ensuring a proper fit. Often times the clamps can be remachined for different size jobs.
Low Profile
Ideal for Secondary Operations on lathe parts
Easily machined to size on lathe or mill
Excellent for palletized setups
Allows more parts per workcube or fixture plate
Heat-treated and coated screw for long life
Clamp body made of mild steel for machinability
Tighten with hex key or hydraulic pull cylinders
38250
