Description

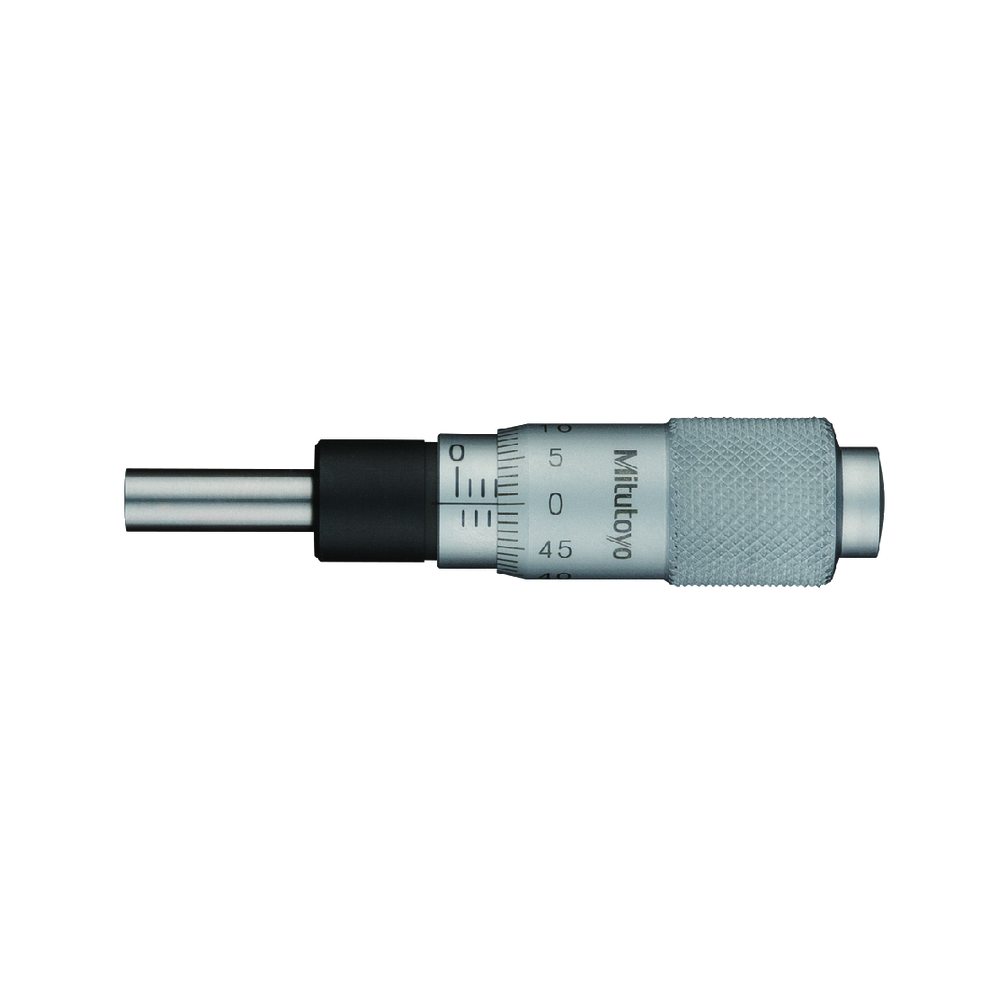

Mitutoyo Smaller-sized Standard Micrometer head is shorter in length and range with a smaller diameter for easier placement in machines and fixtures.
Mitutoyo standard micrometer head comes in a smaller size to fit tighter spaces while providing accurate placement and measurements.
The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.
Spindle range is 13mm / .5”
Mounting stem diameter is 9.5mm / .375”
Spindle diameter is 5mm / .197”
Mic head total lengths (at stroke end) are 71.5mm / 2.81” and 80.1mm / 3.15”
Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel and are available in spherical or flat types.
Mitutoyo standard micrometer head comes in a smaller size to fit tighter spaces while providing accurate placement and measurements.
The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.
Spindle range is 13mm / .5”
Mounting stem diameter is 9.5mm / .375”
Spindle diameter is 5mm / .197”
Mic head total lengths (at stroke end) are 71.5mm / 2.81” and 80.1mm / 3.15”
Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel and are available in spherical or flat types.
