Description

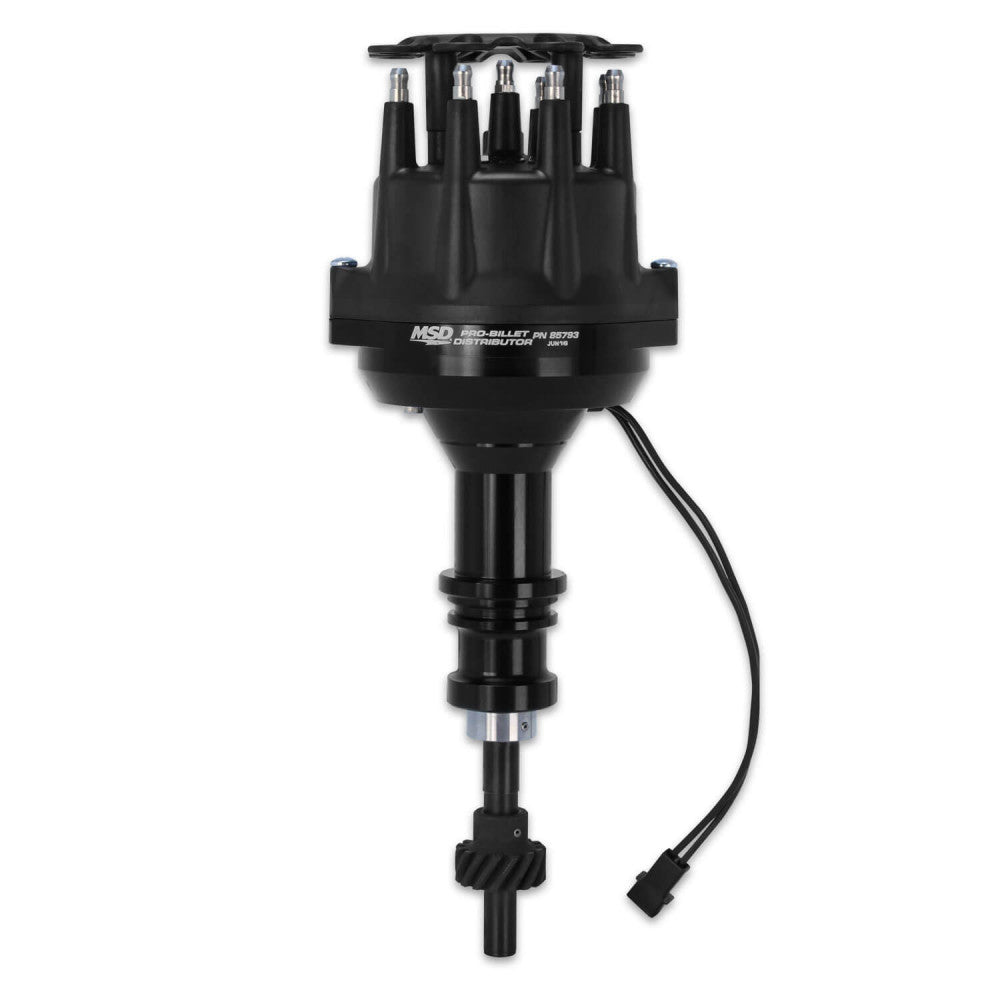

MSD Pro-Billet Distributors are the finest performance and racing distributors available. Every feature has been engineered to endure the rigors of high performance and racing engines. Whether cruising the streets or racing stock cars, dragsters, boats or trucks, MSD has a distributor for it. MSD uses state-of-the-art, Computer Numerical Controlled (CNC) mills and lathes to machine each housing. After a long series of precise cuts and movements, the billet is formed into a flawless distributor housing that is accurate to within 0.001". The flex-free housings are lightweight, have no porosity or weak areas and look great on polished, show quality engines.
Features:
Polished steel shaft is QPQ coated and guided by a sealed ball bearing for smooth operation at all rpms
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
CNC machined billet aluminum housing and billet aluminum base providing superior strength and great looks
Easy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Advance weight pins are staked and tig welded to the plate
Nylon pads ensure smooth operation of the advance weights
Mechanical advance assembly can be locked out for crank trigger systems or racing applications
Specifications :
Part Type: Distributors
Product Line: MSD Pro-Billet Distributors
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Mechanical
Ignition Box Required: Yes
Cap Style: Male/HEI
Mechanical Tach Drive: No
Slip Collar: No
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Distributor Cap Color: Black
Housing Material: Billet aluminum
Housing Finish: Black
Marine Use: No
Quantity: Sold Each
Notes: Small base diameter for extra clearance. Distributor is 7.0625 in. tall from engine to top of distributor cap.
