MSD Distributor Chev (HEI) Pro Billet - Black#MSD83653

The Chevrolet HEI Distributor is a favorite for muscle cars, street rods and even circle track racers. The integrated coil keeps underhood wiring clean, and for race cars, the idea of running one wire to the distributor keeps things simple. However, when it comes to performance, the stock HEI falls short. MSD answers the need for a strong, accurate and high performance HEI with our Pro-Billet HEI.

Features :

Full spark energy output to 9,000 RPM
7.5 amp, single spark, inductive discharge ignition module
Easy-to-adjust mechanical advance with supplied springs and stop bushings
Vacuum advance canister for improved economy (can be locked out)
Designed to replace GM HEI distributors that use a 4-pin ignition module
A complete performance HEI distributor upgrade for Chevy V8 engines
Supplied with stainless steel distributor cap for long life and superior performance
Supplied with an 8.5 amp, single spark, inductive discharge ignition module, MSD PN 83647, and MSD HEI Coil, PN 8225
Special oil tract improves lubrication to the distributor and cam gear
Nylon pads ensure smooth operation of the advance weights
Advance weight pins are staked and tig welded to the plate

Specifications :

Product Type: Distributors

Product Line: MSD Pro-Billet HEI Distributors

Computer-Controlled Compatible: No

Trigger Style: Magnetic

Advance Type: Vacuum and mechanical

Ignition Box Required: No

Cap Style: Male/HEI

Mechanical Tach Drive: No

Slip Collar: No

Distributor Gear Material: Iron

Distributor Gear Rotation: Standard

Distributor Cap Color: Black

Housing Material: Billet aluminum

Housing Finish: Black

Marine Use: No

Quantity: Sold Each

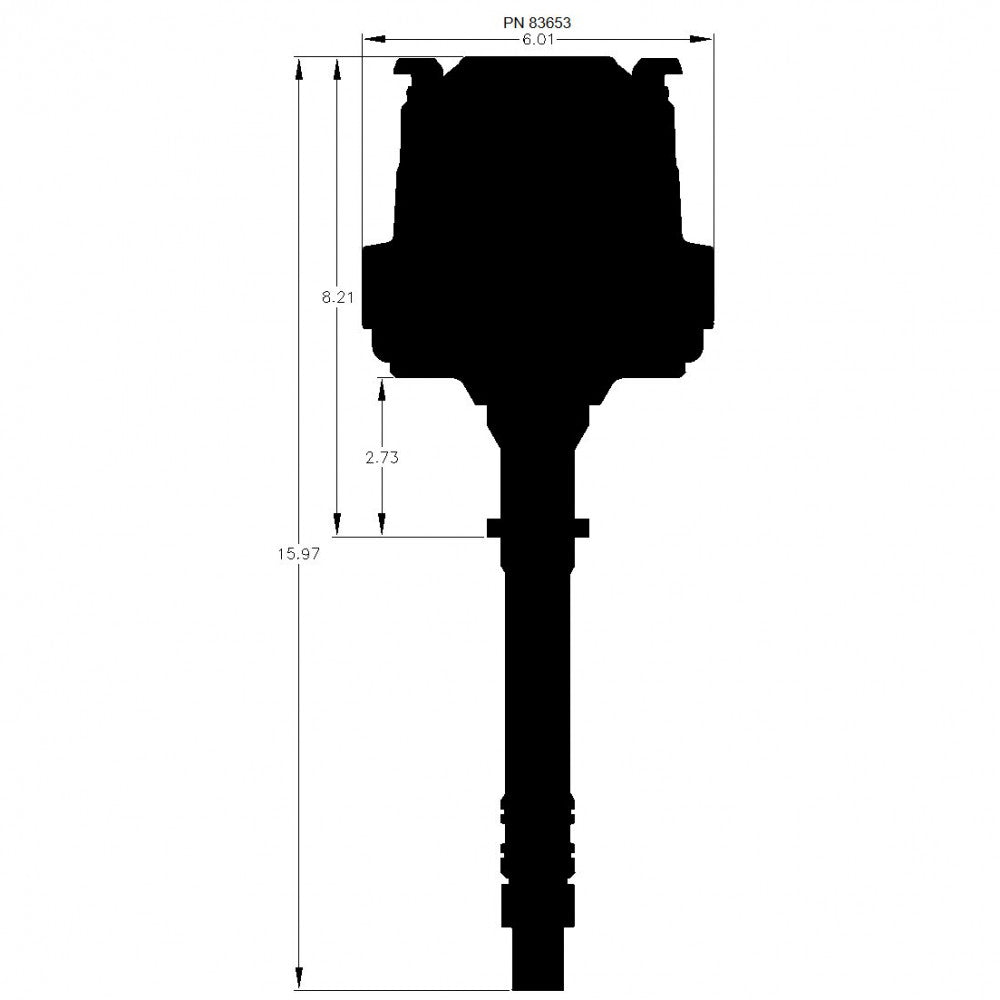

Notes: Designed to replace GM HEI distributors that use a 4-pin ignition module. Distributor is 8.5 in. tall from engine to top of distributor cap.
