Description

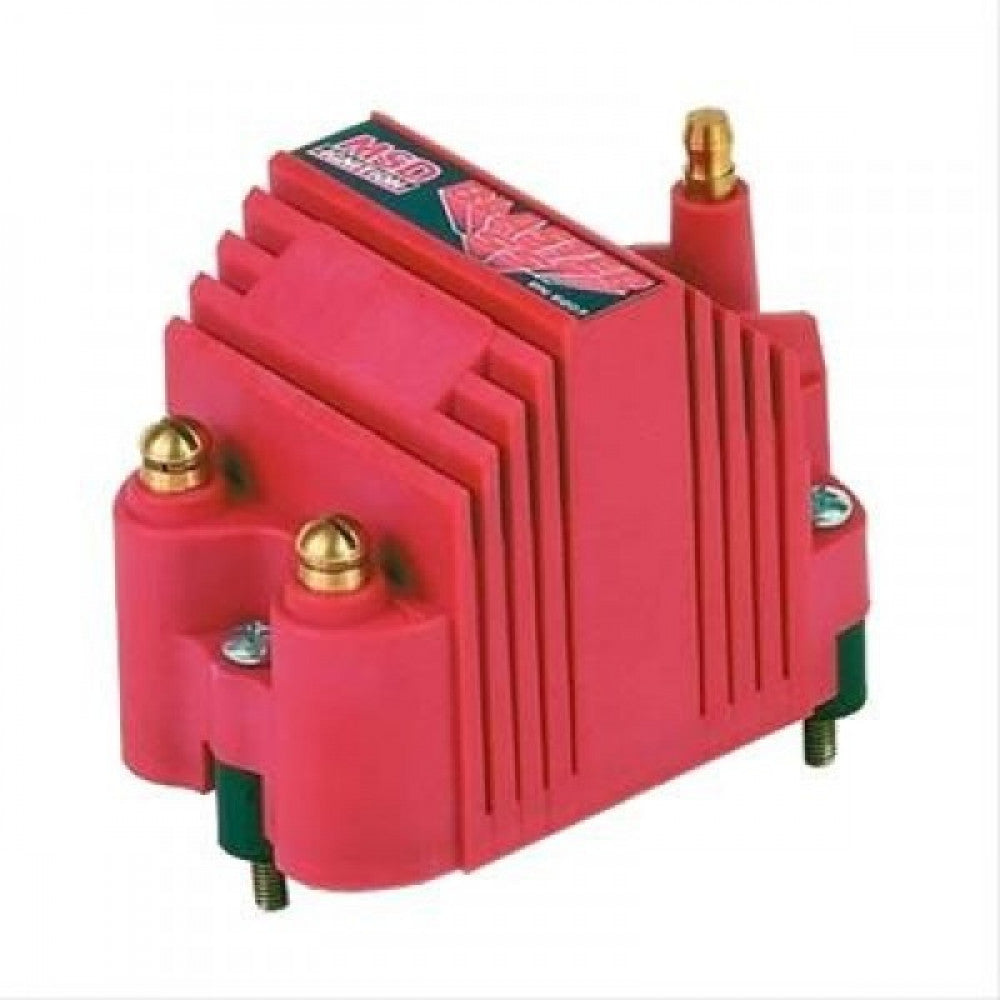

When used with an MSD 6 Series ignition, these MSD Blaster SS coils delivered 300 milliamps and 40,000 V of spark. The coils feature efficient E-core windings, brass terminals, and a durable Rynite housing.
Coil Wire Attachment: Male/HEI
Coil Style: E-core
Primary Resistance: 0.355 ohms
Coil Internal Construction: Epoxy
Coil Color: Red
Maximum Voltage: 40,000 V
Turns Ratio: 70:1
Secondary Resistance: 4.40K ohms
Inductance: 6.9 mH
Peak Current: 300 mA
Spark Duration: 220 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in): 2.650 in.
Length (in): 3.500 in.
Width (in): 2.230 in.
