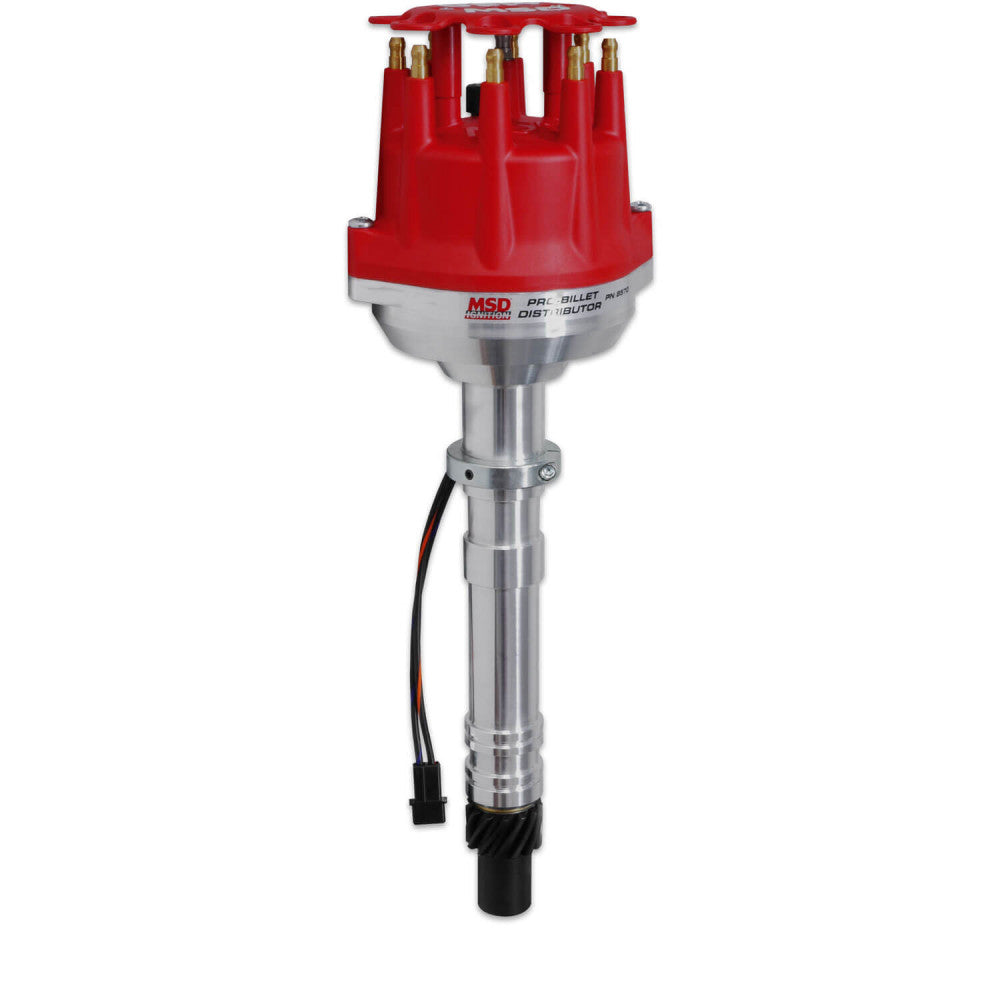

MSD Ignition Pro-Billet Small Cap Distributor Chevy V8 Red#MSD8570

This Distributor was designed for racers and street rodder that have space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. The distributor is 3/8" narrower and almost 1" shorter than a standard distributor.

Proven performance features include a high output magnetic pick-up and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application. Topping it all off is our own small diameter cap. This is molded out of durable Rynite material and comes with an optional wire retainer.

Chevy

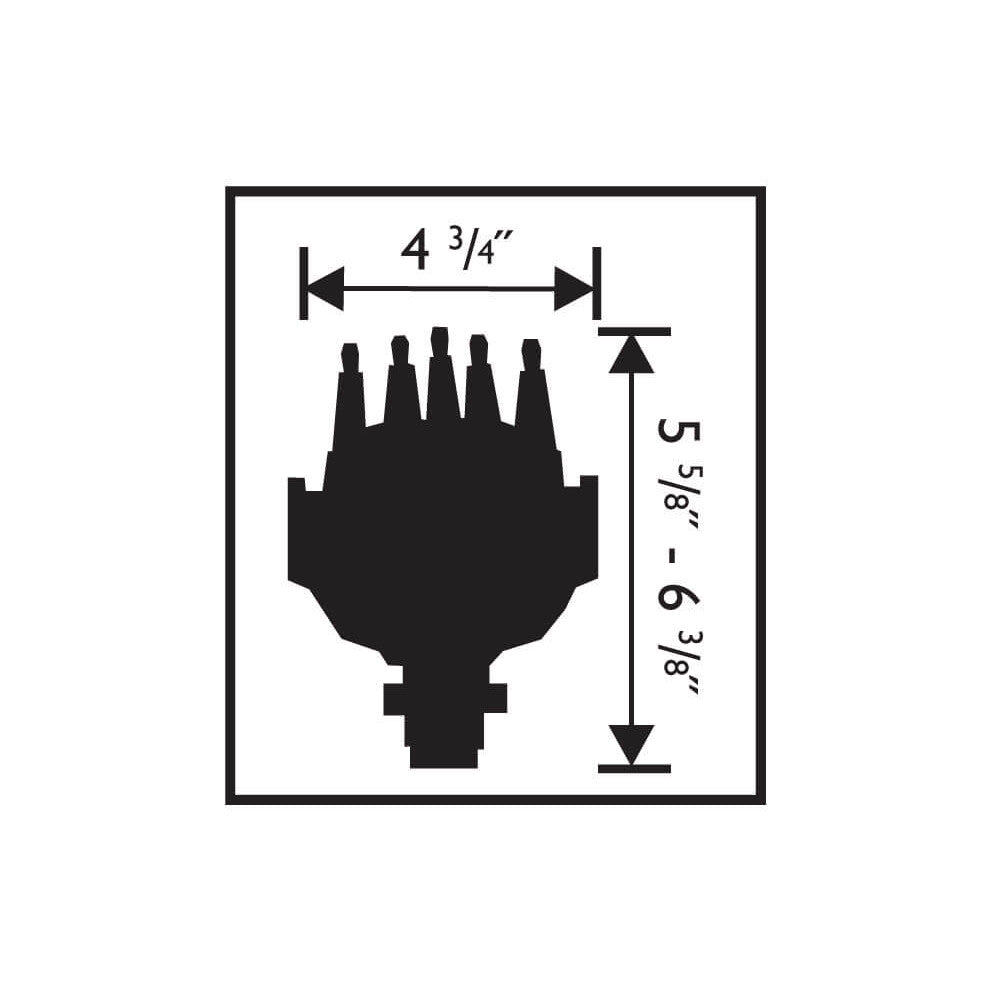

Distributor housing is 3/8" narrower and 7/8" shorter than conventional Chevy V8 distributors and designed for racers and street rodders with space limitations.

Features:
Distributor housing is 3/8" narrower and 7/8" shorter than conventional Chevy V8 distributors with the "Points" type cap
Supplied with small diameter HEI style distributor cap and rotor (will accept 121-8441 Cap-A-Dapt)
Will not accept a vacuum advance canister
Must be used with MSD 6, 7 or 8-Series Ignition
No CARB Exemption Order Number
Special oil tract improves lubrication to the distributor and cam gear
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

Specifications :

Product Type: Distributors

Product Line: MSD Pro-Billet Distributors

Computer-Controlled Compatible: No

Trigger Style: Magnetic

Advance Type: Mechanical

Ignition Box Required: Yes

Cap Style: Male/HEI

Mechanical Tach Drive: No

Slip Collar: Yes

Distributor Gear Material: Iron

Distributor Gear Rotation: Standard

Distributor Cap Color: Red

Housing Material: Billet aluminum

Housing Finish: Natural

Marine Use: No

Quantity: Sold Each

Notes: Small base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
