Description
FEATURES:

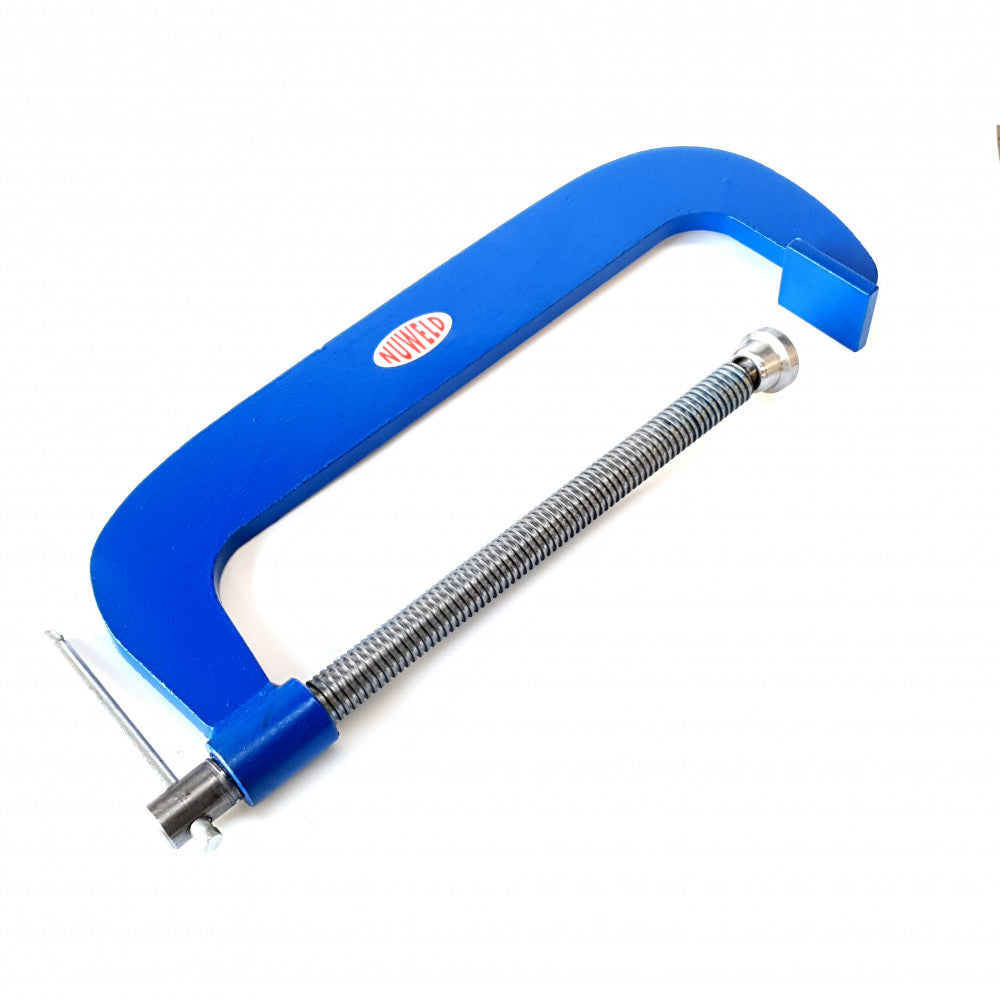

Heavy duty clamps made from steel plate
Nuweld clamps are renown for their quality and strength
Made in NZ these clamps are one of the most popular choices of trades people
The screw is manufactured from bright steel which is precision machined with ball end and heavy 6TPI Acme thread
Swive joint pad is machined from mild steel to suit ball end and fixed with circlip which allows for replacement if damaged
Made in NZ
Specs:
MAX JAW OPENING - 356MM
MAX THROAT OPENING - 112MM
MATERIAL - ALL STEEL CONSTRUCTION
WEIGHT - 7.5KG
Standard Throat
NOTES:
On 350mm Clamp the screw does not fully close
There will be a 50mm gap between Swivel pad and clamp foot. When screw fully wound up
Heavy duty clamps made from steel plate
Nuweld clamps are renown for their quality and strength
Made in NZ these clamps are one of the most popular choices of trades people
The screw is manufactured from bright steel which is precision machined with ball end and heavy 6TPI Acme thread
Swive joint pad is machined from mild steel to suit ball end and fixed with circlip which allows for replacement if damaged
Made in NZ
Specs:
MAX JAW OPENING - 356MM
MAX THROAT OPENING - 112MM
MATERIAL - ALL STEEL CONSTRUCTION
WEIGHT - 7.5KG
Standard Throat
NOTES:
On 350mm Clamp the screw does not fully close
There will be a 50mm gap between Swivel pad and clamp foot. When screw fully wound up
Product Documents
nuweld limited clamp e-brochure.pdfProduct Questions and Answers
