Description

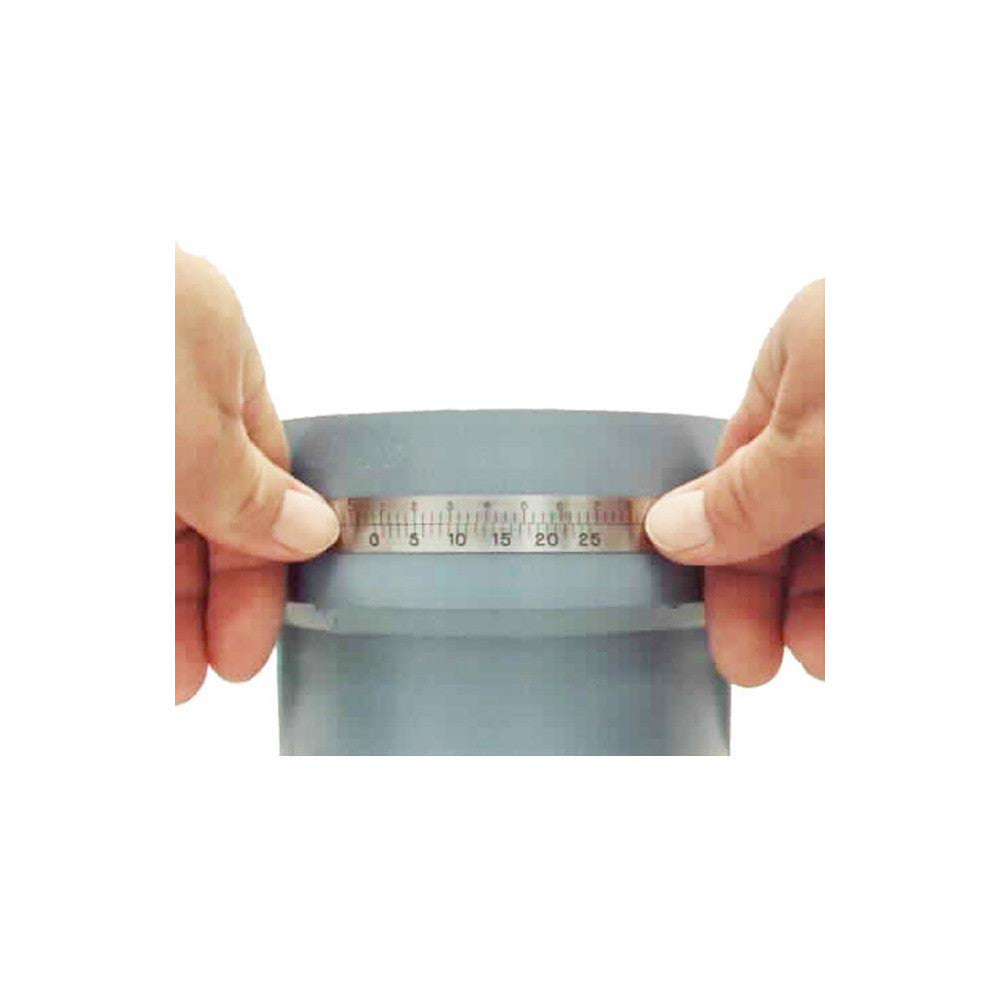

The P.I. diameter tape, or periphery tape as it is sometimes called, is used for measuring external or internal diameters - large of small - with accuracy; eliminating numerous micrometer or caliper readings and then finding the average of these by adding and dividing. Only one reading is necessary for both round and out of round diameters.
The large vernier reading is easily read to .001" or .01mm and each tape is checked on masters with certified accuracy of 0.03mm. By placing the tape around the outside circumference, diameters are read directly, but for internal diameters twice the tape thickness has to be subtracted. Small tapes are 0.15mm thick and larger 0.25mm.
Diameter : 28-200mm
Body : 12.7mm (Width)
Other metric sizes and imperial sizes available on indent.
The large vernier reading is easily read to .001" or .01mm and each tape is checked on masters with certified accuracy of 0.03mm. By placing the tape around the outside circumference, diameters are read directly, but for internal diameters twice the tape thickness has to be subtracted. Small tapes are 0.15mm thick and larger 0.25mm.
Diameter : 28-200mm
Body : 12.7mm (Width)
Other metric sizes and imperial sizes available on indent.
