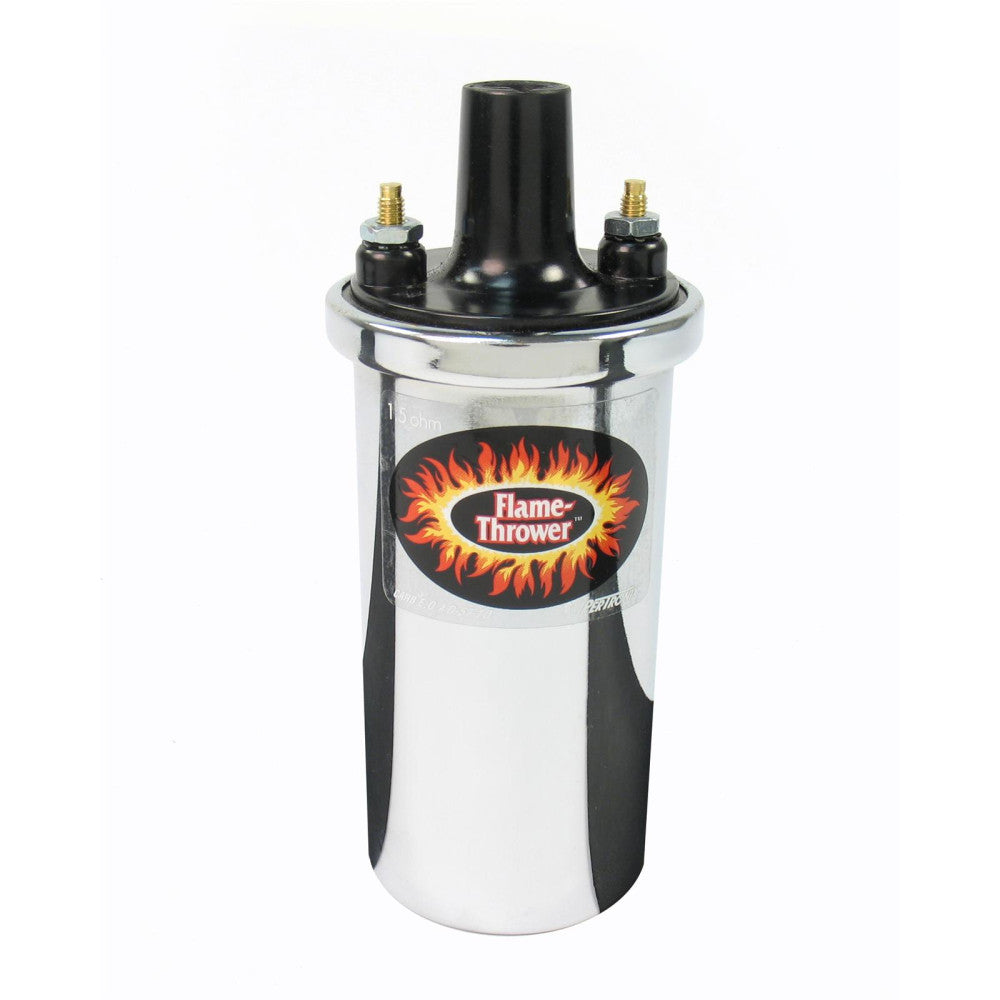

PerTronix Ignition Coil Flame-Thrower 1.5 Ohm 40,000 Volt Chrome#PER40001

PerTronix Flame-Thrower upgrades your stock coil to something with more wallop! Flame-Thrower coils deliver more than 40,000 V of spark energy to your plugs for fuller, more complete combustion. They're available in a variety of primary resistance ohm versions, with either oil-filled canisters—which keep their low-resistance windings secure and cool for reliable long-term performance—or epoxy-filled canisters for extra vibration protection. Flame-Throwers are available in chrome or black (epoxy, black only). Order the style and options preferred for your application.

Specifications :

Brand: PerTronix

Manufacturer's Part Number: 40001

Part Type: Ignition Coils

Product Line: PerTronix Flame-Thrower Ignition Coils

Coil Style: Remote mount

Primary Resistance: 1.500 ohms

Coil Internal Construction: Oil-filled

Coil Wire Attachment: Female/Socket

Coil Color: Chrome

Maximum Voltage: 40,000 V

Turns Ratio: 115:1

Secondary Resistance: 10.60K ohms

Inductance: 6.40 mH

Peak Current: 7.2 amps

Spark Duration: 1.5 mS

Mounting Bracket Included: No

Coil Wire Included: No

Ballast Resistor Included: No

Coil Shape: Round

Diameter (in.): 2.125 in.

Height (in.): 6.000 in.

Quantity: Sold individually.

Notes: For use with the original Pertronix Ignitor ignition. Can also be used with other induction ignition systems
