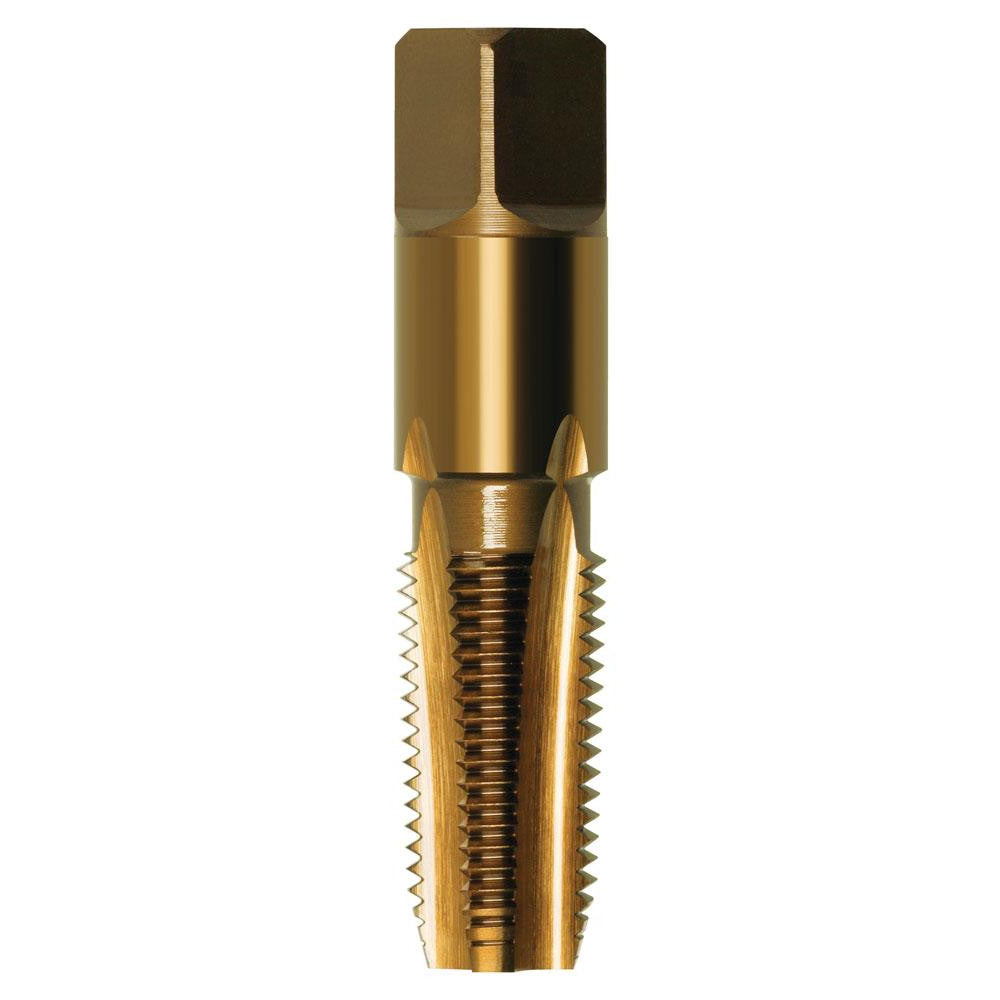

Description
The Pg thread series is designed specifically for conduit because on the thin wall section of the conduit tube in accordance to B.S.
The 80 degree included thread angle gives Pg thread a lower profile than other more common threads.
General purpose use, materials up to approx. 1000 N/mm2 Suitable for both hand and machine operations
Taper pipe reamer recommended prior to tapping.
Thread diameter 12.5mm
Threads per inch 20
Overall length 89mm
Cutting length 29mm
Drill diameter 11.3mm
The 80 degree included thread angle gives Pg thread a lower profile than other more common threads.
General purpose use, materials up to approx. 1000 N/mm2 Suitable for both hand and machine operations
Taper pipe reamer recommended prior to tapping.
Thread diameter 12.5mm
Threads per inch 20
Overall length 89mm
Cutting length 29mm
Drill diameter 11.3mm
