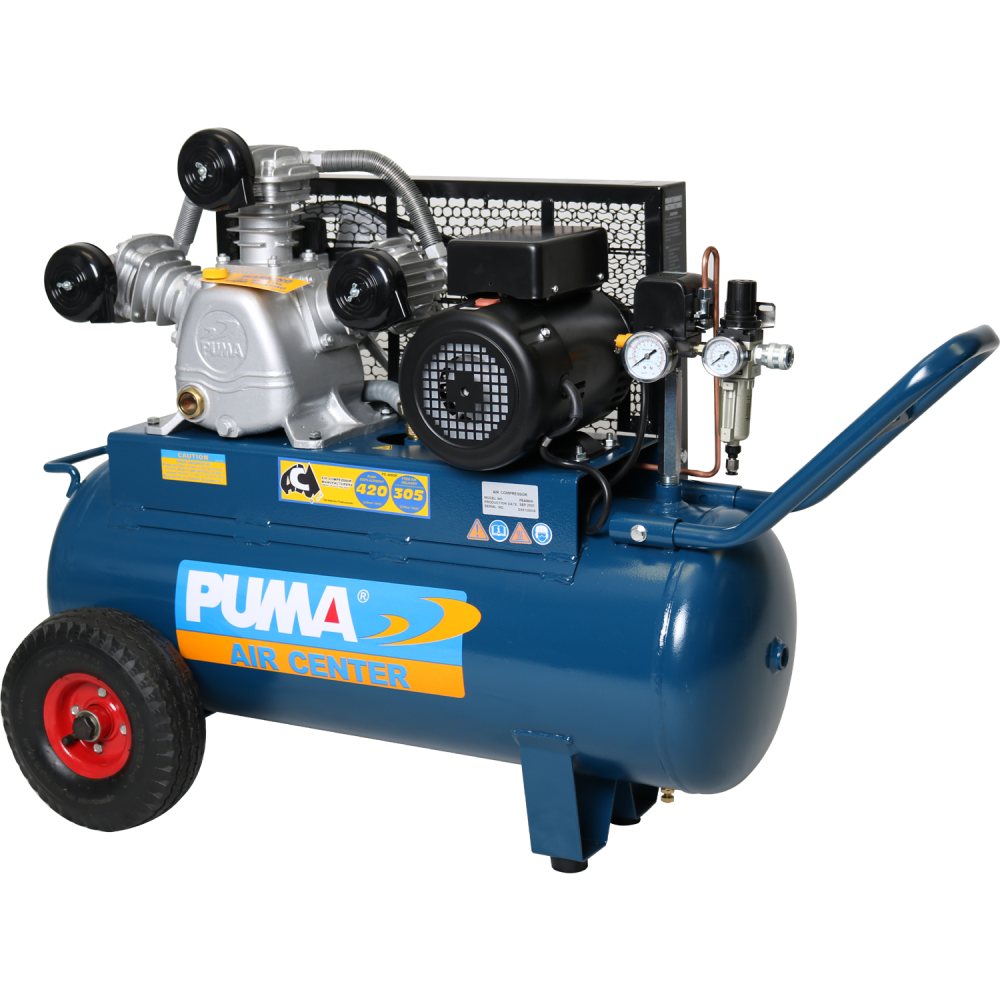

Description
Pump displacement: 420L/min (14.84 cfm)
Free Air Delivery: 305L/min (10.77 cfm)
Pump cylinders: 3
Pump speed: 1300 rpm
Pressure Cut In: 5.85 bar (85 psi)
Pressure Cut Out: 8 bar (115 psi)
Max Pressure Cut Out: 10.3 bar (150 psi)
Min Pressure Cut In: 2.4 bar (35 psi)
Pressure Differential: 2.07 – 2.76 bar (30-40 psi)
Tank Size: 58 Litres
Tank Approval: AS 1210: 1997 Class 3 + Amdt 3
Tank Design Verification Number: A 1730 V/01
Motor Size: 2200 Watts, 2830 rpm
Motor Type: Single Phase TECO (AUSTRALIA)
Motor Rated Current: 12.5 Amps
Motor Current Draw at Cut Out (approx.): 10.8 Amps
Motor Dimensions
Length: 110cm
Width: 50cm
Height: 77cm
Weight: 83kg
