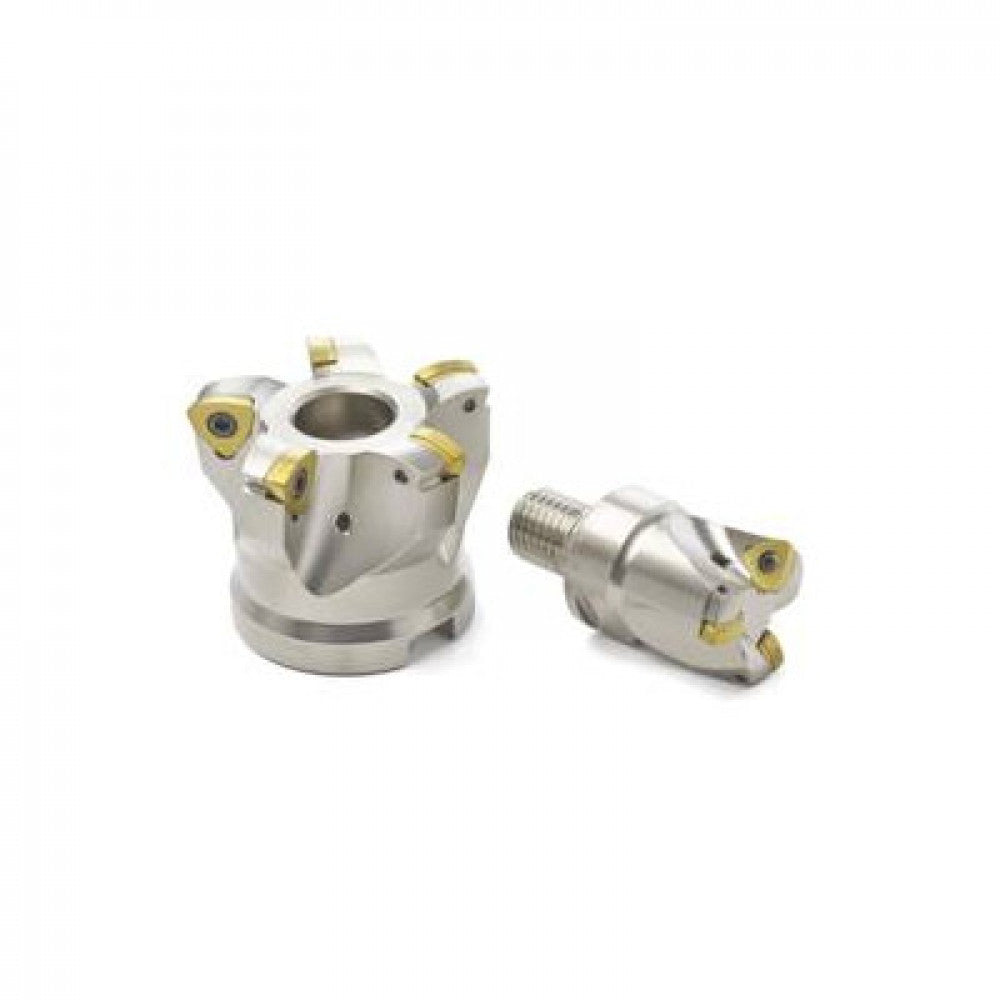

R220.21-0063-R160.5A High Feed Face Milling Cutter Uses 218.19-160 Insert

63mm Arbor Mount Cutter. 27mm Bore Arbor Mount. Uses 5 x 218.19-160 InsertsSeco® High Feed solution – 217/220.21 and Minimaster® – are tools for very high metal removal rates and increased productivity. Compared with round insert cutters, which are perfect for copy milling when using small overhang and/or machining under stable conditions, the High Feed cutters are superior when machining in deep pockets with long overhang and/or machining under unstable conditions depending on either the machined component or the long overhang of the machine. The reason is reduced vibrations thanks to a favorable direction of the cutting forces. The High Feed cutters are flexible tools for pocketing and plunging, specially designed for maximum metal removal rates under unfavorable conditions. STABLE AND PRODUCTIVE High Feed cutters have both predictable and very long tool life due to the forces being directed towards the spindle which maximizes process stability. Thanks to body and insert geometries, a wide range of component materials can be machined. The total machining time can be reduced up to 60%. PRODUCT ADVANTAGES Pocketing with High Feed Cutters is the most effective and productive roughing method for unstable conditions, extremely high metal removal rates can be reached. Perfect for boosting productivity in applications like pocketing where you can use very high feed rates during a difficult machining. PRODUCT RANGE Seco Tools has a very wide range of High Feed Cutters. The widest range on the market. From diameter 8–100 mm (.625" - 8.0"). Minimaster High Feed inserts are available from diameter 8–16 mm. Cutters with indexable inserts range from diameter 8 –100 mm (.625" - 8.0"). for shank types and arbor mounting. They are also available with the Seco Combimaster milling cutter system including different shank types, shank lengths and interchangeable cutter heads.
