Description
Features and Benefits

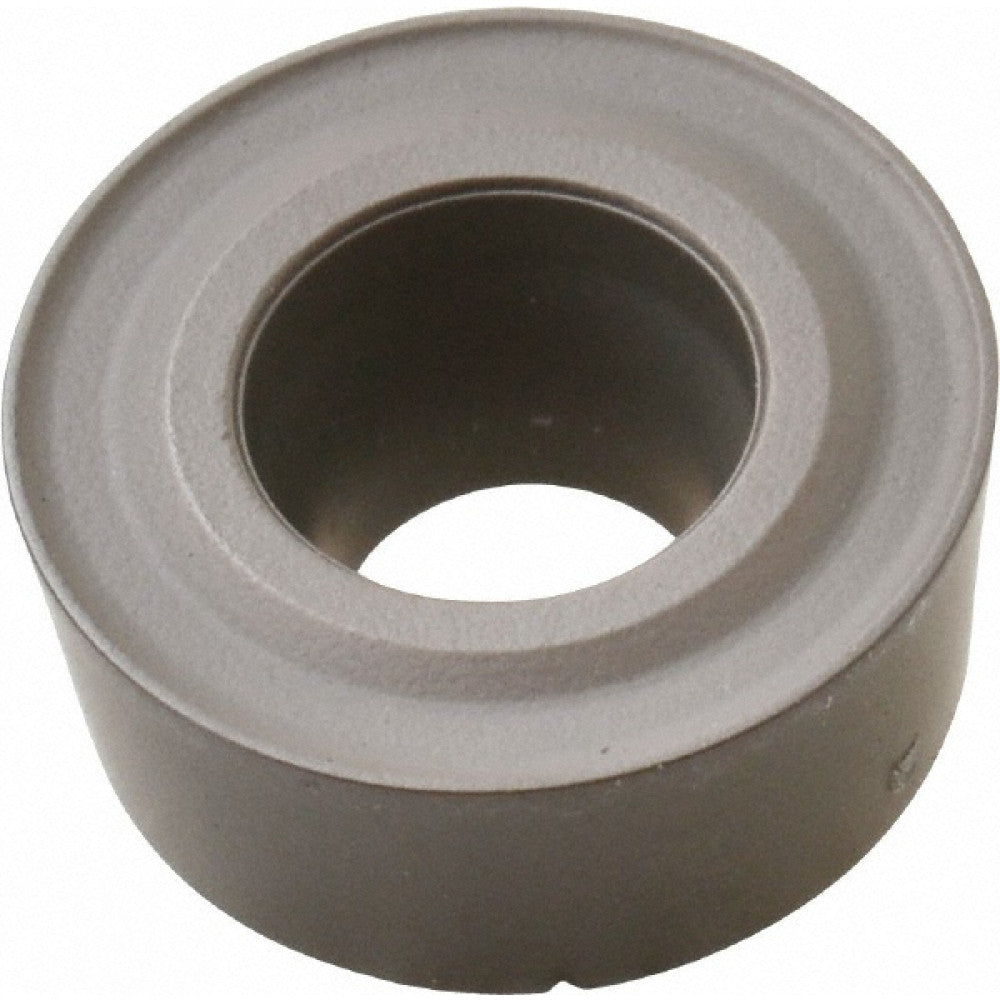

Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Specs
Insert Style
RCMT
Insert Size
1606M0
Material
Carbide
Thickness (Inch)
1/4
Thickness (Decimal Inch)
0.2500
Inscribed Circle (mm)
16.00
Manufacturer's Grade
TP3501
Coating
TiCN/Al2O3
Material Grade
C4/C5
Chip breaker
M3
Rake
Positive
Relief Angle
7
Coating Process
Duratomic
Cutting Direction
Neutral
Insert Hand
Neutral
Insert Holding Method
Screw
FullRadius
Yes
MultiUseTool
Yes
Shape
Round
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Specs
Insert Style
RCMT
Insert Size
1606M0
Material
Carbide
Thickness (Inch)
1/4
Thickness (Decimal Inch)
0.2500
Inscribed Circle (mm)
16.00
Manufacturer's Grade
TP3501
Coating
TiCN/Al2O3
Material Grade
C4/C5
Chip breaker
M3
Rake
Positive
Relief Angle
7
Coating Process
Duratomic
Cutting Direction
Neutral
Insert Hand
Neutral
Insert Holding Method
Screw
FullRadius
Yes
MultiUseTool
Yes
Shape
Round
