Description

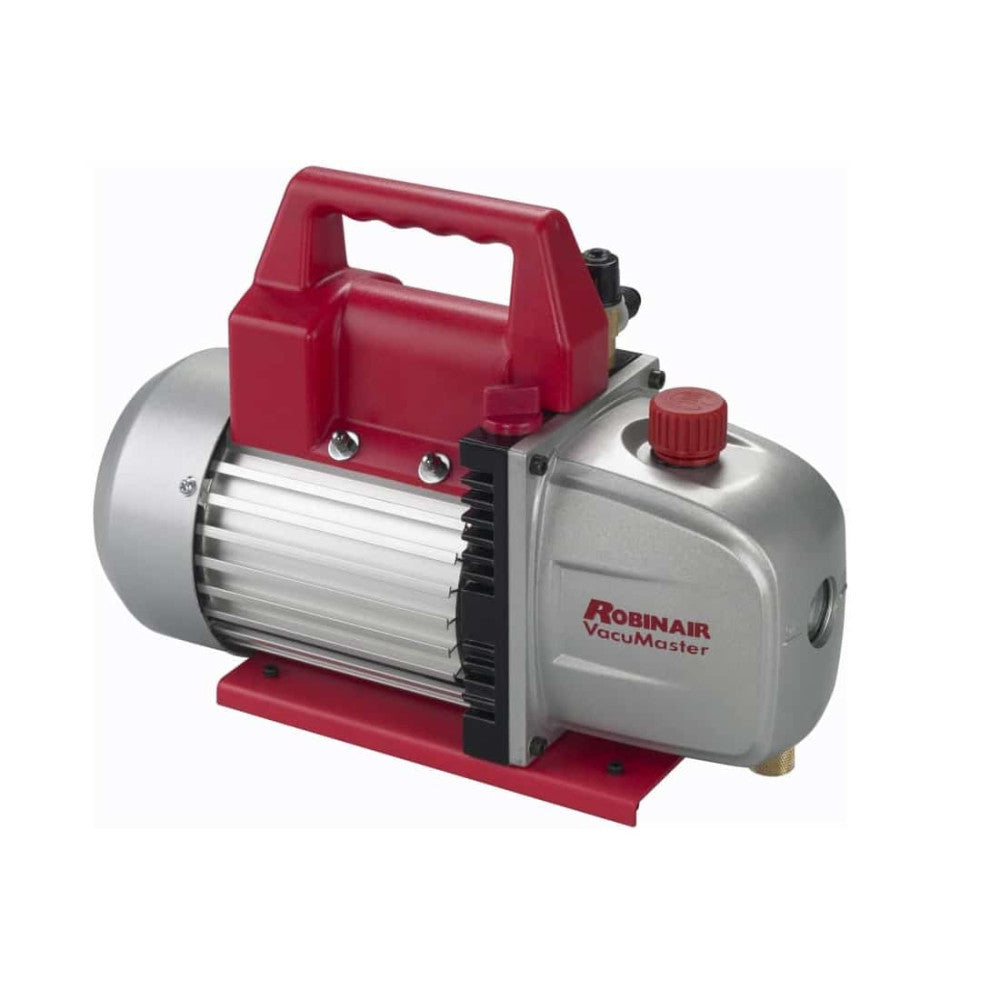

The Robinair 15301 vacuum pump that's fast and thorough and saves you not only time but also the expense of callbacks and dissatisfied customers.Robinair's 15301 VacuMaster Vacuum Pump is engineered specifically to meet the needs of the kind of A/C work you're doing today and to give you trouble-free operation. Robinair has put their years of experience and know-how into developing pumps that help you do the job faster and better. Laboratory tests show that Robinair vacuum pumps consistently outperform other major brands.
FEATURES:
2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
Angled oil drain valve: faster, more complete draining
Easy view sight glass: Easily see oil levels
Top oil fill port: Better access when refilling oil
Cast aluminium body: Lightweight and durable die-cast aluminium reduces weight and creates a strong, durable pump
Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
Intake screen: Prevents foreign matter from entering the pumping chamber. External exhaust filter separates oil vapour from the exhaust flow
Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
Not for use with ammonia or lithium bromide systems
Not for use with A2L or other flammable refrigerants
INCLUDES:
1 x RA-15301A-E Vacuum Pump and 12-month warranty.
SPECIFICATIONS:
Cable length: 1.8 m
Dimensions (L x W x H): 335 x 140 x 255 mm
Number of stages: 2 stages
Tube connection: 1/4"' und 3/8"' Bördel SAE MFL UNF
Vacuum: 15 Micron
Frequency range: 50 Hz
Supply voltage: 230/1/50 V/Ph/Hz
Weight: 9.5 kg
Power: 450 W
Suction capacity: 84 l/min
Oil charge: 450 ml.
FEATURES:
2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
Angled oil drain valve: faster, more complete draining
Easy view sight glass: Easily see oil levels
Top oil fill port: Better access when refilling oil
Cast aluminium body: Lightweight and durable die-cast aluminium reduces weight and creates a strong, durable pump
Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
Intake screen: Prevents foreign matter from entering the pumping chamber. External exhaust filter separates oil vapour from the exhaust flow
Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
Not for use with ammonia or lithium bromide systems
Not for use with A2L or other flammable refrigerants
INCLUDES:
1 x RA-15301A-E Vacuum Pump and 12-month warranty.
SPECIFICATIONS:
Cable length: 1.8 m
Dimensions (L x W x H): 335 x 140 x 255 mm
Number of stages: 2 stages
Tube connection: 1/4"' und 3/8"' Bördel SAE MFL UNF
Vacuum: 15 Micron
Frequency range: 50 Hz
Supply voltage: 230/1/50 V/Ph/Hz
Weight: 9.5 kg
Power: 450 W
Suction capacity: 84 l/min
Oil charge: 450 ml.
