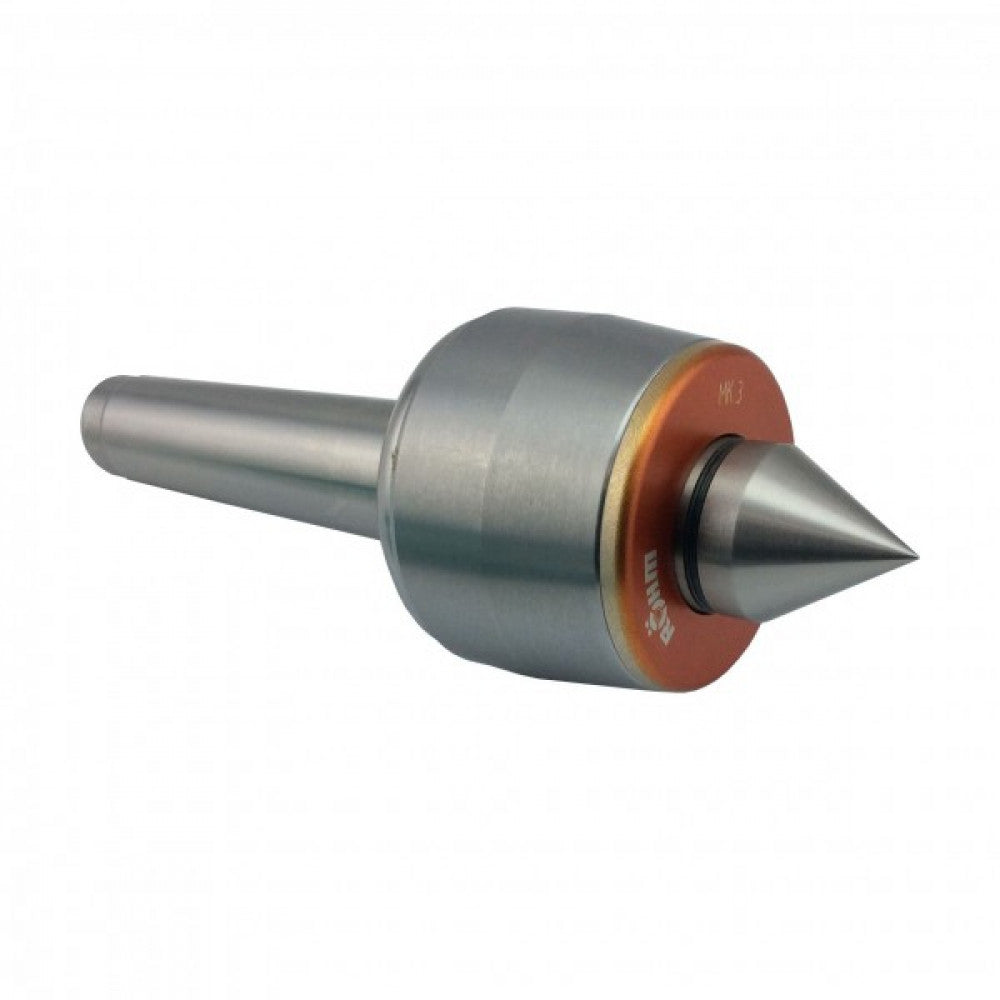

Description
Features:
High runout accuracy
Triple bearing method
Center hardened, repeated regrinding at will
Long life due to:
Splash water groove
Improved life-time lubrication
Close toleranced bearing seat
Lower interference shape due to slim housing

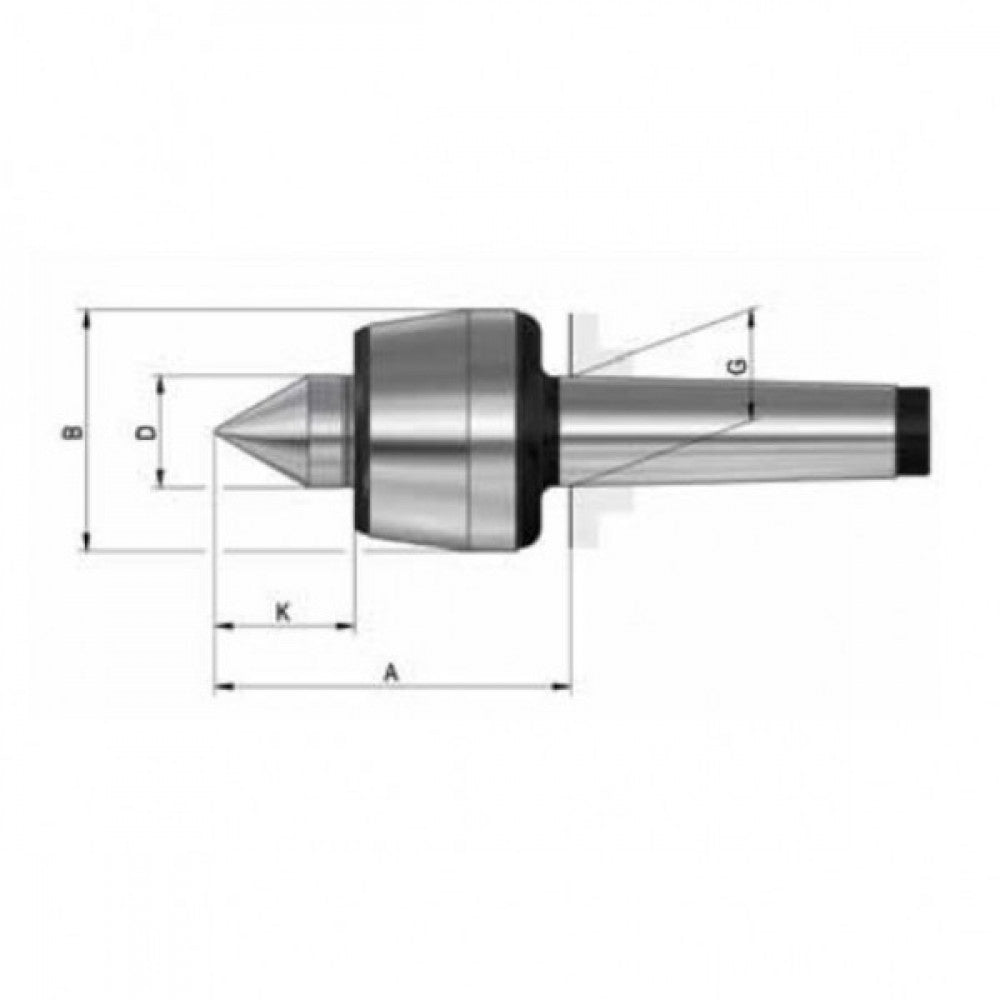

Specifications:
Morse taper 4
Body diameter (B) 68.5mm
Point diameter (D) 32mm
Length to taper (A) 101.5
Point length (K) 39.8mm
Morse taper diameter (G) 31.267
Max speed 6000
Concentricity deviation 0.005
Workpiece weight max. 500kg
High runout accuracy
Triple bearing method
Center hardened, repeated regrinding at will
Long life due to:
Splash water groove
Improved life-time lubrication
Close toleranced bearing seat
Lower interference shape due to slim housing
Specifications:
Morse taper 4
Body diameter (B) 68.5mm
Point diameter (D) 32mm
Length to taper (A) 101.5
Point length (K) 39.8mm
Morse taper diameter (G) 31.267
Max speed 6000
Concentricity deviation 0.005
Workpiece weight max. 500kg
