Description
Spectrolines BizEZ Dye set is easy to use & has endorsements from a number of global manufacturers. Spectroline fluorescent dyes make finding leaks a breeze.
BENEFITS:
For all AC&R systems, including high-pressure R-410A systems! Compatible with Mineral Oil, PVE, Polyol Ester & Alkyl Benzene Lubricant Systems.
Cost-effective for medium to large size systems — Each prefilled, disposable 4 oz (118 ml) BigEZ dye cartridge treats up to 16 gallons (60.8 L) of lubricant, 400 lbs (180 kg) of refrigerant or 150 tons of cooling.
No pouring, no refrigerant, no spills — Prefilled Big-EZ™ cartridges are clearly labelled with 32 calibrations so you’ll introduce exactly the right amount of dye every time! When the cartridge is empty, just throw it away. A new one connects in seconds.
Check valve prevents the backflow of dye or refrigerant & allows for easy storage of the hose/cartridge between jobs. It also prevents dye leakage or contamination. Torque
from the Big-EZ™ assembly easily overcomes AC&R system pressure, even with R-410A.
HOW IT WORKS:
Install the cartridge, then connect the injector hose to the system’s low-side service port. Turn the hole to inject the exact amount of dye required & let it circulate.
Scan the system with a Spectroline® inspection lamp. The precise location of all leaks will be shown by a bright, yellow-green glow.
INCLUDES:

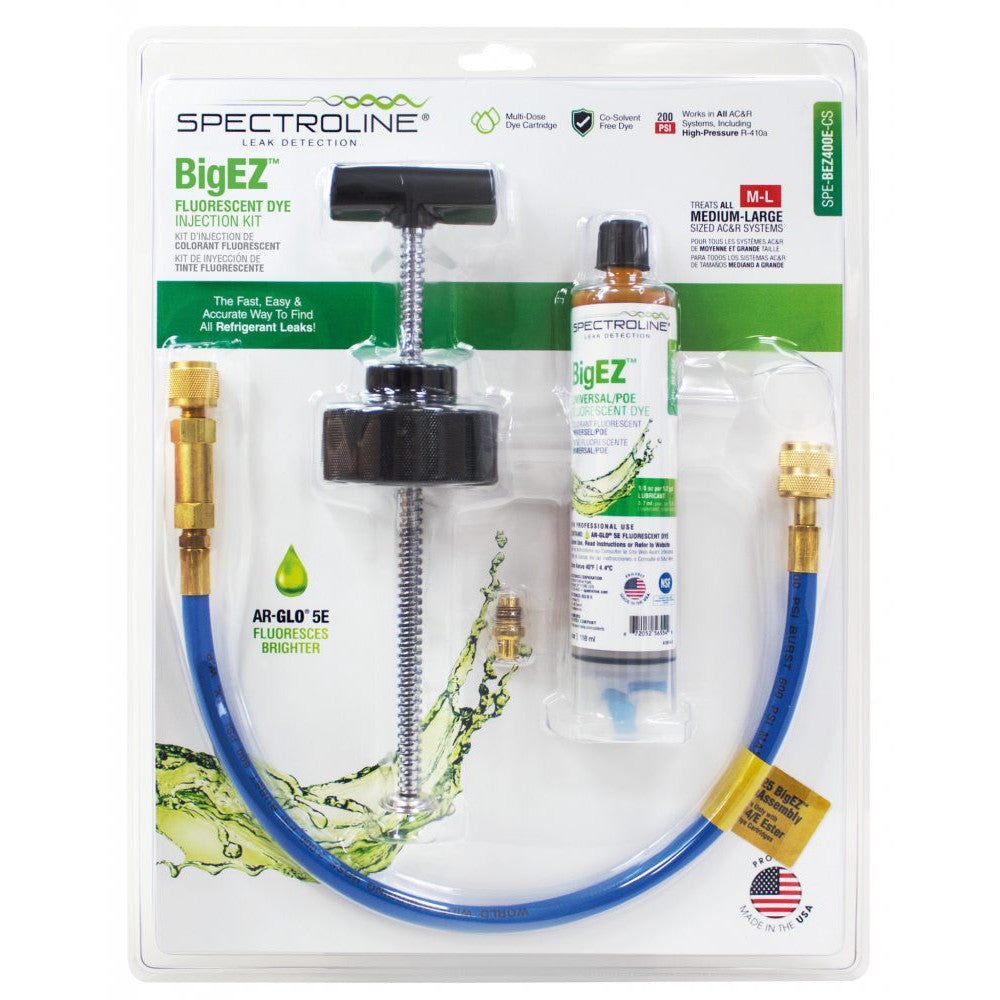

BigEZ Dye Injector, Universal/POE Multi-Dose 4 oz (118 ml) Dye Cartridge, Hose Assembly with Check Valve & Low-Loss Fitting.
SPECIFICATIONS:
Item: BigEZ™ Fluorescent Dye Injection Kit
Typical Application: For Medium to Large Size System
Amount of Oil in System: One per 1/2 gallon of Oil
Amount of Refrigerant: One per 5 tonnes
Dye Type: Universal/POE
Type of Compressor Oil: POE, Alkylbenzene, or Mineral
Manufacturer’s Warranty Length: 1 Year
Country of Origin: USA.
BENEFITS:
For all AC&R systems, including high-pressure R-410A systems! Compatible with Mineral Oil, PVE, Polyol Ester & Alkyl Benzene Lubricant Systems.
Cost-effective for medium to large size systems — Each prefilled, disposable 4 oz (118 ml) BigEZ dye cartridge treats up to 16 gallons (60.8 L) of lubricant, 400 lbs (180 kg) of refrigerant or 150 tons of cooling.
No pouring, no refrigerant, no spills — Prefilled Big-EZ™ cartridges are clearly labelled with 32 calibrations so you’ll introduce exactly the right amount of dye every time! When the cartridge is empty, just throw it away. A new one connects in seconds.
Check valve prevents the backflow of dye or refrigerant & allows for easy storage of the hose/cartridge between jobs. It also prevents dye leakage or contamination. Torque
from the Big-EZ™ assembly easily overcomes AC&R system pressure, even with R-410A.
HOW IT WORKS:
Install the cartridge, then connect the injector hose to the system’s low-side service port. Turn the hole to inject the exact amount of dye required & let it circulate.
Scan the system with a Spectroline® inspection lamp. The precise location of all leaks will be shown by a bright, yellow-green glow.
INCLUDES:
BigEZ Dye Injector, Universal/POE Multi-Dose 4 oz (118 ml) Dye Cartridge, Hose Assembly with Check Valve & Low-Loss Fitting.
SPECIFICATIONS:
Item: BigEZ™ Fluorescent Dye Injection Kit
Typical Application: For Medium to Large Size System
Amount of Oil in System: One per 1/2 gallon of Oil
Amount of Refrigerant: One per 5 tonnes
Dye Type: Universal/POE
Type of Compressor Oil: POE, Alkylbenzene, or Mineral
Manufacturer’s Warranty Length: 1 Year
Country of Origin: USA.
