Description

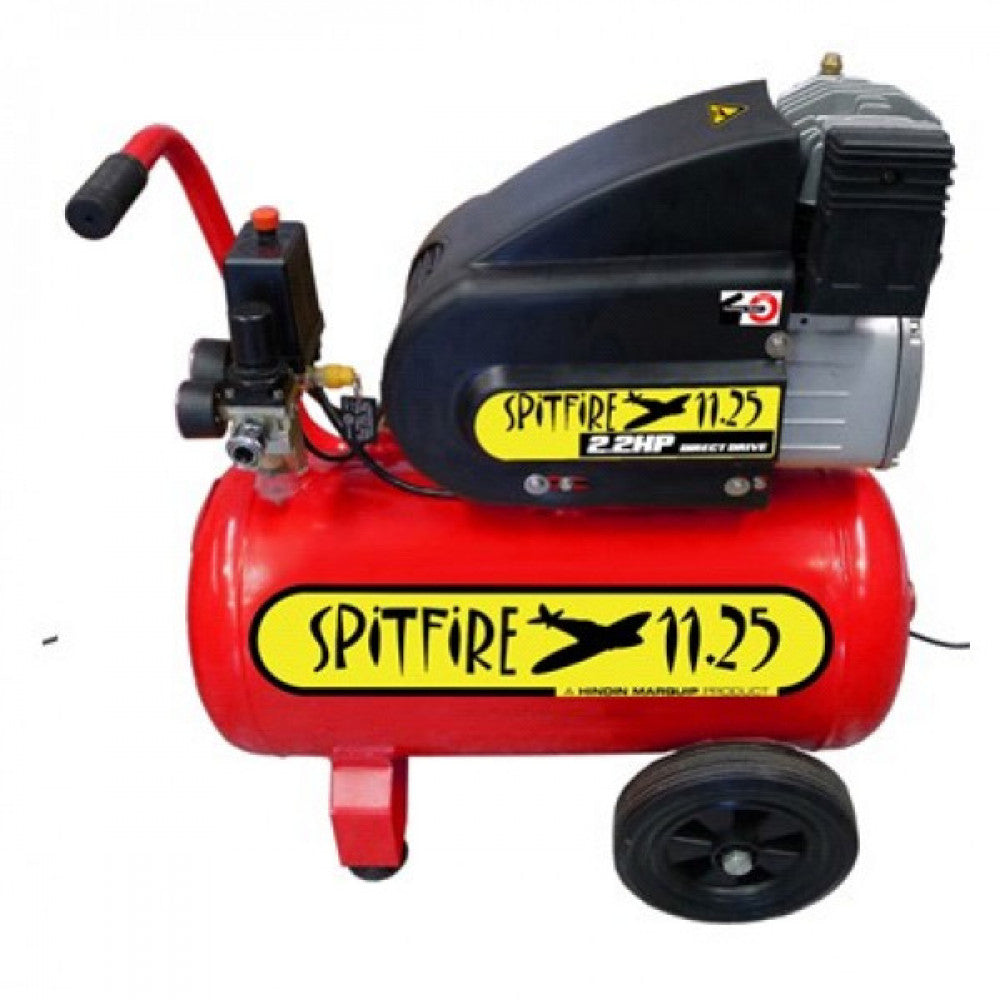

Spitfire direct drive compressor
All electric models feature:
Cast iron cylinder and steel valves
Pressure switch control
High efficiency copper wound Electric motor
Large solid 200mm wheels
Aftercooler and soft start valve
Copper delivery pipe
Filter Regulator fitted with Hi Flo coupler
10amp plug
Technical data
Air receiver: 25 litres
Free air delivery: 126 lpm (4.5 cfm) @ 7bar
Max. pressure: 8 bar/ 116 psi
Power: 1.65 KW/ 2.2 HP
Pump: SP190
Dimensions (L x W x H): 42 x 36 x 69 cm
Weight: 28 kg
All electric models feature:
Cast iron cylinder and steel valves
Pressure switch control
High efficiency copper wound Electric motor
Large solid 200mm wheels
Aftercooler and soft start valve
Copper delivery pipe
Filter Regulator fitted with Hi Flo coupler
10amp plug
Technical data
Air receiver: 25 litres
Free air delivery: 126 lpm (4.5 cfm) @ 7bar
Max. pressure: 8 bar/ 116 psi
Power: 1.65 KW/ 2.2 HP
Pump: SP190
Dimensions (L x W x H): 42 x 36 x 69 cm
Weight: 28 kg
