Description

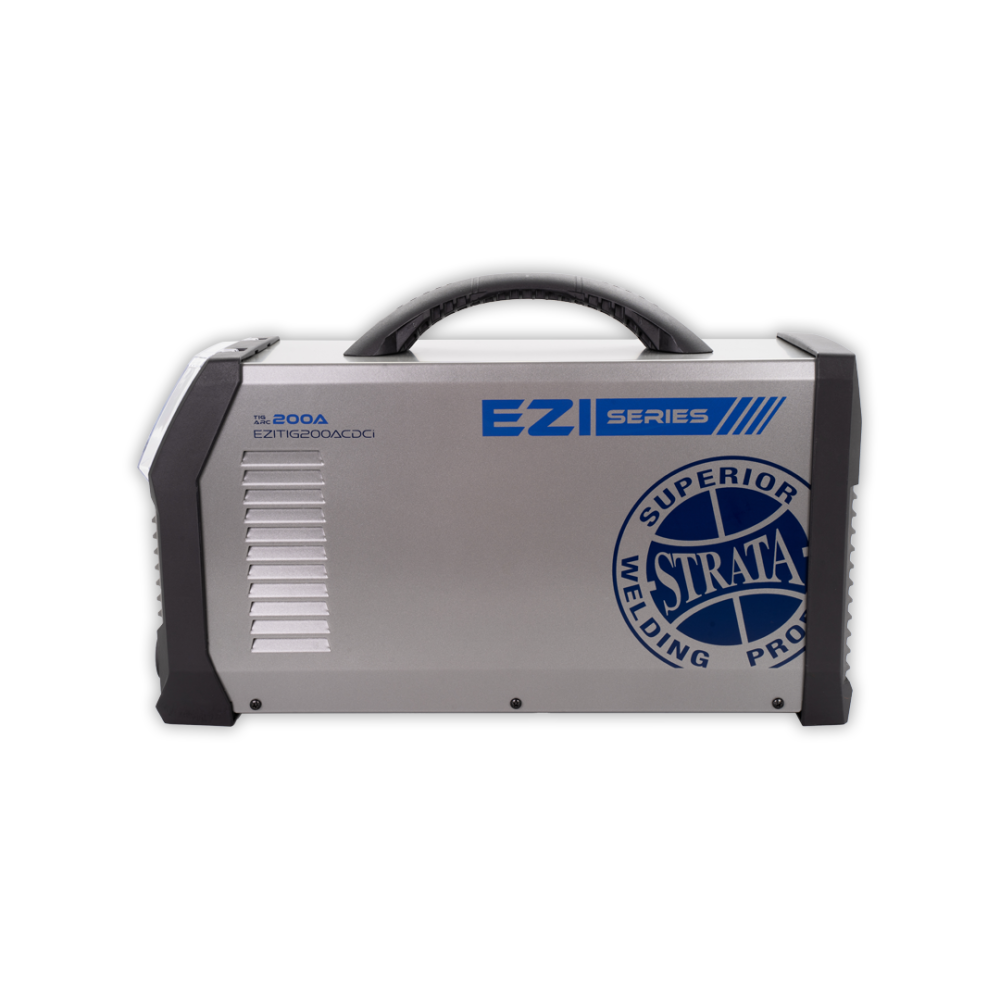

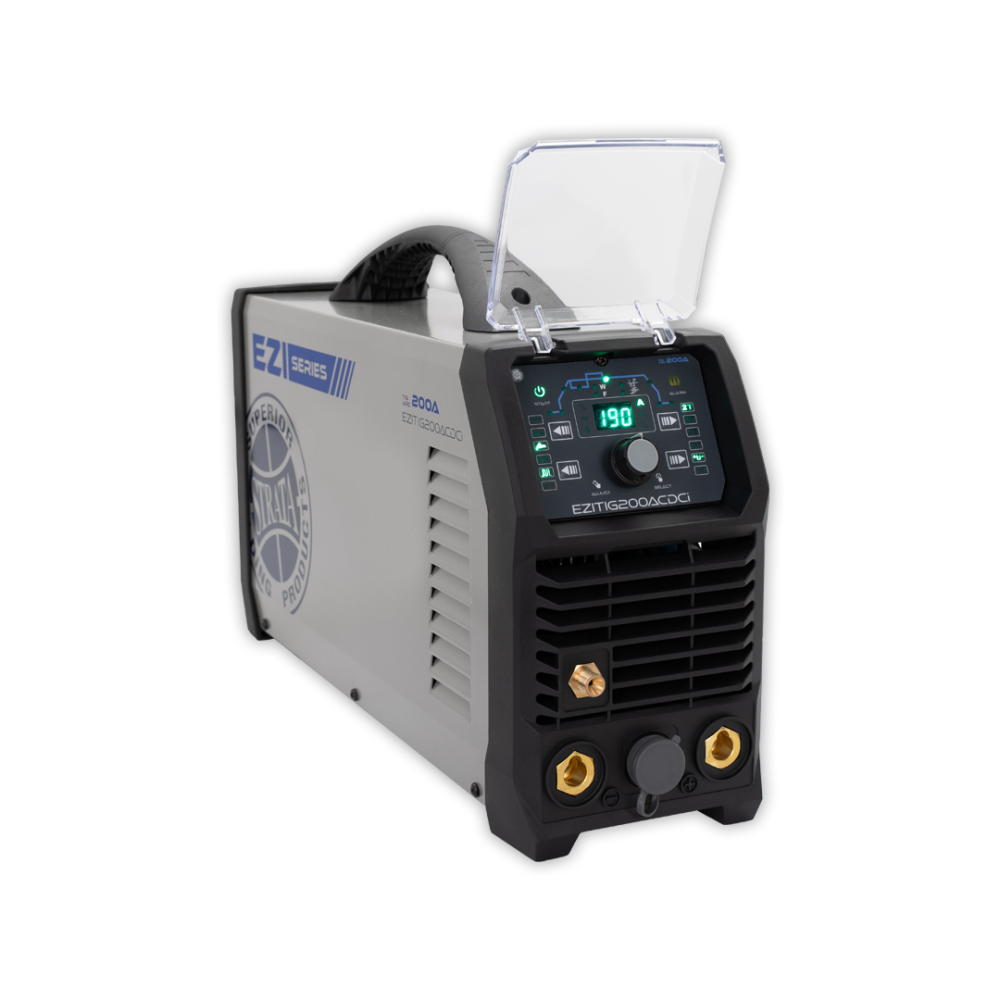

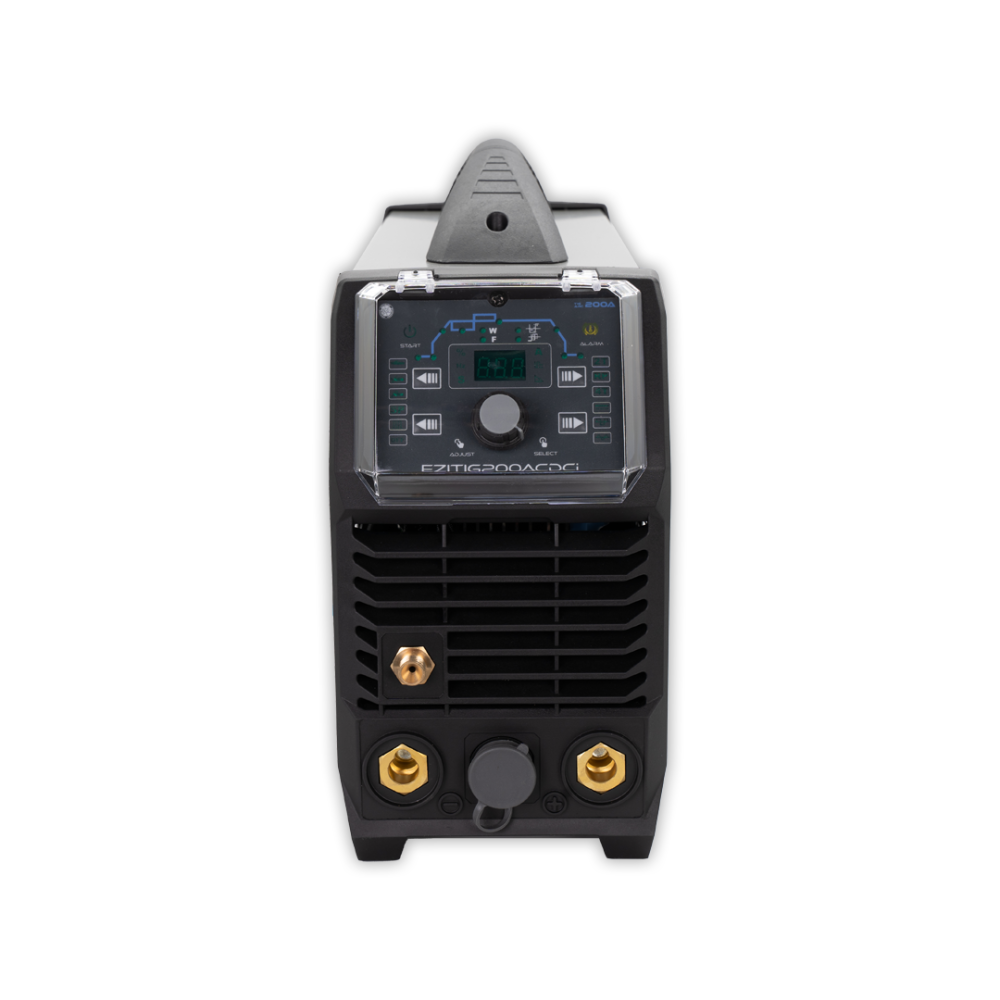

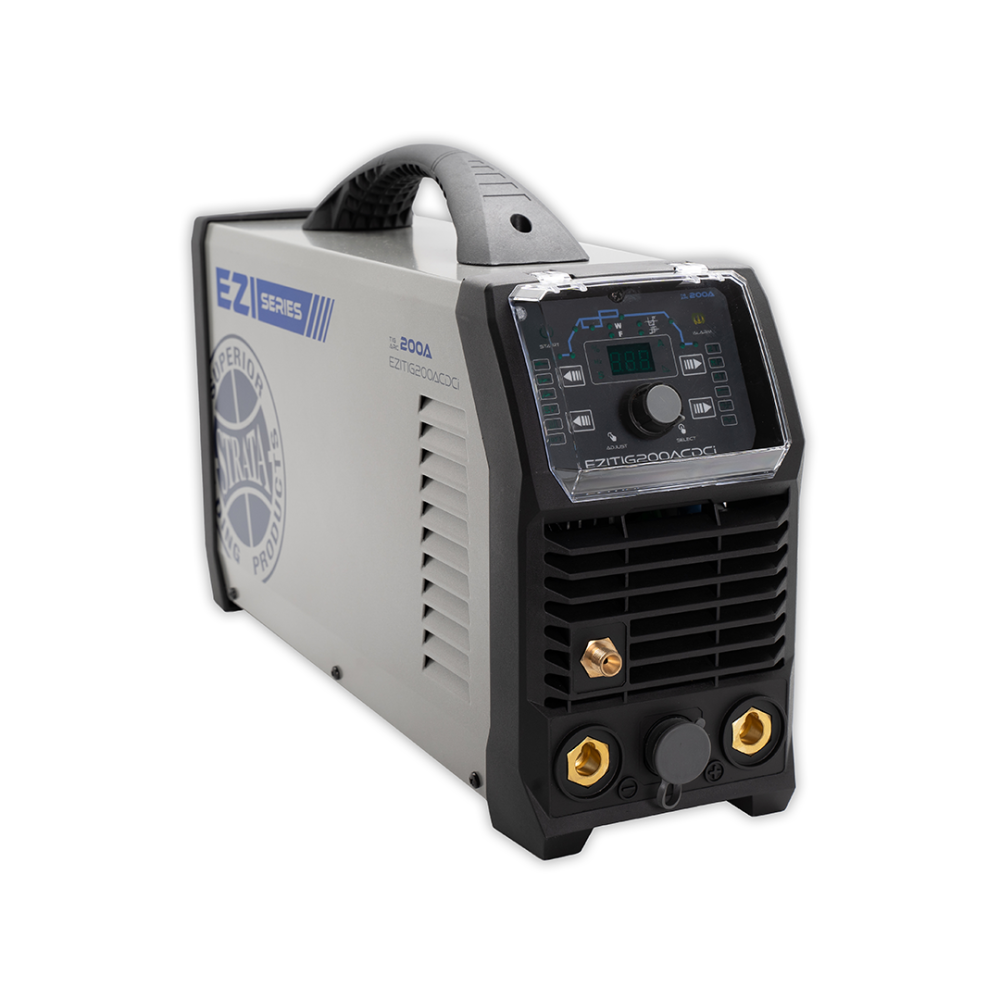

With a 200A output, this welder ensures a smooth, stable arc for superior results in any aluminum welding application. Features like AC frequency adjustment and spot welding mode provide the versatility needed for precision work. Lightweight and compact, this is the ultimate tool for on-the-go professionals.
Max Output (Tig/Arc) - 200A
Max Electrode Size - 4.0mm
Input Power Supply - 15A 230V
IGBT Inverter Technology
Digital Microprocessor Control System - Accurate and reliable setting of control parameters
AC Sine & Square Wave options with adjustable frequency up to 250hz - Versatility for excellent welding performance in any aluminium welding application
Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment2T, 4T & Bi-Level Trigger Control Modes - Ease of operator use for all job applications
Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
Wired & Wireless Foot Pedal Control Option (foot control optional extra)
Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
Spot Welding Mode - Special feature for welding very thin material without heat distortion
Industrial casing with front panel protection - Resistant to damage, moisture and corrosion
Lightweight & Compact Design - Ideal for portable site work applications
MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding
Designed to work with generator power supply and protect from power surges.
Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
Production tested with 440V - Extreme stress testing in production for rugged reliability
Quick connect inlet gas fittingĀ
Product Documents
strata_ezitig200acdci pos.pdf
