Description

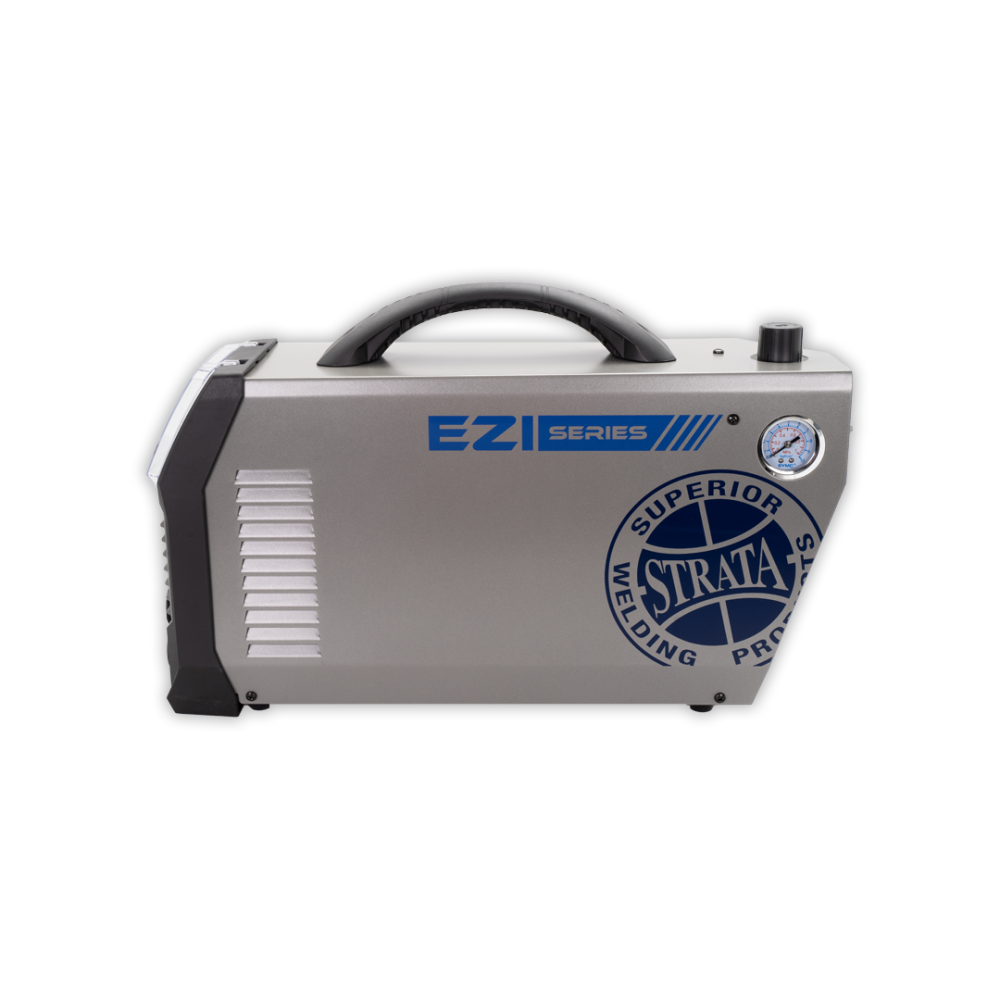

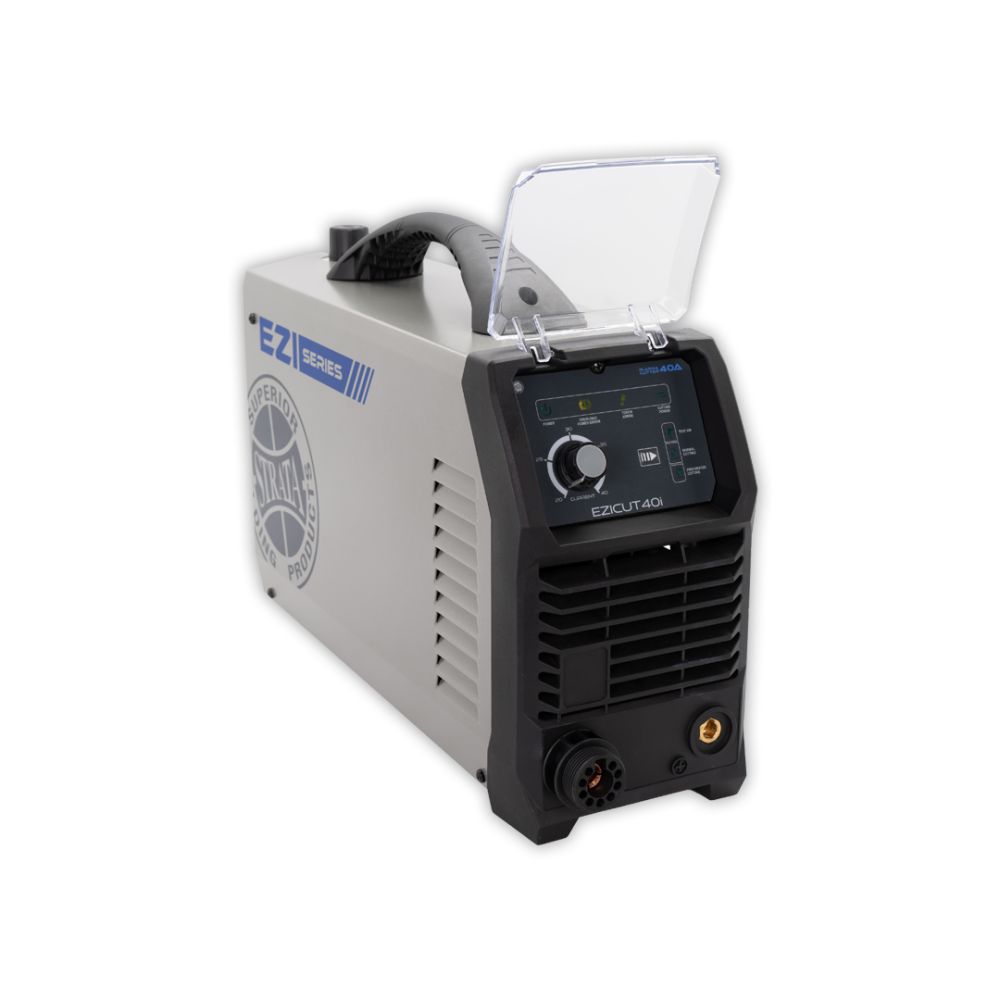

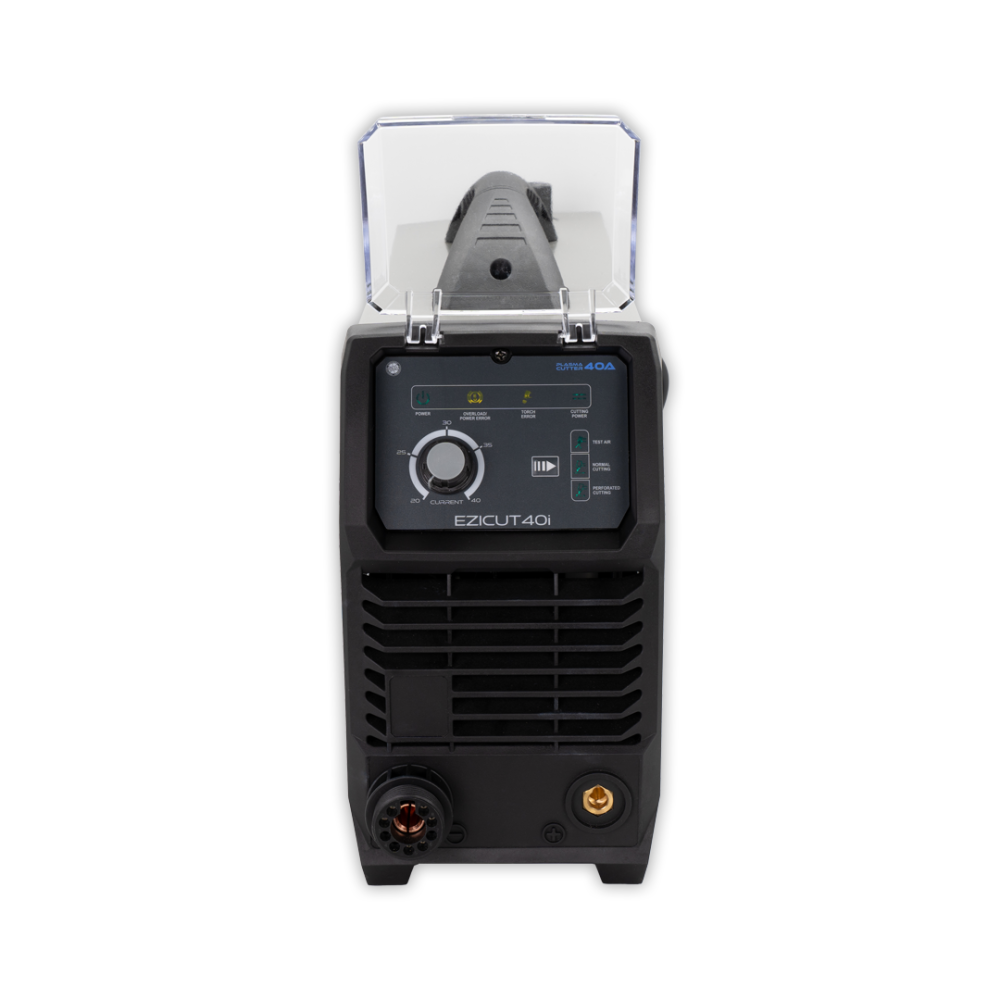

Cut with precision and ease using the EziCut40i. This 40A plasma cutter features a Non-HF Arc Starting System to reduce electromagnetic interference and ensure a clean start every time. Equipped with an Automatic Pilot Arc Control System, it excels in handling discontinuous cuts on materials up to 20mm thick. Its lightweight design makes it perfect for portable operations, while its robust industrial casing ensures durability and protection against harsh environments.
Max Ouput (Plasma) - 40A
Max Cut Capacity - 20mm Carbon Steel
Input Power Supply - 15A 230V

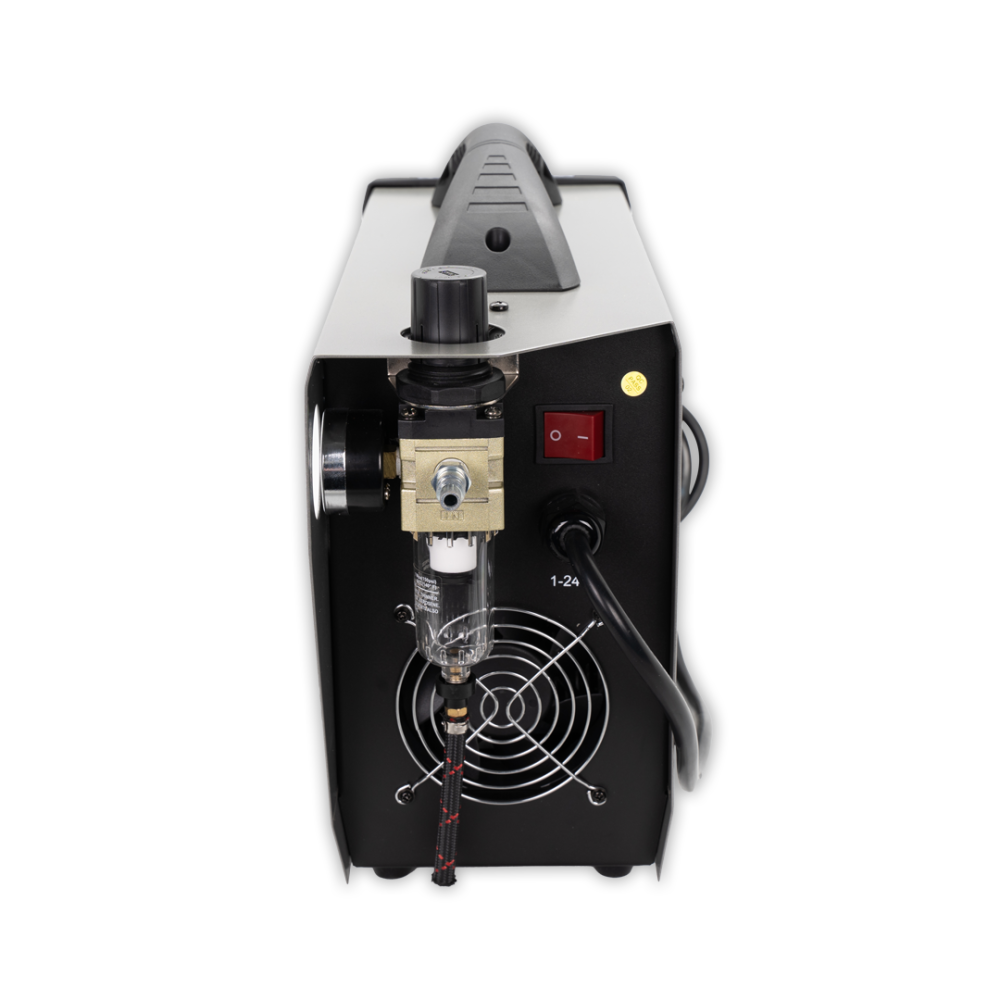

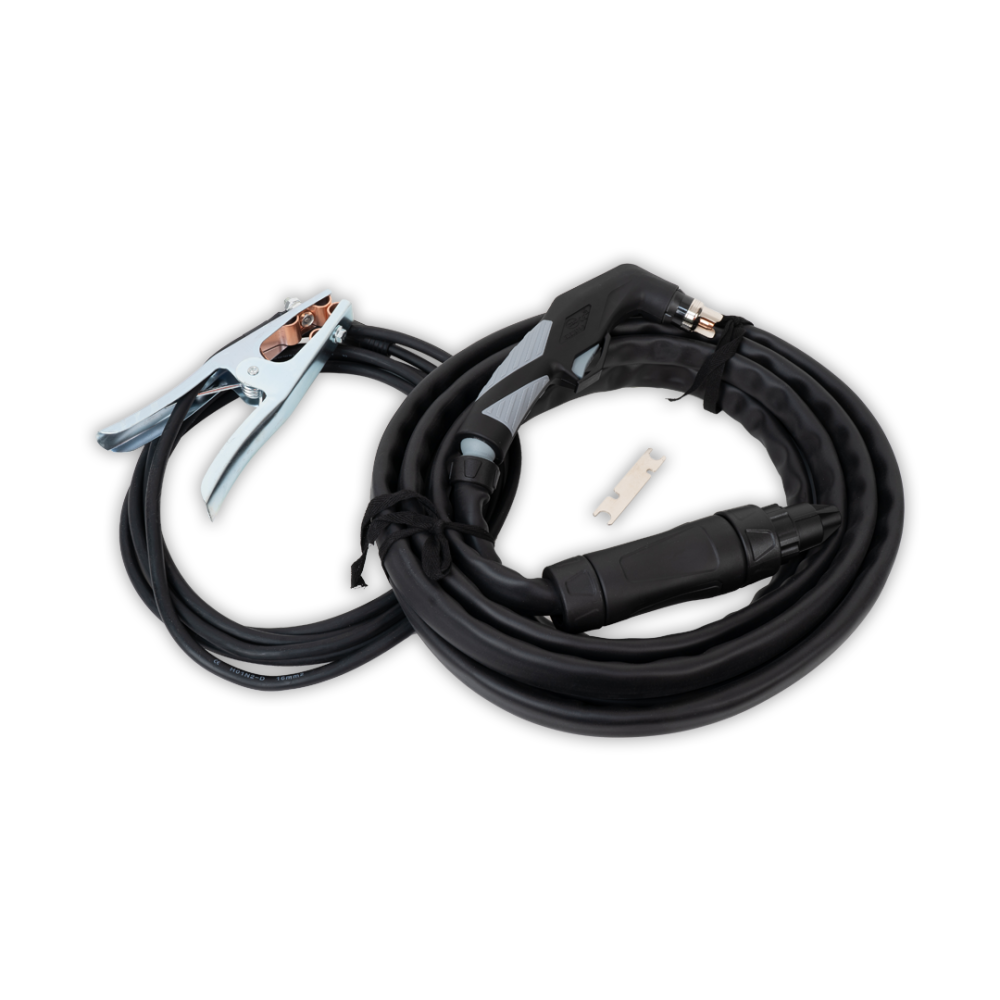

Non-HF Arc Starting System - Increased reliability and low EMF pollutionAutomatic Pilot Arc Control System - Increased cutting capability, especially for discontinuous cuttingIGBT Inverter Technology - Smooth & stable output, increased reliabilityIntelligent Plasma Torch Protection System - Protects plasma torch from damage from incorrect air pressure, consumables not in place, excessive pilot arc use.Integrated external air regulator with water trap/ filter - Easy adjustment & serviceabilityStrata PT-60 Plasma Torch - Superior cutting performance and consumable lifeLightweight & Compact Design - Ideal for portable applications Production tested with 440V - Extreme stress testing in production for rugged reliability.Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosionIntelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safetyIndustrial casing with front panel protection - Resistant to damageAir flow manual activation switch - Set & test air pressure without the need to trigger the torchGenerator Friendly - Designed to work with generator power supply and protect from power surges.
Max Ouput (Plasma) - 40A
Max Cut Capacity - 20mm Carbon Steel
Input Power Supply - 15A 230V
Non-HF Arc Starting System - Increased reliability and low EMF pollutionAutomatic Pilot Arc Control System - Increased cutting capability, especially for discontinuous cuttingIGBT Inverter Technology - Smooth & stable output, increased reliabilityIntelligent Plasma Torch Protection System - Protects plasma torch from damage from incorrect air pressure, consumables not in place, excessive pilot arc use.Integrated external air regulator with water trap/ filter - Easy adjustment & serviceabilityStrata PT-60 Plasma Torch - Superior cutting performance and consumable lifeLightweight & Compact Design - Ideal for portable applications Production tested with 440V - Extreme stress testing in production for rugged reliability.Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosionIntelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safetyIndustrial casing with front panel protection - Resistant to damageAir flow manual activation switch - Set & test air pressure without the need to trigger the torchGenerator Friendly - Designed to work with generator power supply and protect from power surges.
Product Documents
strata_ezicut40i pos.pdf
