Description

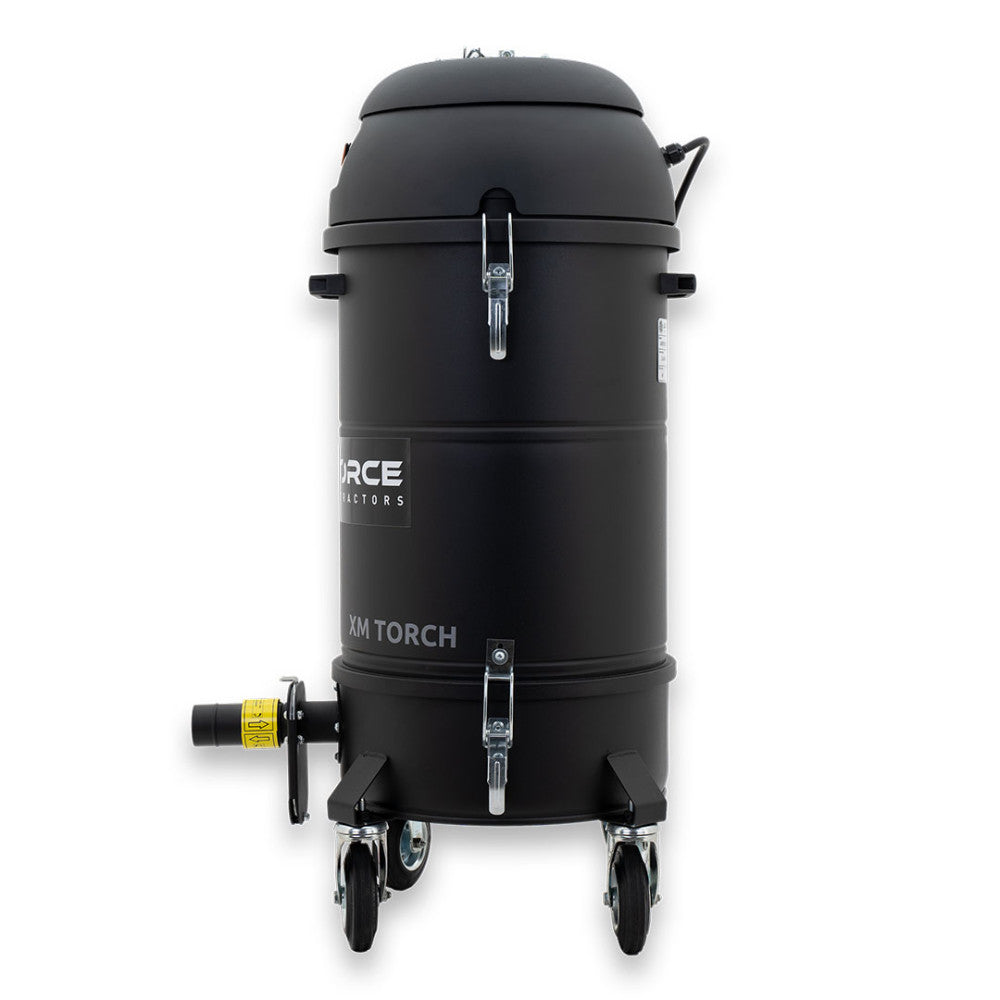

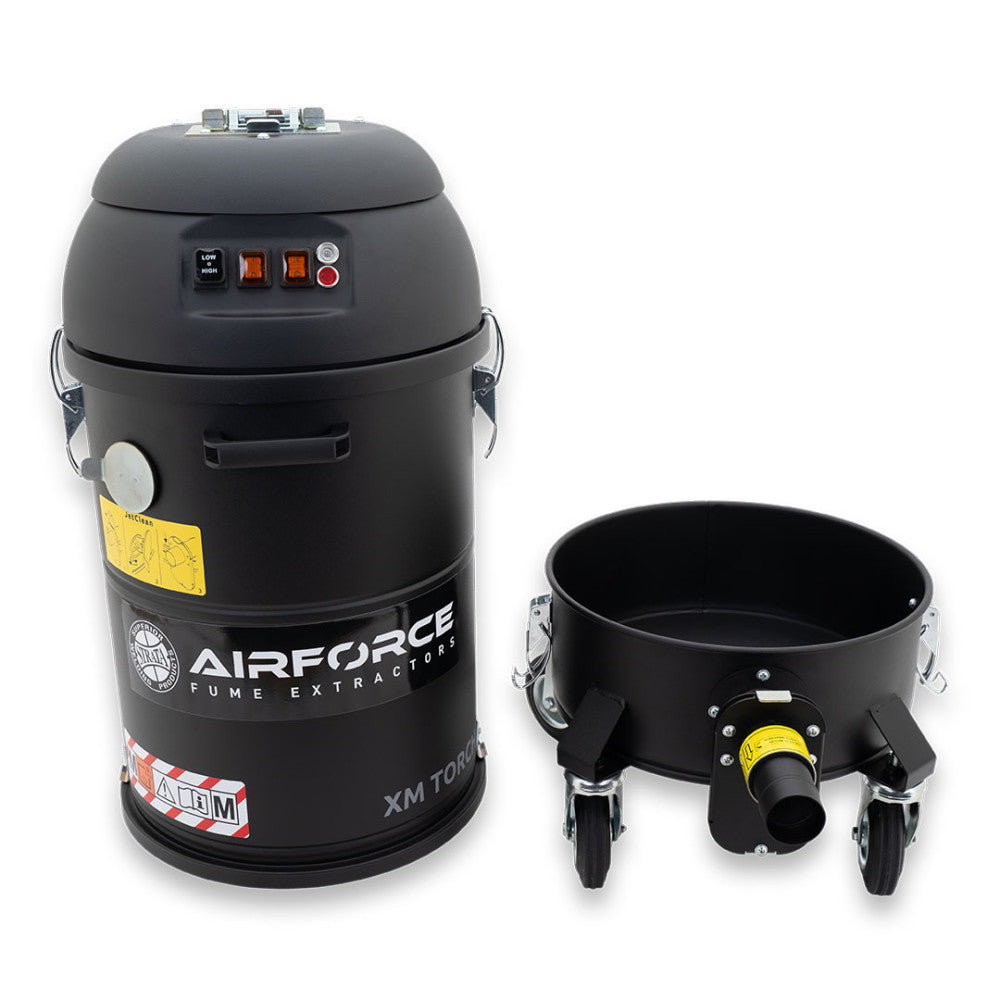

The Strata Airforce 2m industrial welding fume extractor is the ideals solution for extracting fumes directly from the welding torch. Equipped with two powerful by-pass motors that guarantee up to 190m3/h of airflow each. Integrates seamlessly with the welding machine offering direct control. Sophisticated sensor on the vacuum detects current flow in the ground cable through a special clip. Includes a cellulose filter for safe welding fume filtration

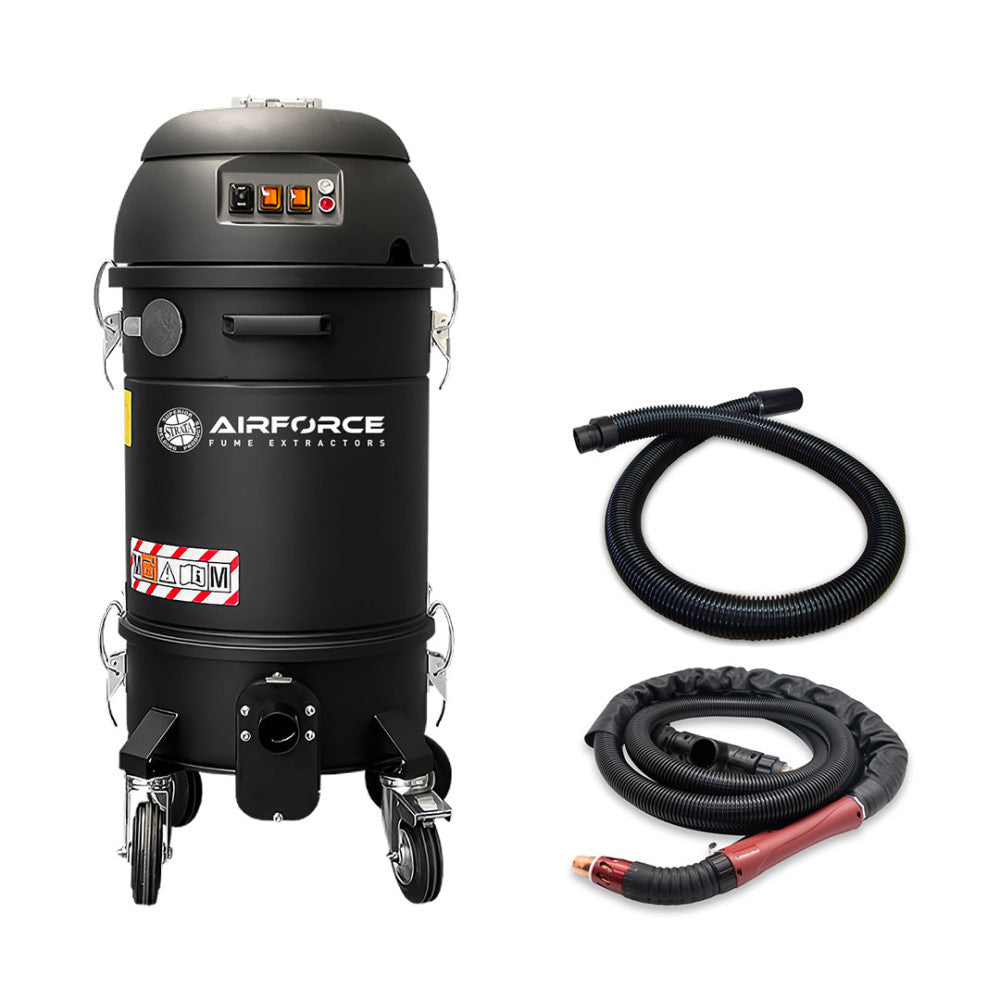

Includes a lightweight 'Ready to Use' 4.5m Strata MIG welding torch with integrated fume extraction at the nozzle, and a 5m fume hose.
Power Output - 2400W
Filtration - M Class
Tank Capacity - 20L
2400W power20L tank capacity3.5m2 surface area coverage
Vacuum is generated by two By-Pass motors, each managed by an independent switch, allowing the operator to control the intake performance
The motors are housed in a robust casing with an insulating sponge to ensure low noise levels

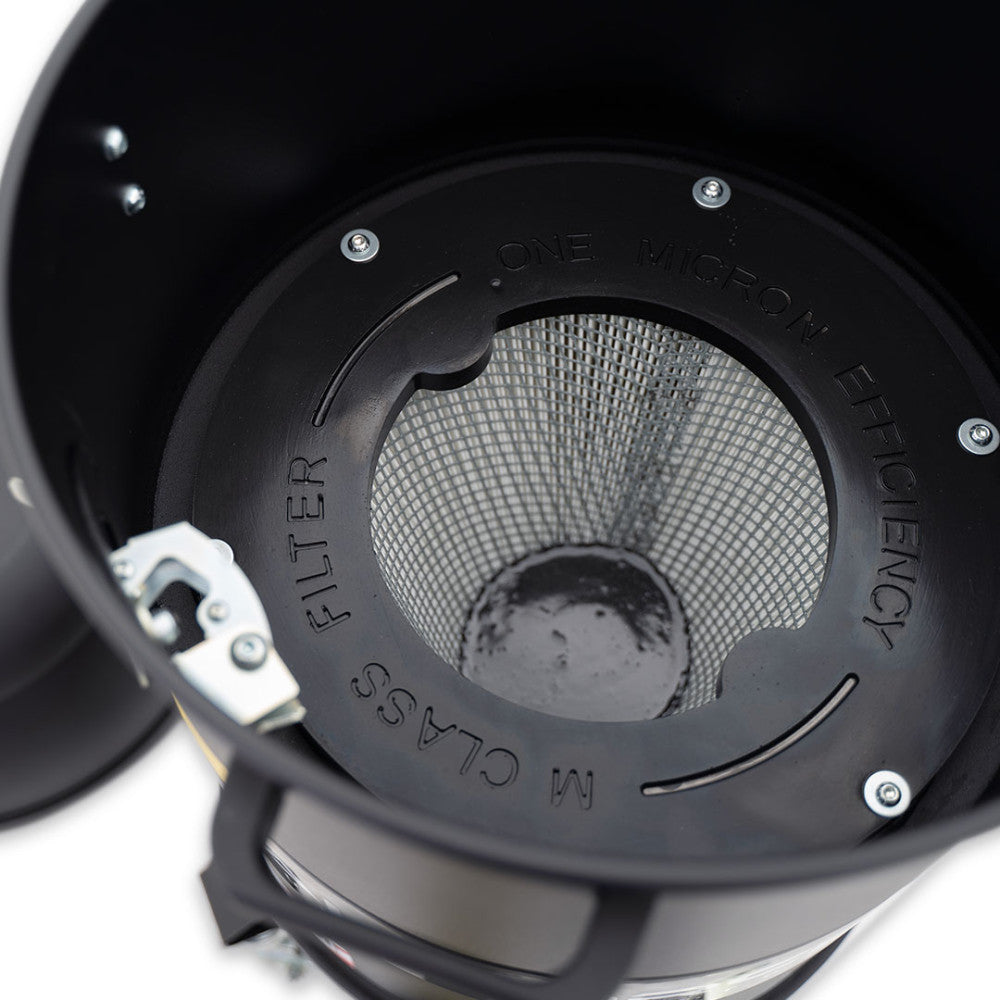

Filtration is ensured by a durable polyester filtering cartridge, designed to provide a large filter surface in a compact space, allowing air to pass through even when the filter is dirty
The M Class (BIA | EN 60335-2-69) certified filter stops particles as small as 1 micron, protecting both the motors and the operator

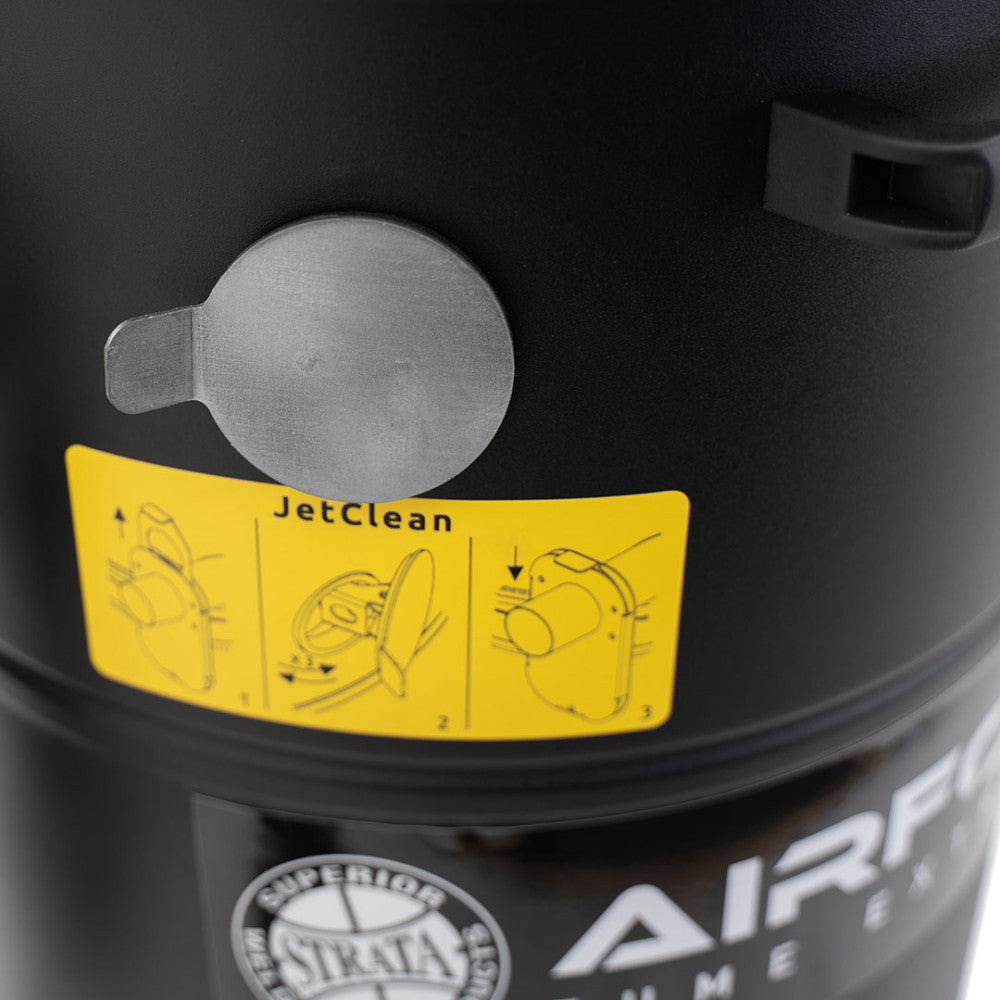

Equipped with the innovative JetClean® filter cleaning system, the vacuum cleaner uses pressure differences inside and outside the unit to generate an air jet that effectively detaches dust from the filter's surface
JetClean® filter cleaning system provides a quick and efficient way to maintain filter cleanliness during operations, allowing continuous vacuuming without interruptions
A sensor on the unit allows the operator to control the machine directly from the welding unit; by passing the cable through the clip, the vacuum cleaner automatically starts when welding begins, ensuring synchronized operation and convenience
Primary filter diameter: 305mmSuction inlet: 40mm diameter
Dimensions (LxWxH): 534 x 471 x 983mmWeight: 38kg
Product Documents
strata_airforce m20_ brochure.pdf
