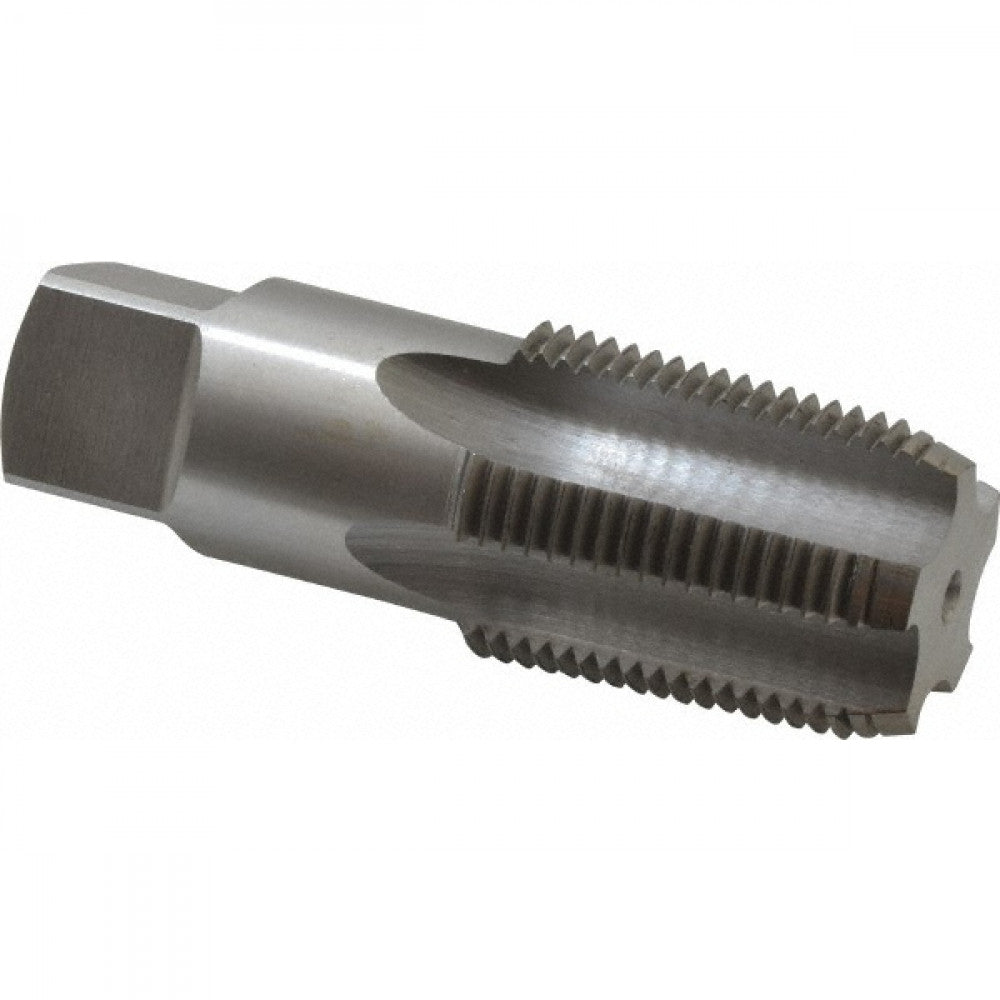

1/4" BSPT High Speed Steel Tap
Move your mouse over image or click to enlarge
1/4" BSPT High Speed Steel Tap 1/4" BSPT High Speed Steel Tap

1/4" BSPT High Speed Steel Tap

$77.43


Taper thread, British Standard Pipe Taper thread (BSPT), whose diameter increases or decreases along the length of the thread.
For producing precision threads by hand tapping, for starting threads - either second or bottoming taps should used after to achieve desire thread depth.
Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Threads per inch 19
Overall length 67mm
Cutting length 19mm
Drill diameter 10.8mm
