Description

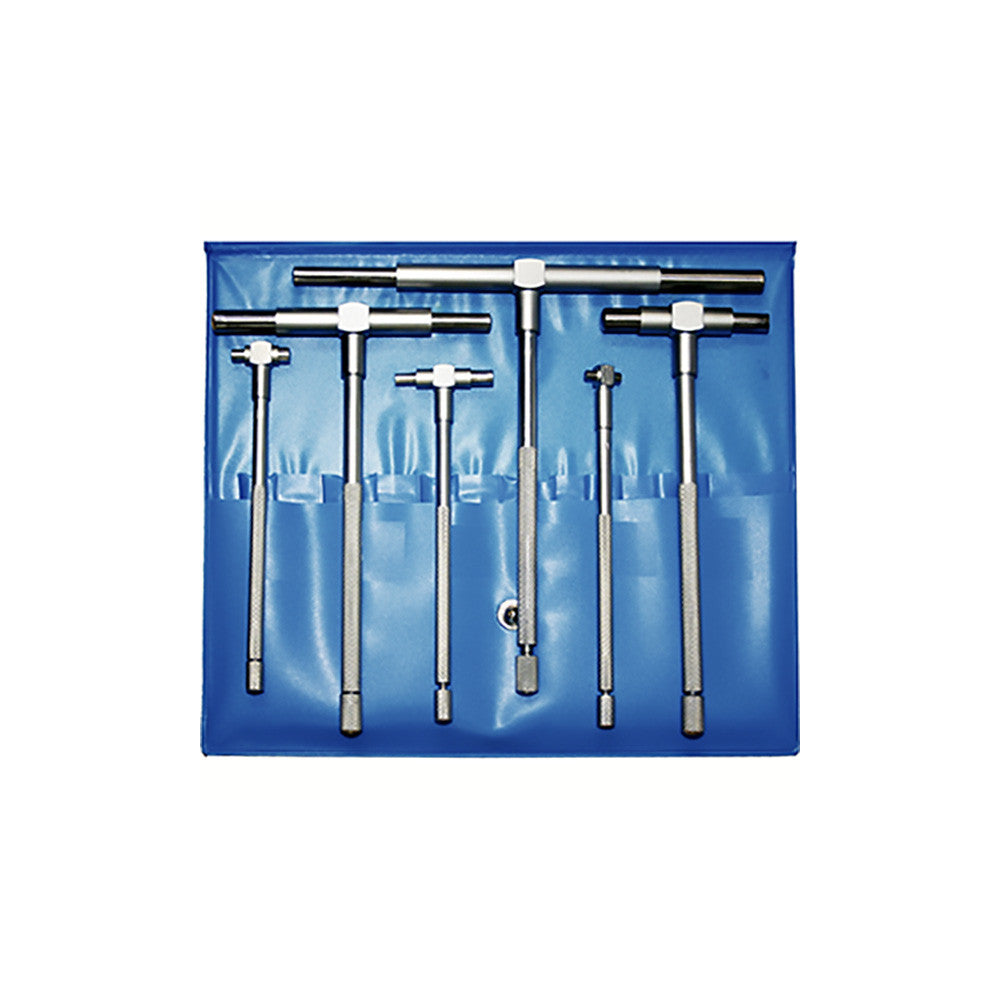

Telescopic Gauge Set 8mm to 150mm - T&E
Measure bore sizes by transferring the internal dimension to a micrometer.
Gauges are locked by twisting the knurled end of the handles.
Insert at an angle to the bore & slowly brought to align themselves radially.
The gauge is then removed and measured with the aid of a micrometer
MT170-A 8mm to 12.7mm telescopic gauge (5/16" to 1/2")
MT170-B 12.7mm to 19mm telescopic gauge (1/2" to 3/4")
MT170-C 19mm to 32mm telescopic gauge (3/4" to 1.1/4")
MT170-D 32mm to 54mm telescopic gauge (1.1/4" to 2.1/8")
MT170-E 54mm to 90mm telescopic gauge (2.1/8" to 3.1/2")
MT170-F 90mm to 150mm telescopic gauge (3.1/2" to 6")
