Description
Code 1010506

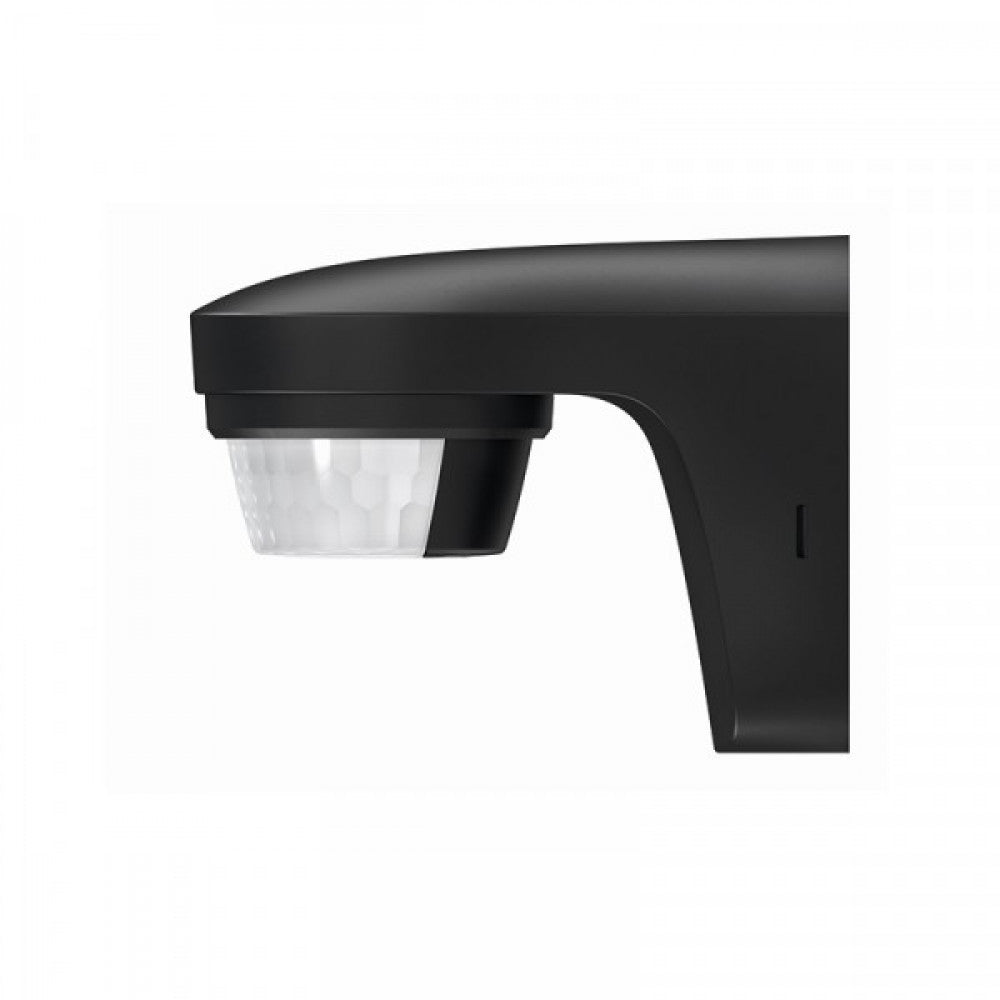

Motion detector (PIR), Black.
Automatic lighting control based on presence and brightness.
180° detection angle, with 6mt wide x 12mt in front semi-circular detection range.
For outdoor use, IP55
Additional creep under protection.
Sensor head can be turned by ± 90° horizontally and by 30° downwards.
Adjustable brightness switching value and switch-off delay.
Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
Zero-cross switching for relay-saving switching and high lamp loads.
Teach-in of current brightness value possible.
Pulse function.
Test function for checking detection area.
Installation on flush-mounted socket possible (60 mm).
Single-handed plug-in installation.
Instant start-up possible via factory preset.
Controls are place protected.
Terminal for protective earth conductor.
Type - Motion Detector (PIR)
Detection Angle - 180°
Colour - Black
Features: - Adj. sensor +/- 90° horizontally, 30° downwards
Outdoor Use - IP55
Installation Height - 2 to 4 mt
Power - 230V AC, 50Hz, 10A
Motion detector (PIR), Black.
Automatic lighting control based on presence and brightness.
180° detection angle, with 6mt wide x 12mt in front semi-circular detection range.
For outdoor use, IP55
Additional creep under protection.
Sensor head can be turned by ± 90° horizontally and by 30° downwards.
Adjustable brightness switching value and switch-off delay.
Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
Zero-cross switching for relay-saving switching and high lamp loads.
Teach-in of current brightness value possible.
Pulse function.
Test function for checking detection area.
Installation on flush-mounted socket possible (60 mm).
Single-handed plug-in installation.
Instant start-up possible via factory preset.
Controls are place protected.
Terminal for protective earth conductor.
Type - Motion Detector (PIR)
Detection Angle - 180°
Colour - Black
Features: - Adj. sensor +/- 90° horizontally, 30° downwards
Outdoor Use - IP55
Installation Height - 2 to 4 mt
Power - 230V AC, 50Hz, 10A
