Description
Code 1010510

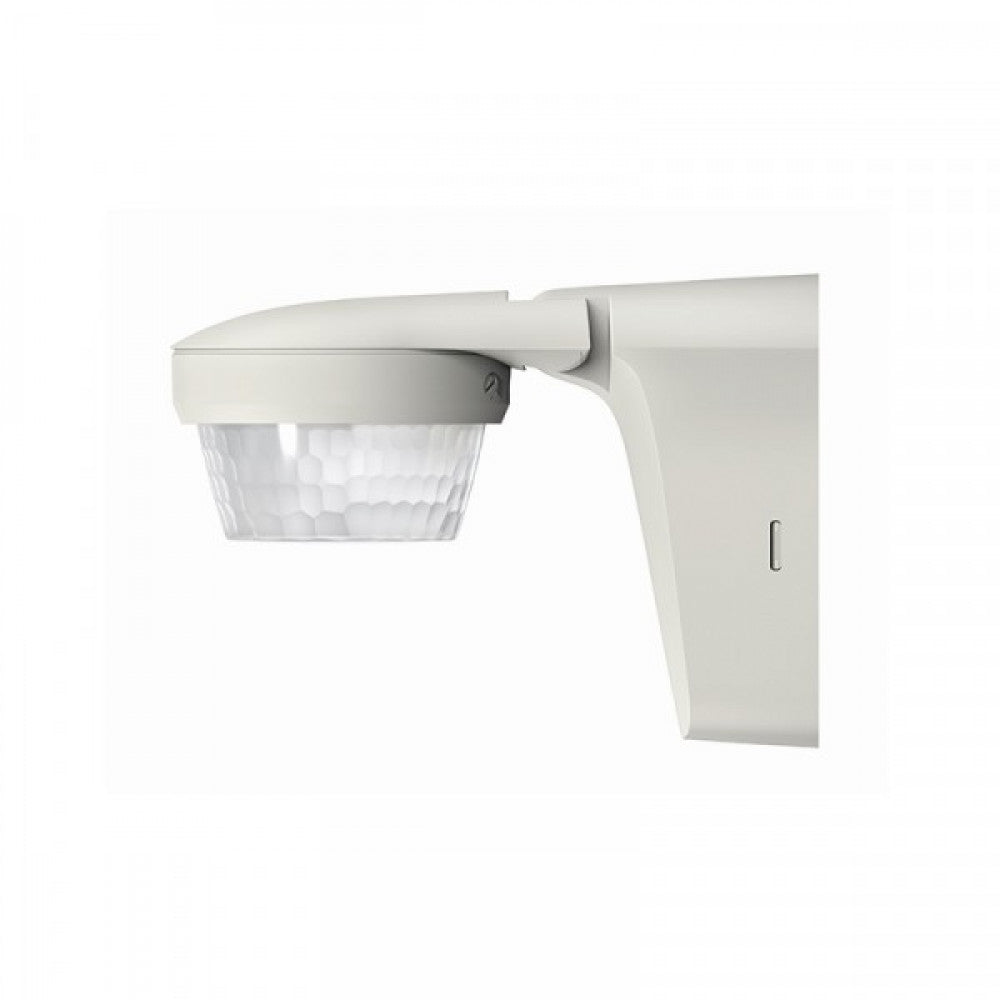

Motion detector (PIR), White.
Automatic lighting control based on presence and brightness.
For outdoor use.
For installation on walls and ceilings.
360° detection angle, with 16mt round detection range.
Sensor head can be turned by ± 90° horizontally, by 45° downwards and by 90° upwards.
Adjustable brightness switching value and switch-off delay.
Sensitivity can be reduced to limit detection area.
Area limit via lens attachment.
Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
Zero-cross switching for relay-saving switching and high lamp loads.
Teach-in of current brightness value possible.
Pulse function.
Test function for checking detection area.
Installation on flush-mounted socket possible (60 mm).
Single-handed plug-in installation.
Instant start-up possible via factory preset.
Controls are place protected.
Terminal for protective earth conductor.
Corner angle included in delivery.
Type - Motion Detector (PIR)
Detection Angle - 360°
Colour - White
Features: - Adj. sensor +/- 90° horizontally, 45° downwards, 90° upwards
Outdoor Use - IP55
Installation Height - 2 to 4 mt
Power - 230V AC, 50Hz, 10A
