Description

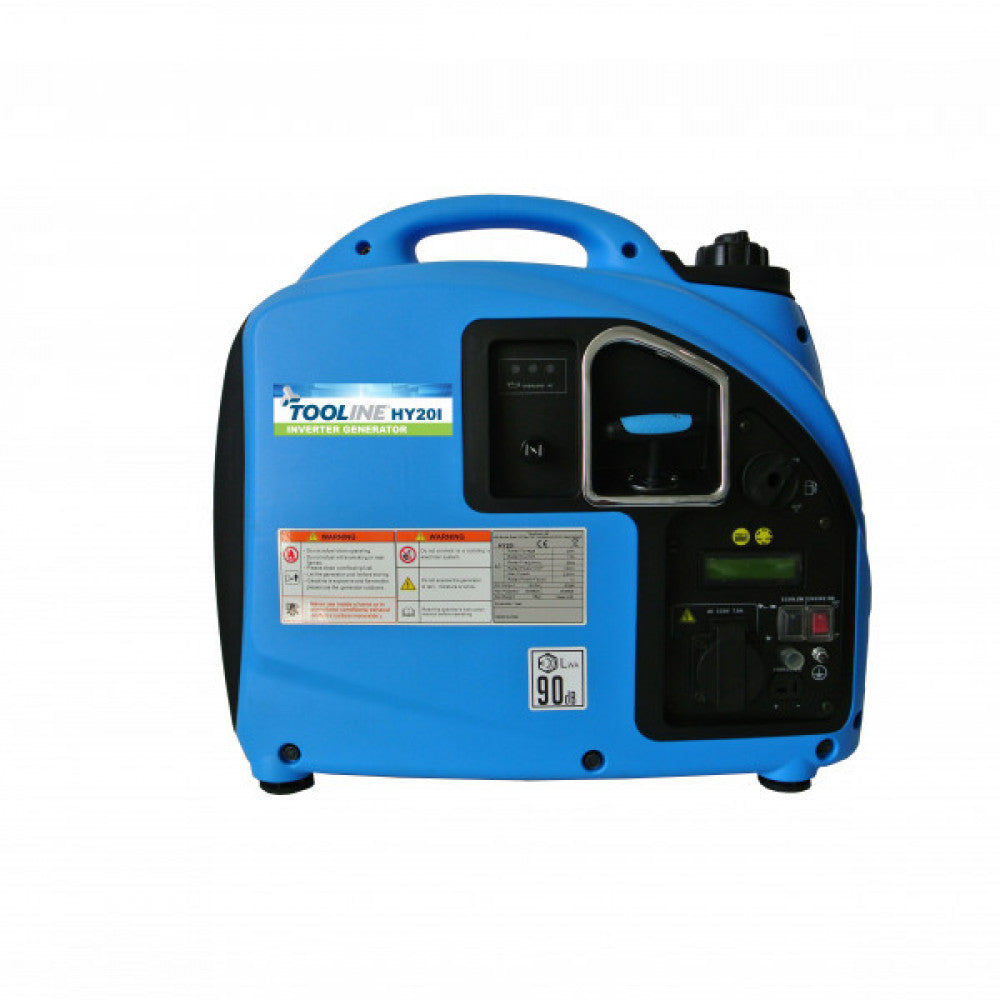

HY20i Petrol Inverter Generator
Rated frequency (Hz) 50
Rated voltage (V) 230
Rated output (kw) 1.6
Max output (kw) 2.0
Rated current (A) 7
Rated rotation speed (r/min) 4500
Generator
Model HY20i
Phase No. Single
DC Output 12V/5A
Power factor (COS) 1.0
Insulation class F
Engine
Engine model 149F
Engine type Single-cylinder, 4-stroke,air-cooled, OHV
Bore x stroke (mm) 48.6 x 43
Displacement (cc) 79
Compression ratio 8.7:1
Rated power (kW/min) 2.35 / 4500
Ignition system TGI
Spark plug UR5BPR6HS (NGK)
Starting system Recoil
Lubricating system Splashed
Lubricating oil SAE 10W-30
Oil capacity (L) 0.41
Fuel type 91 Unleaded gasoline
Fuel consumption (g/(kw.h)) 500
Cooling system Force air cooled
Noise level (dB/7m) 54 – 59
Structure type Total enclosed
Fuel tank capacity (L) 3.6
Continuous running time (‘hr/rated load’） 4.0
Overall dimension (L x W x H) (mm) 510 x 280 x 455
Net weight (kg) 20 2
