Description
Code 6080101

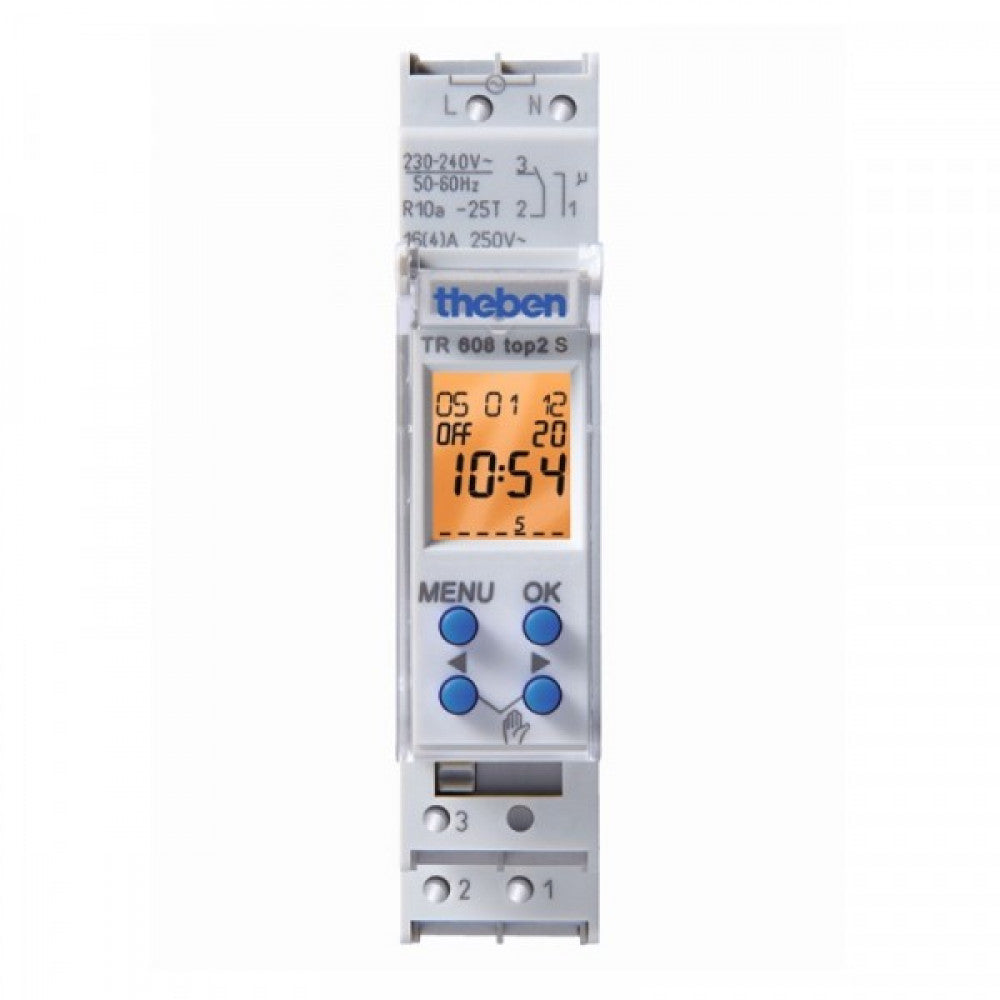

Digital time switch.
1 channel. Weekly time switch. DIN mount, Single module width.
56 memory locations.
DuoFix spring terminals.
For 2 conductors each.
Wire or strand (with or without wire end sleeve).
Wire diameter 0,5 - 2,5 mm².
Button for releasing plug-in connection.
Text-oriented user guidance in display.
Preset date and time.
Fully operable without mains connection.
Interface for optional accessory OBELISK top2 memory card (PC programming).
Two insertable switching program.
Copying & storing programs.
10-year power reserve (lithium battery).
ON-OFF switching times.
Switching preselection.
Permanent switching ON/OFF.
Integrated operating hour counter.
Reset option.
Service function for monitoring maintenance intervals.
Holiday program.
PIN coding security.
Automatic summer/winter time changeover (can be deactivated).
Date rule options are already stored for Europe, the USA and other countries.
Own date rule options or change over around set dates are available.
Supply Voltage - 230-240VAC
Current Resistive - 16A
Current Inductive - 4A
Number of Channels - 1
Battery Reserve - Y
Memory Locations - 56
Shortest Switching Time - 1 min
Features: - Integrated operating hour counter and Holiday Program
