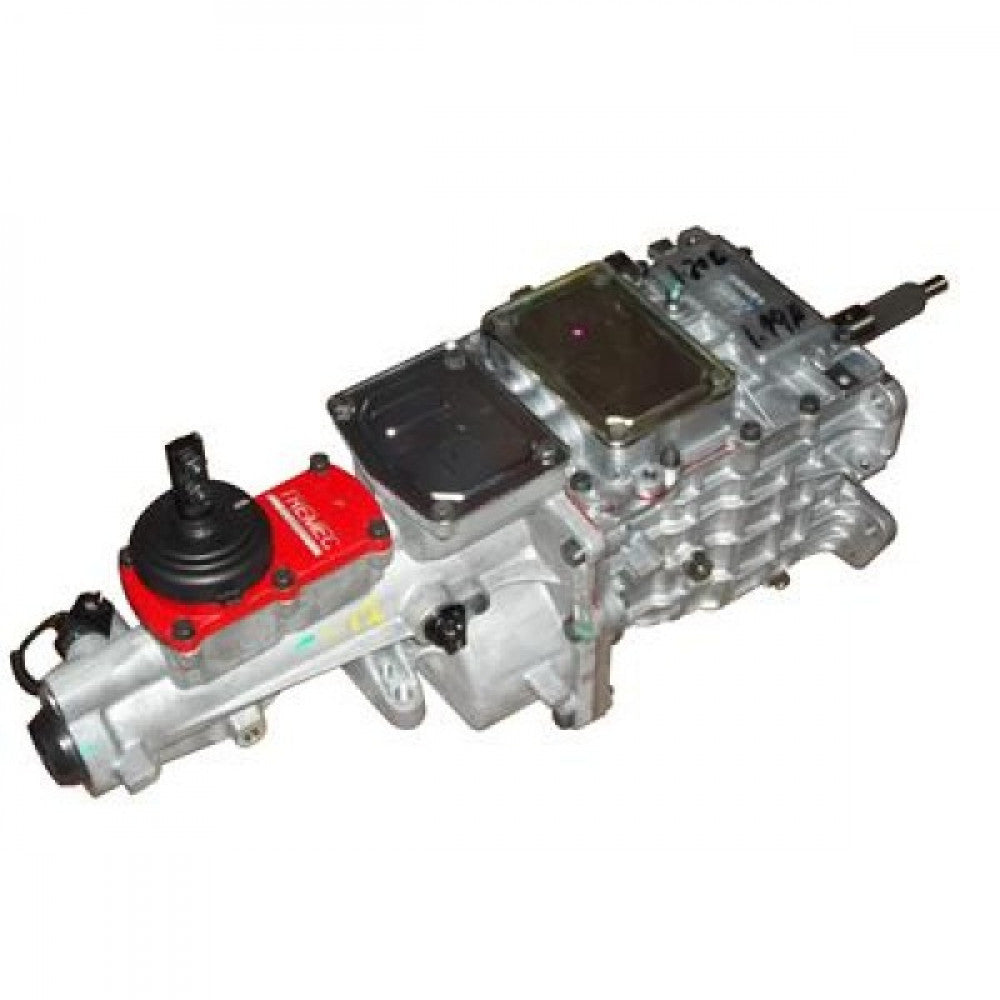

Tremec GM TKO 600 5-Speed Transmission

You can't rely on a factory tranny to hold up in your custom, high-horsepower vehicle--put the power to the pavement with a American Powertrain Tremec TKO 600 transmission for unmatched durability and versatility! The gears and single-piece shafts are made from special ASTM-4615 steel for extra torque-carrying capacity (up to 600 ft.-lbs.!). The 3-rail shift system, cast iron shift forks, and billet aluminum short-throw shifter provide crisp shifting along with reduced road noise. Tremec TKO 600 transmissions are available for street and racing applications. They have eight shifter locations, three crossmember mounting configurations, electronic and mechanical speedometer pickups, and three available input shafts, all to ensure a from-the-factory fit in your GM or Ford. Tremec TKO 600 manual transmissions are shipped dry from the manufacturer.

Transmission, Manual, Tremec TKO 600, 5-Speed, 1 1/8 in. 26-Spline, GM, V8

Number of Gears: Five
Input Shaft Diameter: 1.125 in.
Input Spline Quantity: 26
Output Shaft Spline Quantity: 31
Bellhousing Included: No
Yoke Included: No
Shifter Included: Yes
First Gear Ratio: 2.87:1
Second Gear Ratio: 1.89:1
Third Gear Ratio: 1.28:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.82:1
Case Material: Aluminum
Quantity: Sold individually.
Notes: Designed for electronic or mechanical speedometers (7-tooth). Holds 5.28 pints of fluid. 600 ft.-lbs. torque capacity.
