Description

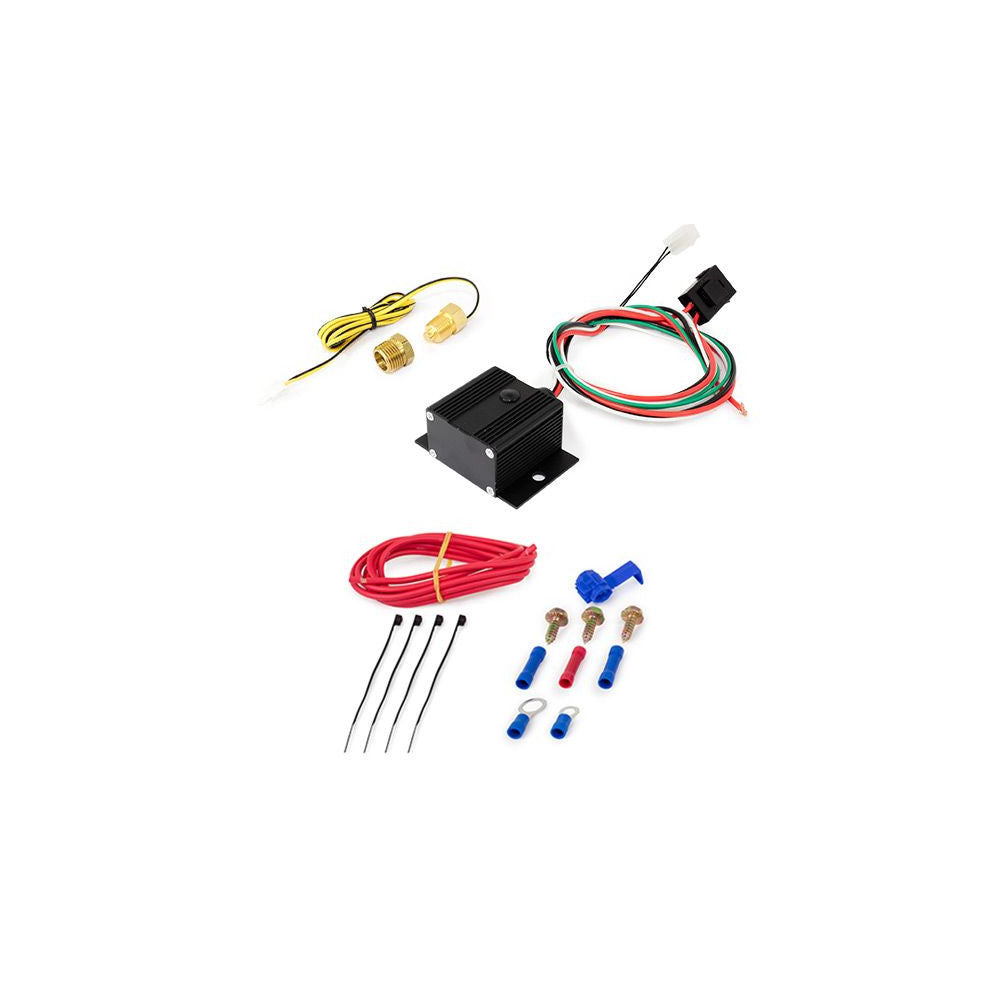

TSP's electric fan controller kit is exactly what you need to configure your cooling fan the way you want. It is adjustable from 140° F to 250°F and features an A/C override circuit. Available with black or red relays, it's easy to match the look of your engine bay.
BRASS PROBE
This fan controller kit comes complete with a 3/8" NPT brass probe. It can be easily installed on a radiator, water neck, intake manifold, or cylinder head to provide an accurate temperature reading for the relay.
SPECIFICATIONS
THERMAL SWITCH STYLE Adjustable Fan Control Kit
SENDING UNIT Brass Thread-in Probe
PROBE SIZE 3/8" NPT
FAN QUANTITY Single
ADJUSTMENT LOW 150° F (65.6° C)
ADJUSTMENT HIGH 240° F (115.6° C)
RELAY Included
WIRING HARNESS Included
MANUAL OVERRIDE SWITCH Not Included
A/C OVERRIDE CIRCUIT Included
INCLUDED Ring Terminals and Connectors,
Mounting Hardware and Wire Ties,
Installation Instructions
FITMENT
THIS PRODUCT IS UNIVERSAL
NOTES
Intended for single fan but with additional wire (not included) can be configured for dual fans
Dual fans will double amperage draw
BRASS PROBE
This fan controller kit comes complete with a 3/8" NPT brass probe. It can be easily installed on a radiator, water neck, intake manifold, or cylinder head to provide an accurate temperature reading for the relay.
SPECIFICATIONS
THERMAL SWITCH STYLE Adjustable Fan Control Kit
SENDING UNIT Brass Thread-in Probe
PROBE SIZE 3/8" NPT
FAN QUANTITY Single
ADJUSTMENT LOW 150° F (65.6° C)
ADJUSTMENT HIGH 240° F (115.6° C)
RELAY Included
WIRING HARNESS Included
MANUAL OVERRIDE SWITCH Not Included
A/C OVERRIDE CIRCUIT Included
INCLUDED Ring Terminals and Connectors,
Mounting Hardware and Wire Ties,
Installation Instructions
FITMENT
THIS PRODUCT IS UNIVERSAL
NOTES
Intended for single fan but with additional wire (not included) can be configured for dual fans
Dual fans will double amperage draw
