Description

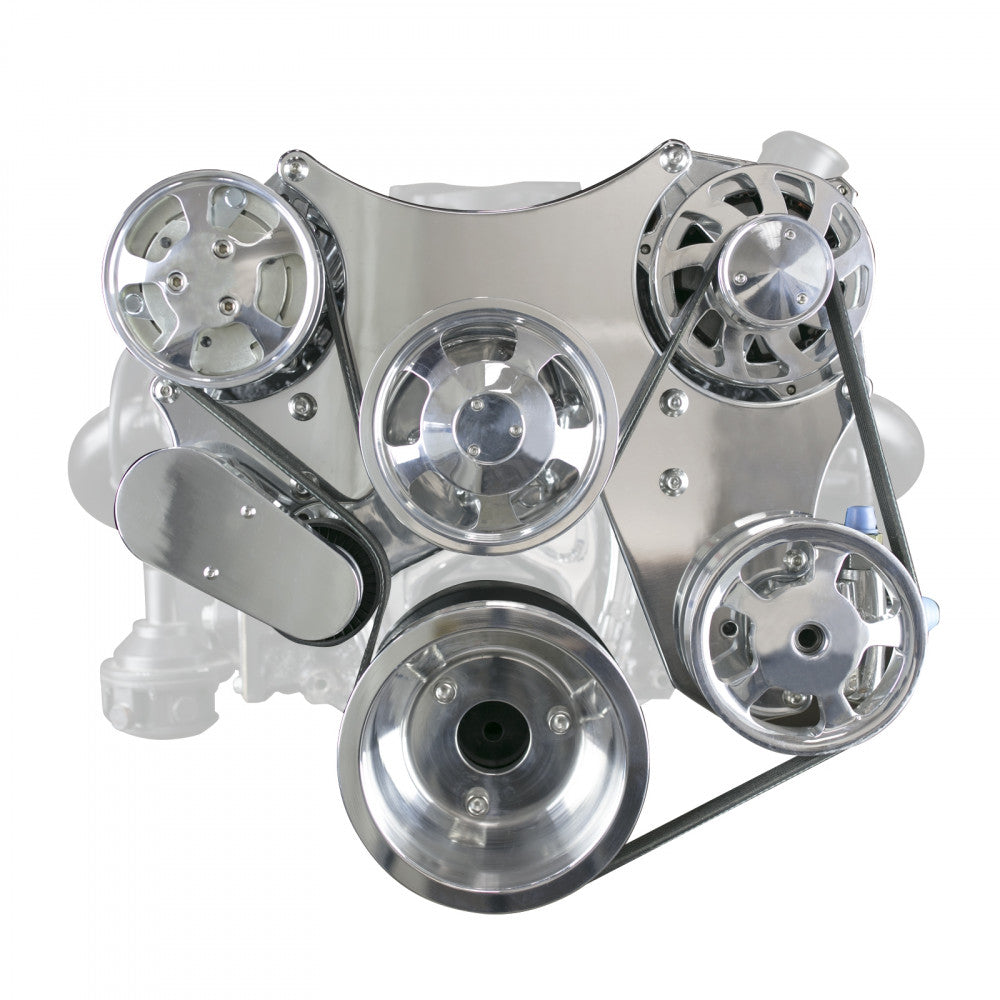

TSP's Chevy small block serpentine front drive system is sure to turn heads. If you're looking for a way to dress up engine swap, look no further. And the best part: this kit comes with everything you need, from brackets and pulleys to the belt and accessories.
BRACKETS AND PULLEYS
Easily the biggest draws to this kit are the brackets and pulleys. CNC-machined from 6061-T6 aluminum. They compliment the accessories perfectly, and will fit your small block perfectly.
WATER PUMP
TSP's high-flow mechanical water pump provides that extra cooling power your high-performance engine demands. Composed of lightweight A356 aluminum, the casting manages heat better than cast iron, and with an improved internal construction, it flows up to 40% above stock.
ALTERNATOR
Providing the electrical power in this kit is our 160-amp GM CS130 style alternator. It features an internal regulator, one-wire capability, and a convenient battery side post.
A/C COMPRESSOR
TSP's Sanden SD7 style A/C compressor provides high-performance cooling in a compact package. It pumps 6.1 cubic inches per revolution with a maximum 9,000 sustained RPM range.
POWER STEERING PUMP
When it came time to address power steering with this kit, we looked to the immensely popular GM Type II. It's been designed for performance and reliability, meeting or exceeding OEM specifications.
BRACKET & PULLEY MATERIAL Billet Aluminum
ALTERNATOR TYPE CS130 Style
ALTERNATOR OUTPUT 160 Amps
A/C COMPRESSOR TYPE Sanden SD7 Style
WATER PUMP TYPE Reverse-rotation long neck style
WATER PUMP OUTPUT High-flow
POWER STEERING PUMP TYPE GM Type 2 (Saginaw TC Series)
BELT TENSIONER Included
BELT TENSIONER STYLE Custom Design
SPACERS & HARDWARE Included
SERPENTINE BELT 6-Rib, 65 1/2" Length
GATES PART # K060650
BELT INCLUDED Yes
INCLUDED Brackets & Pulleys
Water Pump
A/C Compressor
Alternator
Power Steering Pump
Belt & Tensioner
Installation Hardware
Due to the relocation of certain accessories, may not fit in stock applications (See dimensions)
SPECIAL ORDERS ONLY
