Description

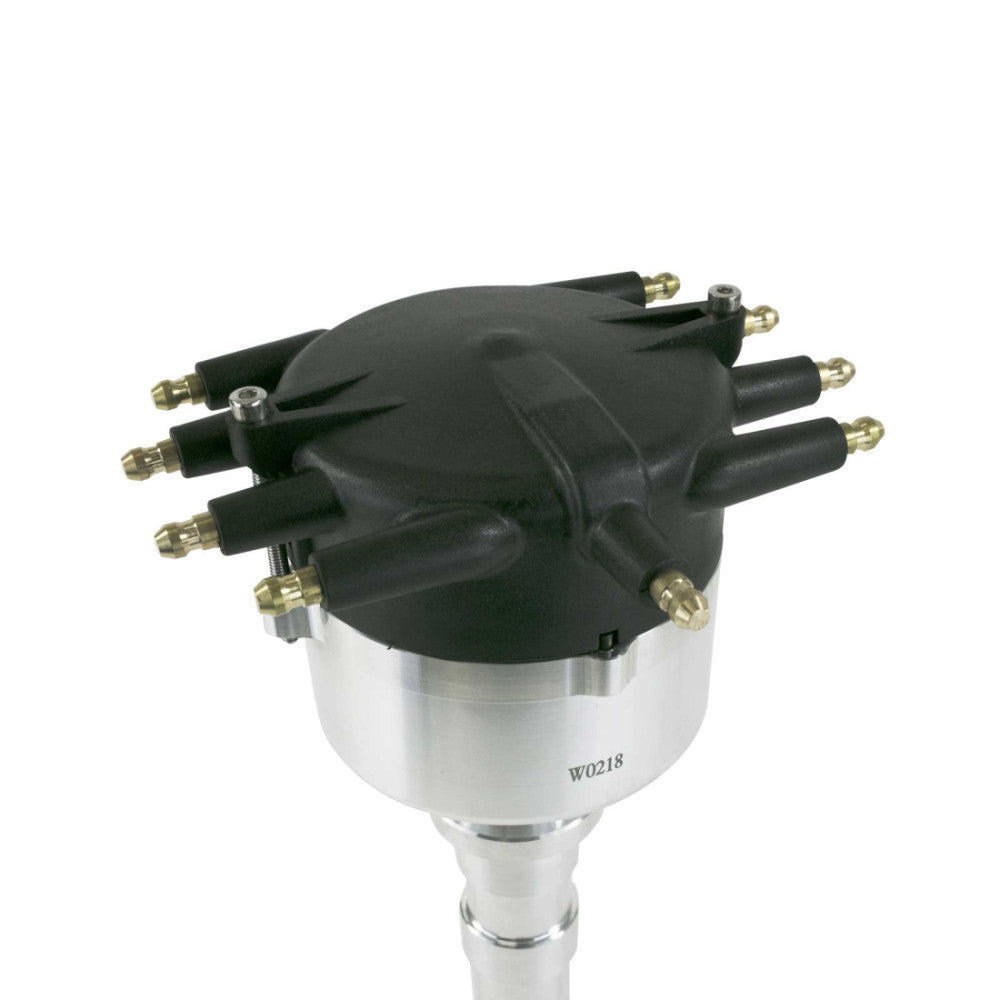

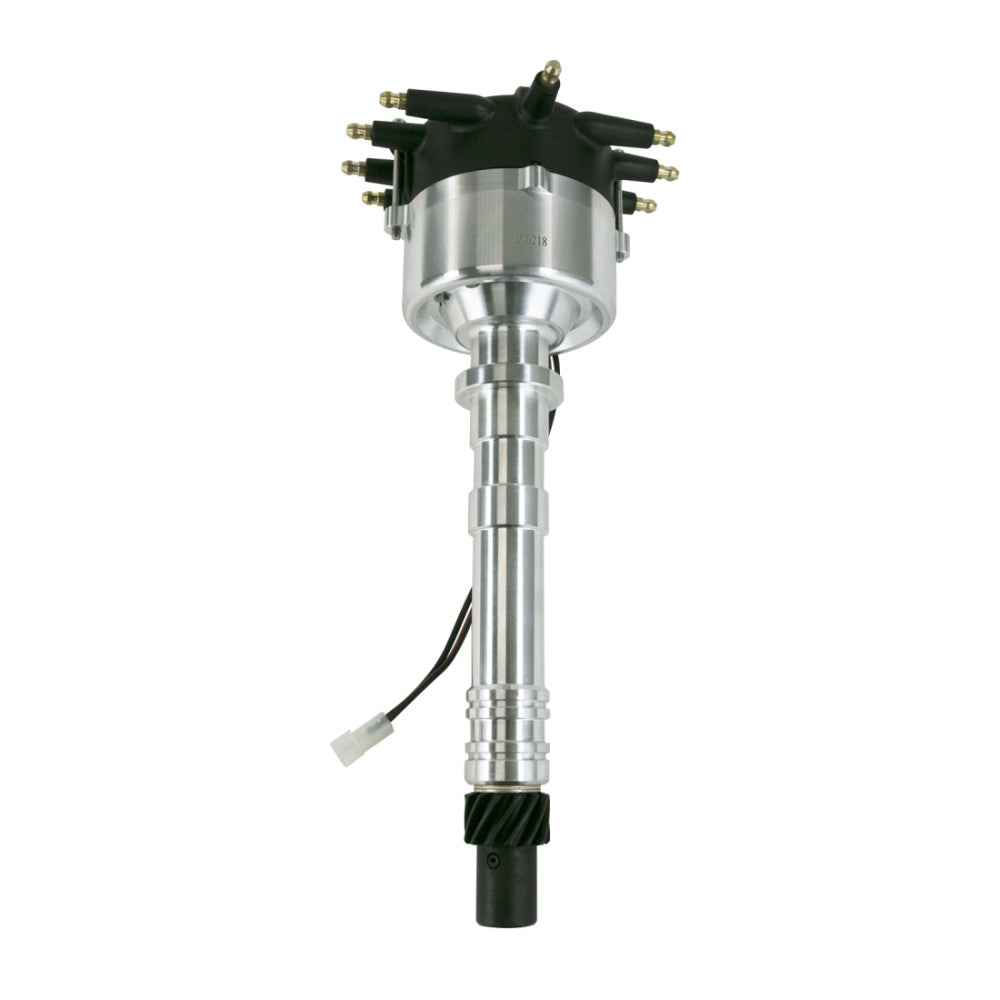

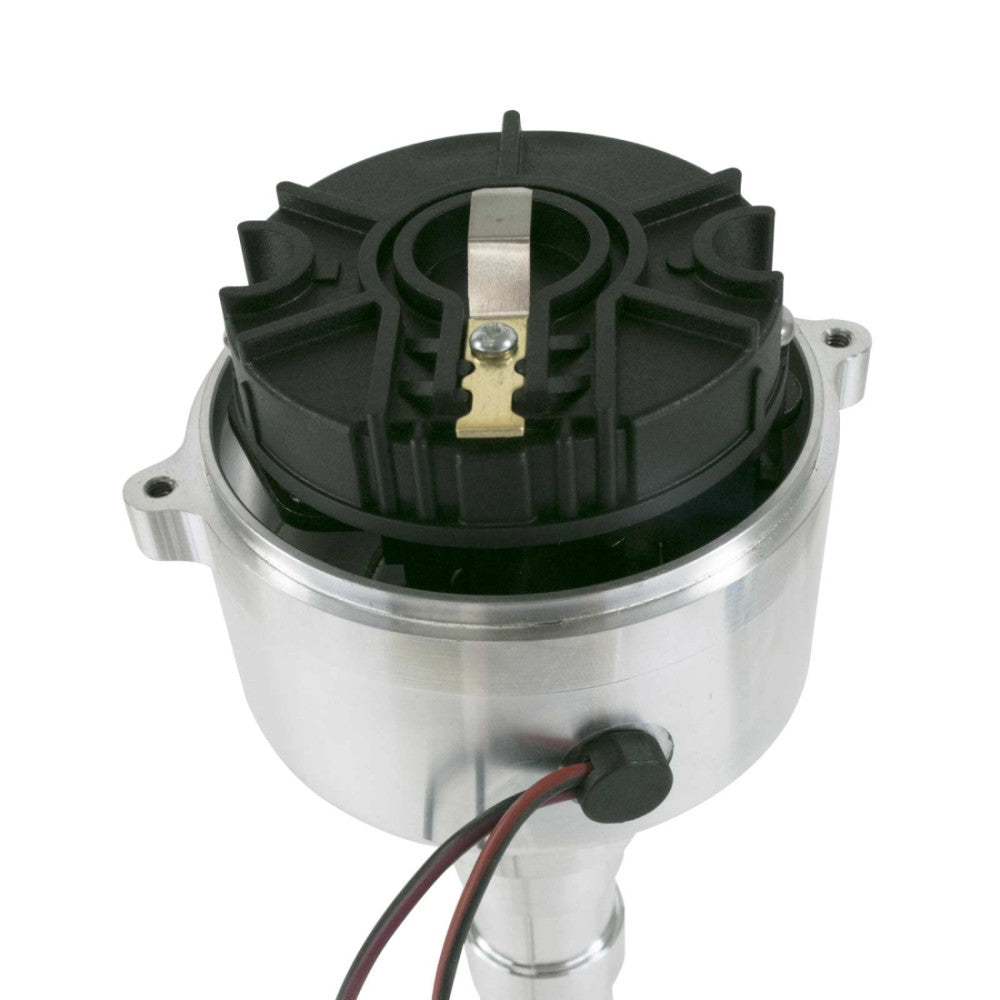

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. This new low-profile distributor features a re-designed housing and crab-style cap. Measuring less than 5" from the mounting surface to the top, installing a blower will be a breeze.
Requires the use of an ignition control system and external ignition coil.
Specifications:
TRIGGER STYLE: Magnetic
ADVANCE TYPE: Mechanical
CAP STYLE: Crab with Male Terminals
MECHANICAL TACH DRIVE: No
SLIP COLLAR: No
COIL INCLUDED: No
COIL TYPE: External
COIL OUTPUT: 35,000+ Volt Recommended
GEAR MATERIAL: Steel
HOUSING MATERIAL: Machined Aluminum
IGNITION BOX REQUIRED: Yes
MARINE USE: No
CYLINDERS: 8
INCLUDED: 3 Bushings and 4 Springs for Mechanical Advance
Fitment:
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
6.5 L / 396 in3
6.6 L / 402 in3
7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
4.3 L / 262 in3
4.3 L / 265 in3
4.4 L / 267 in3
4.6 L / 283 in3
4.9 L / 302 in3
5.0 L / 305 in3
5.0 L / 307 in3
5.4 L / 327 in3
5.7 L / 350 in3
6.6 L / 400 in3
NOTES:
Will not fit tall deck blocks
Will not fit if using a governor
