Description
TSP's steel harmonic balancers are extremely durable and efficient. The elastomer is bonded to the inside of the inertia ring and outside of the hub thanks to an improved design and premium adhesive. They feature a black finish and white timing marks for easy reading and installation. They are precisely designed and balanced for perfect fit and performance. This balancer has a removable external weight, which means it can be converted to internal balance.
Specifications:
ENGINE BALANCE: Internal / External 28 oz Imbalance

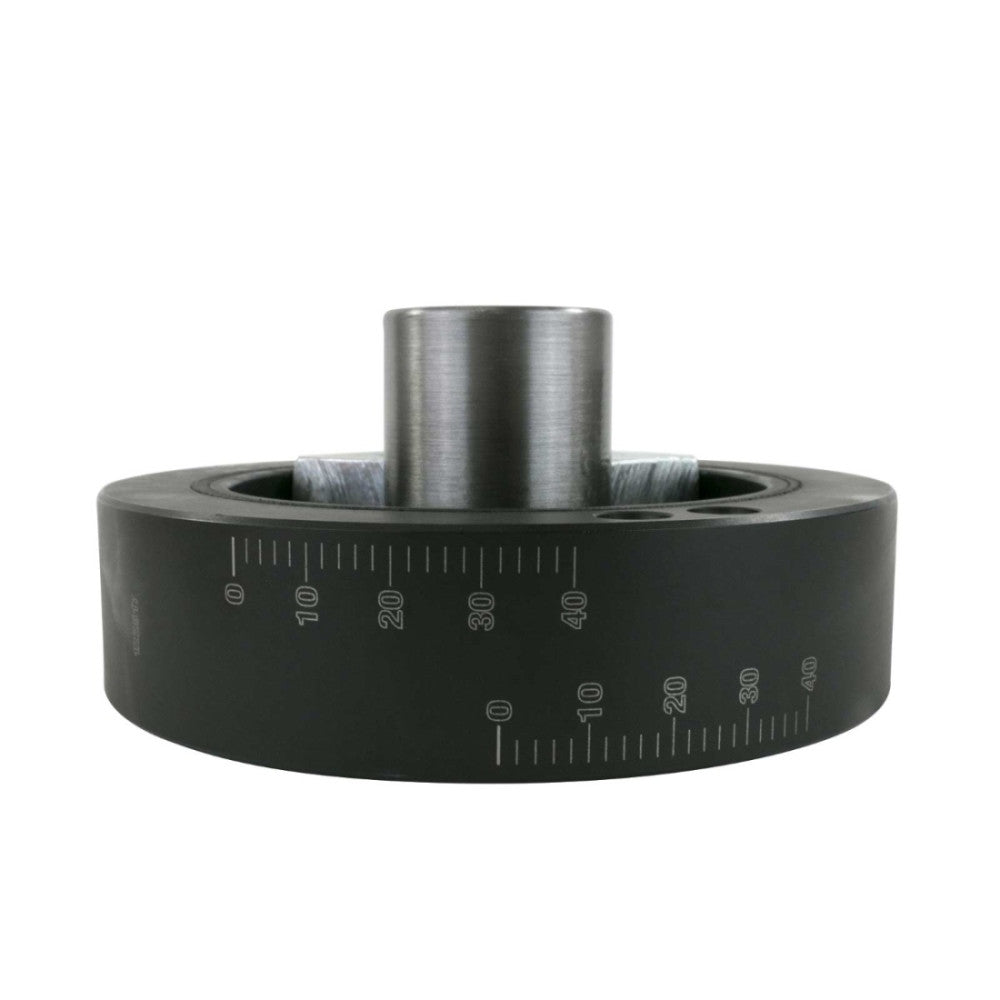

TIMING MARKS: 40°Before Top Dead Center to 0° Top Dead Center
OUTSIDE DIAMETER: 6.400"
DAMPER MATERIAL: Steel
DAMPER FINISH: Satin Black
CONSTRUCTION: Elastomer
SFI APPROVED: No
Fitment:
FORD SMALL BLOCK WINDSOR V8
3.6 L / 221 in3
4.3 L / 260 in3
4.7 L / 289 in3
5.0 L / 302 in3
5.8 L / 351 in3
FORD BOSS V8
5.0 L / 302 in3
NOTES: Fits early small block applications with three or four crankshaft pulley bolt holes
