Description

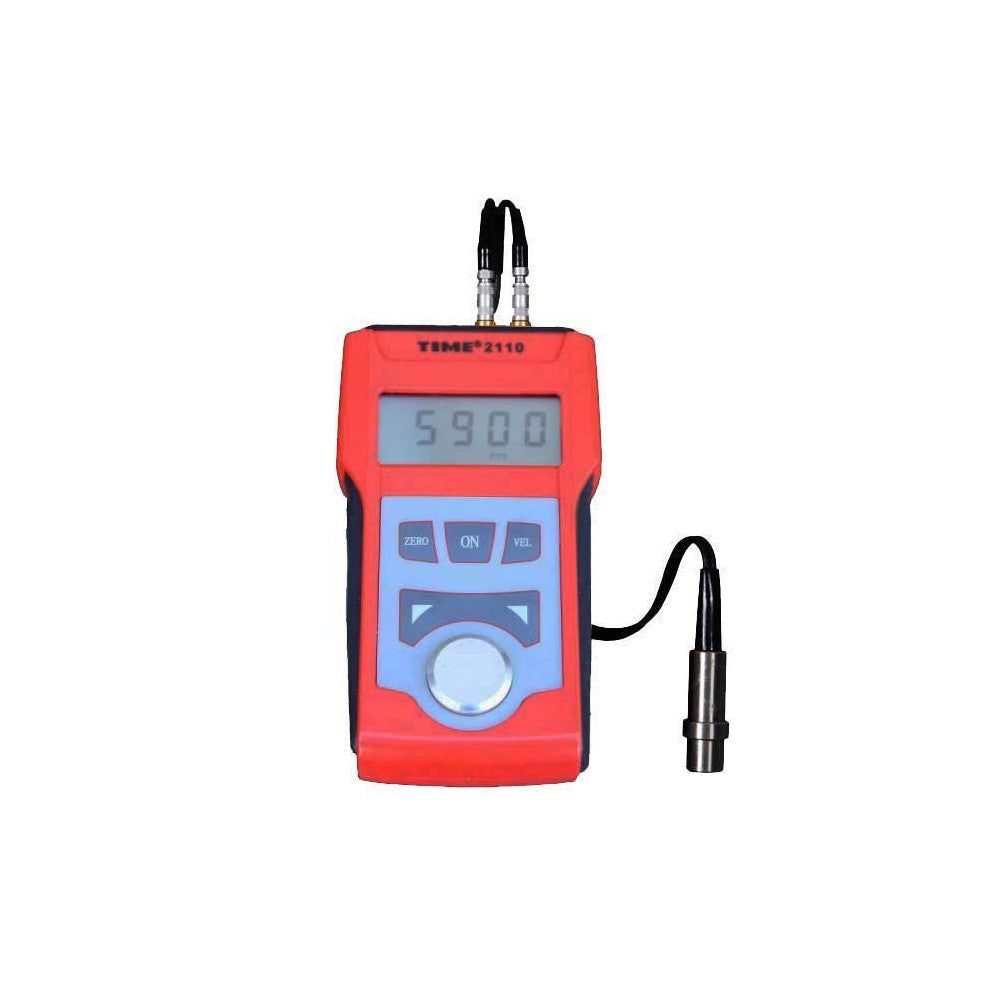

A hand held gauge with separate transducer that displays in metric & english units, suitable for metal, glass and homogenous plastics, supplied complete in case with 5MHz 10mm diameter straight transducer, ultrasonic couplant, batteries (2 x AAA), and integrated 4mm test piece.
Measuring Range : 1.2mm to 225mm (with 5MHZ probe*), minimum 3mm thickness x 20mm diameter (Steel Pipes)
Display : 999.9
Accuracy : ±(1%H + 0.1)mm, where H is thickness being measured
Memory : 10 readings
Sound Velocity Range : 1000 - 9999 m/s. Sound velocity of 5 different materials can be stored.
Measuring Range : 1.2mm to 225mm (with 5MHZ probe*), minimum 3mm thickness x 20mm diameter (Steel Pipes)
Display : 999.9
Accuracy : ±(1%H + 0.1)mm, where H is thickness being measured
Memory : 10 readings
Sound Velocity Range : 1000 - 9999 m/s. Sound velocity of 5 different materials can be stored.
