Description
Uni-T is one of the leading Test & Measurement solutions provider in the world & a prestige test meter br& throughout Asia. They are well known for high quality & affordable test & measurement products.

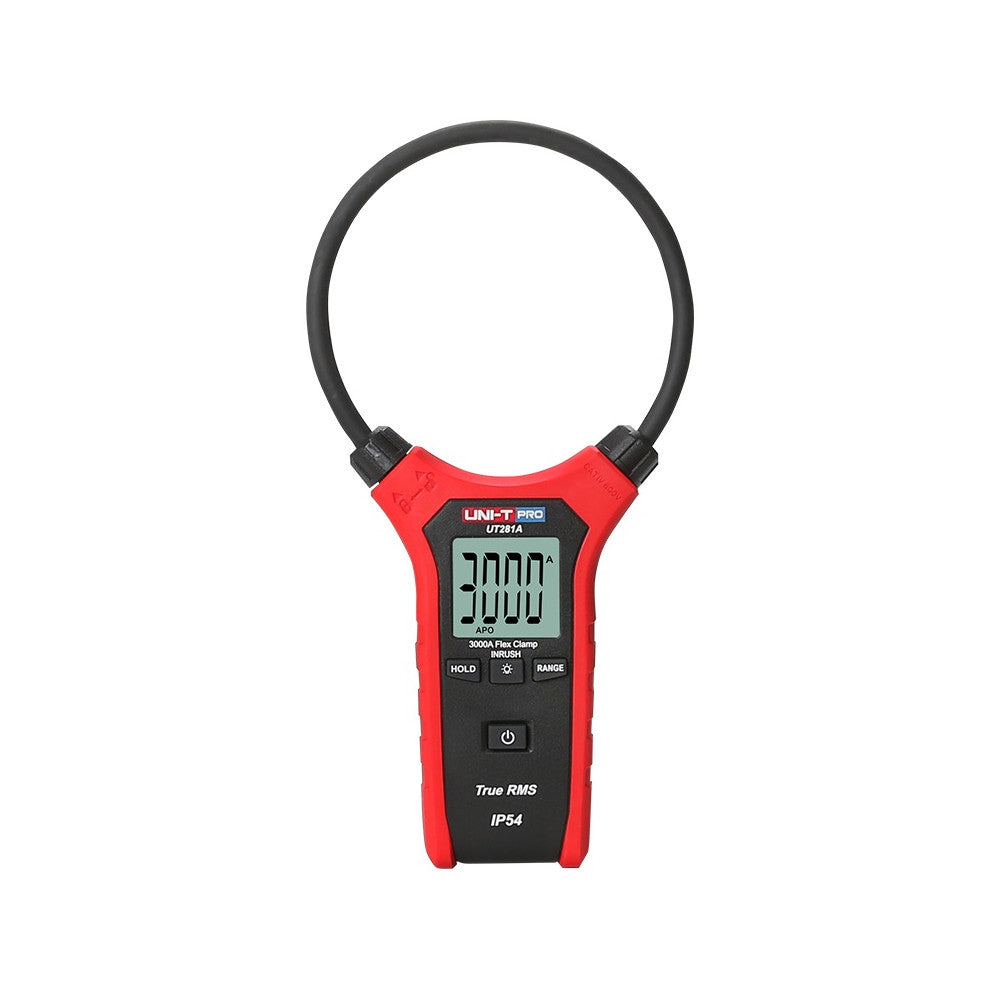

UT281 series can measure large currents in various harsh & hard to reach environments. Designed with Rogowski flex coil it can test up to 3000A AC current.
The UT281A/C are from UNI-T's Pro Line series, which meet IP54 & 2m drop proof requirements. Due to the ease in operation, accurate readings, stable performance & reliable quality, these flex clamps are ideal tools for electricians.
FEATURES:
2m drop proof
ETL/Intertek certified 3rd edition CE
IP rating ? IP54
Flex coil diameter: 0.75cm, bending length: 45.7cm
Large LCD display
Display count ? 3000
Refresh rate ? 3 times/s
Manual Range selection ?
True RMS
Long press INRUSH key for 2s to measure inrush current
Data hold
Backlight
Auto power off
SPECIFICATIONS
Specifications Range UT281A
AC current (A) 30A/300A/3000A ±(3%+5)
Frequency response 45Hz~500Hz (sine wave)
Inrush current 0.5A~3000A (for reference)
12 month warranty
General Characteristics
Power 1.5V battery (AAA) x 3
Product net weight 220g
Product size 300 x 150 x 55mm
UT281 series can measure large currents in various harsh & hard to reach environments. Designed with Rogowski flex coil it can test up to 3000A AC current.
The UT281A/C are from UNI-T's Pro Line series, which meet IP54 & 2m drop proof requirements. Due to the ease in operation, accurate readings, stable performance & reliable quality, these flex clamps are ideal tools for electricians.
FEATURES:
2m drop proof
ETL/Intertek certified 3rd edition CE
IP rating ? IP54
Flex coil diameter: 0.75cm, bending length: 45.7cm
Large LCD display
Display count ? 3000
Refresh rate ? 3 times/s
Manual Range selection ?
True RMS
Long press INRUSH key for 2s to measure inrush current
Data hold
Backlight
Auto power off
SPECIFICATIONS
Specifications Range UT281A
AC current (A) 30A/300A/3000A ±(3%+5)
Frequency response 45Hz~500Hz (sine wave)
Inrush current 0.5A~3000A (for reference)
12 month warranty
General Characteristics
Power 1.5V battery (AAA) x 3
Product net weight 220g
Product size 300 x 150 x 55mm
