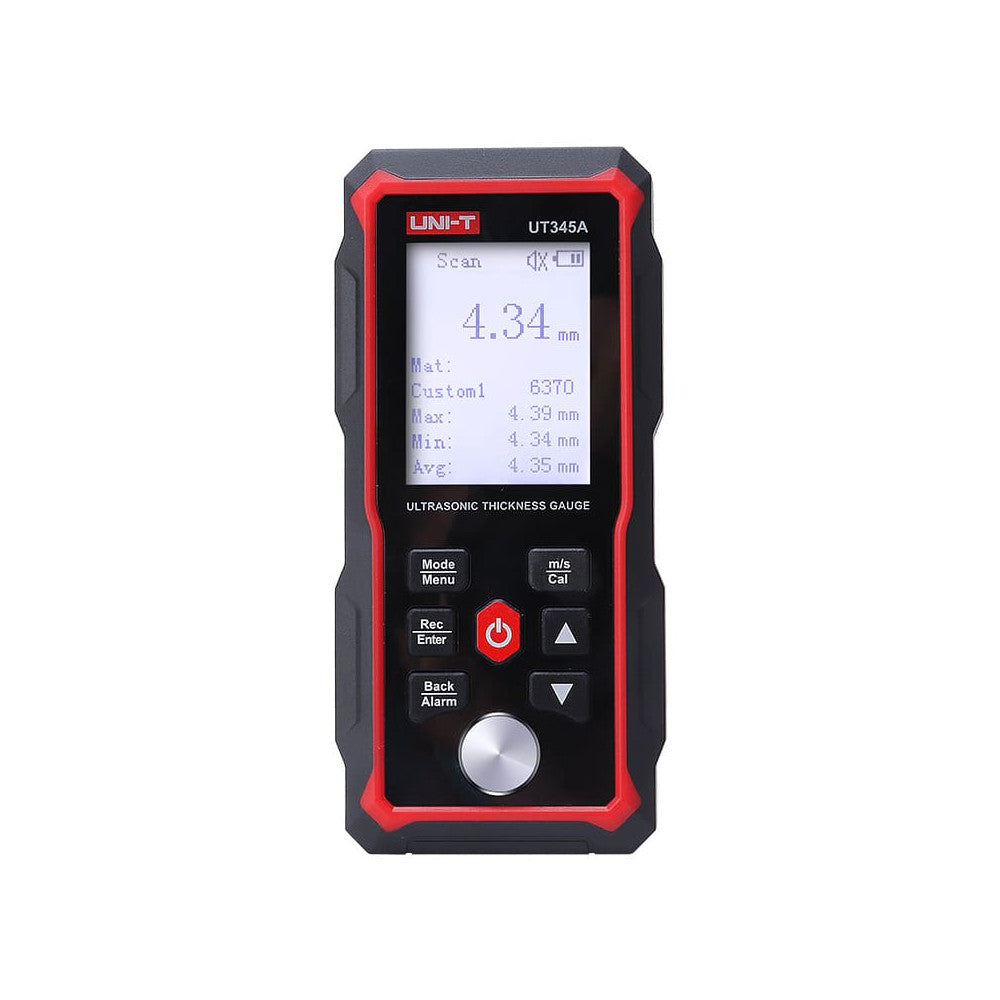

UT345A is an intelligent ultrasonic thickness gauge that adopts the latest high-performance and low-power consumption microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness and sound velocity of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion and can make accurate measurements of plates and machined parts. The gauge can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields.FEATURES: 3.7V 2000mAh lithium battery Auto calibration 300 groups of data storage High-sensitive probe Buzzer alarm Multiple materials selection Main functions: single measurement, continuous measurement, alarm, sound velocity measurement, auto-calibration.INCLUDES:1 x UT345A and 12-month warranty.SPECIFICATIONS:
| SpecificationsDisplay2.4? LCDMeasurement range1.00~300.00mmSound velocity range(1000?9999) m/sUnitmm/in |
Accuracy |
H<10mm, ±0.1mm; H?10mm, ±(1%H+0.1)mmLower limit of pipe measurement?20×3mm (steel)Data storage |
300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each groupMain functions |
Single measurement, continuous measurement, alarm, sound velocity measurement, auto calibrationCharging specificationDC 5V 1A, Type-C interfaceOperating time (full battery)About 16hOperating temperature and humidity |
0?~40? 10%RH~80%RHStorage temperature and humidity-10?~50? 10%RH~70%RHGeneral CharacteristicsBattery |
Built-in lithium battery (3.7V 2000mAh)Product colourRed and greyProduct net weight |
175gProduct size |
140×66×28.5mmStandard accessoriesType-C charging cable, ProbeStandard individual packingBox, English manual, Cloth case |
