Description
Newly released in 2021, the UT593AU meets AS/NZS electrical standards.

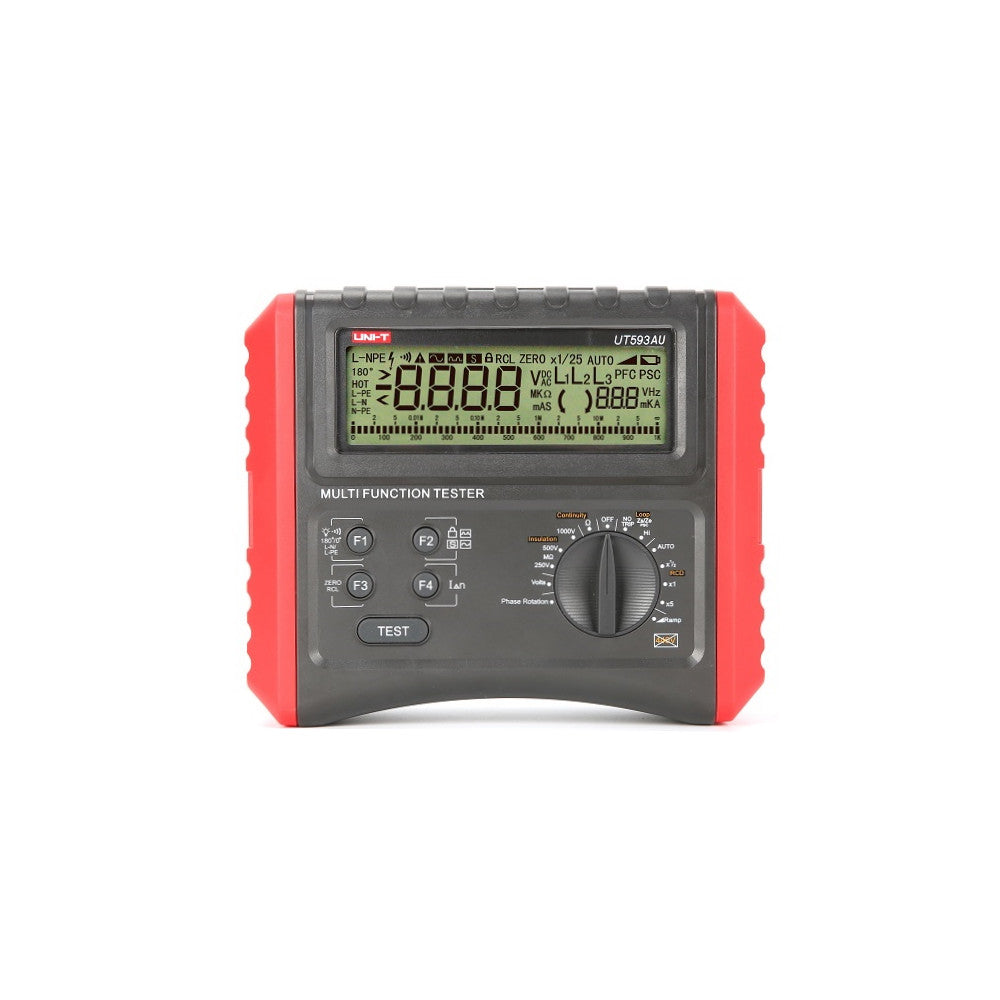

UT593AU is a multifunction digital safety testing instrument, designed with a combination of large-scale integrated analog & digital circuits and microprocessor chip. It measures RCD, line/loop impedance, continuity, insulation resistance, DC and AC voltage, phase sequence, featuring versatile functionality and high accuracy. The instrument is widely used to measure RCD, insulation and earth connections on electrical equipment, and is an ideal tool for testing, inspection, and maintenance.
The overall instrument adopts new design as well as large-scale integrated analog circuits, digital circuits, and microcomputer chip combination. It is mainly used to complete measurement of parameters including (RCD) electric leakage protector, loop circuit/line impedance, grounding continuity test, test insulation resistance, DC voltage, AC voltage, and phase sequence judgment; it has more functions, higher accuracy, and stable performance as well as it is reliable and convenient for operation. It is applicable to measuring (RCD) electric leakage protector, measuring insulation of various electrical equipment and grounding continuity test.
FEATURES:
9999-count LCD display with analogue bar
250V~1000V DC insulation resistance test
200mA earth-resistance continuity test
Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test
Lock test
Phase Rotation
RCD trip time test and the data storage with one key
Full/Half wave and count downing (30s) test mode selectable
0°/180° phase angle option to detect the fastest trigger time
Trip current test of RCD trip time X 1/2, X 1, X 5
RCD trip trigger current test
Phase sequence and missing test
AC/DC voltage auto-check and test
Connection check with status real-time display
White backlight; auto power off
Heavy Duty Cary Case.
INCLUDES: Carry case, batteries, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead, 12-month warranty.
UT593AU is a multifunction digital safety testing instrument, designed with a combination of large-scale integrated analog & digital circuits and microprocessor chip. It measures RCD, line/loop impedance, continuity, insulation resistance, DC and AC voltage, phase sequence, featuring versatile functionality and high accuracy. The instrument is widely used to measure RCD, insulation and earth connections on electrical equipment, and is an ideal tool for testing, inspection, and maintenance.
The overall instrument adopts new design as well as large-scale integrated analog circuits, digital circuits, and microcomputer chip combination. It is mainly used to complete measurement of parameters including (RCD) electric leakage protector, loop circuit/line impedance, grounding continuity test, test insulation resistance, DC voltage, AC voltage, and phase sequence judgment; it has more functions, higher accuracy, and stable performance as well as it is reliable and convenient for operation. It is applicable to measuring (RCD) electric leakage protector, measuring insulation of various electrical equipment and grounding continuity test.
FEATURES:
9999-count LCD display with analogue bar
250V~1000V DC insulation resistance test
200mA earth-resistance continuity test
Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test
Lock test
Phase Rotation
RCD trip time test and the data storage with one key
Full/Half wave and count downing (30s) test mode selectable
0°/180° phase angle option to detect the fastest trigger time
Trip current test of RCD trip time X 1/2, X 1, X 5
RCD trip trigger current test
Phase sequence and missing test
AC/DC voltage auto-check and test
Connection check with status real-time display
White backlight; auto power off
Heavy Duty Cary Case.
INCLUDES: Carry case, batteries, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead, 12-month warranty.
