Description

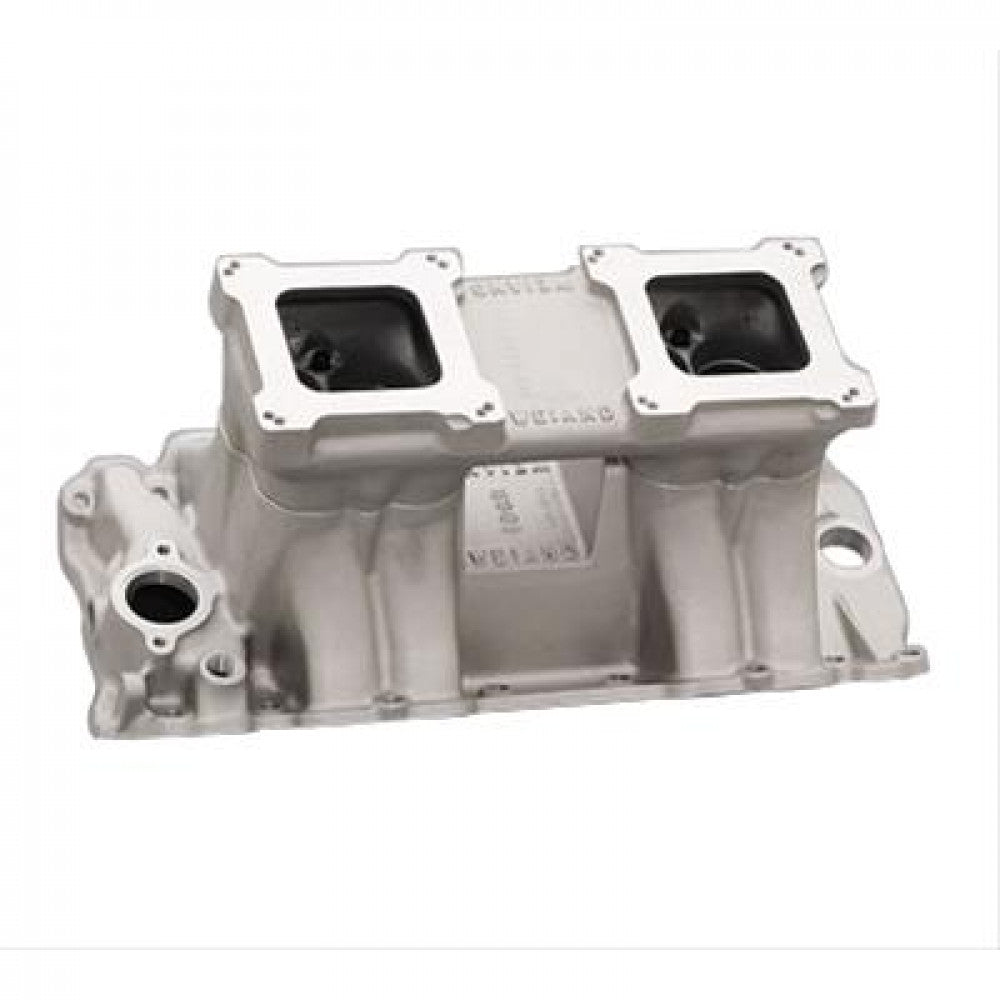

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance
marine applications where high RPM performance is required. The effective RPM range is between
2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. This manifold is designed to be used with performance oval port heads.
Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.
Weiand Nostalgia series intakes are proudly cast and machined in the USA.
We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!
If you are not satisfied with a Nostalgia Series intake, we will gladly exchange it or refund your money. Our tech service representatives can be reached at 1-866-464-6553.
Features:
2 x 4 carburetor top
Square flange carburetor mounting
2500-7800 RPM power band
Special D-shaped port runner design
Large volume plenum
Power band: 2800-8000 RPM
Height: Front 10.12", Rear 10.93"
Port Size: 1.82” height 1.60" width
Carb Flange Center-To Center 9-11/16"
Weiand Nostalgia Series Intake Manifold
Brand Weiand
Construction Cast
Emission Code 4
Engine Chevy Big Block V8
Finish Satin
Front Height 10.12 inch
Fuel System Type Carb
Manifold Type Hi-Ram
Product Type Intake Manifold
Rear Height 10.93 inch
RPM Power Band 2800-8000
